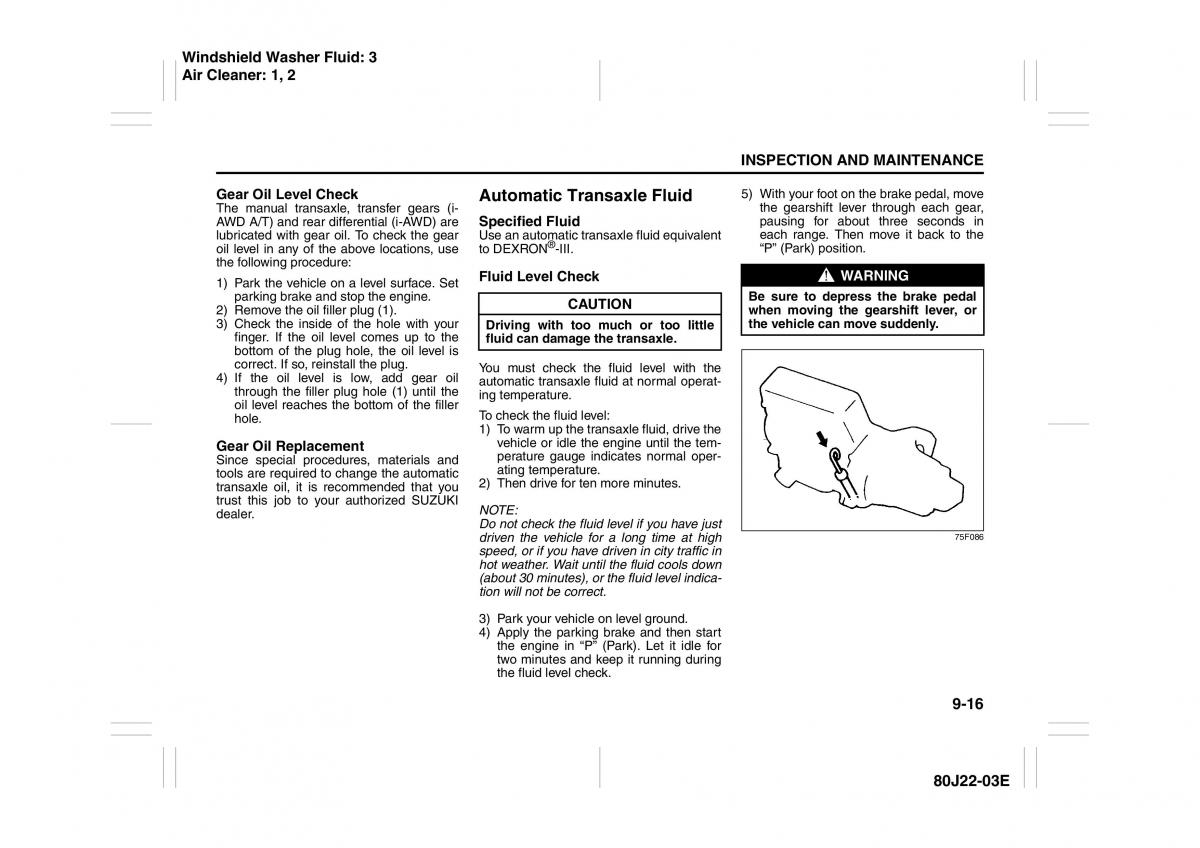

text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4, year of production 2006 - 2014:

Windshield Washer Fluid: 3 Air Cleaner: 1, 2 INSPECTION AND MAINTENANCE Gear Oil Level Check Automatic Transaxle Fluid 5) With your foot on the brake pedal, move The manual transaxle, transfer gears (i- the gearshift lever through each gear, AWD A/T) and rear differential (i-AWD) areSpecified Fluid pausing for about three seconds in lubricated with gear oil. To check the gear Use an automatic transaxle fluid equivalenteach range. Then move it back to the oil level in any of the above locations, use ® “P” (Park) position. to DEXRON -III. the following procedure: 1) Park the vehicle on a level surface. SetFluid Level Check WARNING parking brake and stop the engine. CAUTION Be sure to depress the brake pedal 2) Remove the oil filler plug (1). when moving the gearshift lever, or 3) Check the inside of the hole with your the vehicle can move suddenly. Driving with too much or too little finger. If the oil level comes up to the fluid can damage the transaxle. bottom of the plug hole, the oil level is correct. If so, reinstall the plug. You must check the fluid level with the 4) If the oil level is low, add gear oil automatic transaxle fluid at normal operat- through the filler plug hole (1) until the oil level reaches the bottom of the filler ing temperature. hole. To check the fluid level: 1) To warm up the transaxle fluid, drive the Gear Oil Replacement vehicle or idle the engine until the tem- perature gauge indicates normal oper- Since special procedures, materials and tools are required to change the automatic ating temperature. 2) Then drive for ten more minutes. transaxle oil, it is recommended that you trust this job to your authorized SUZUKI dealer. NOTE: Do not check the fluid level if you have just driven the vehicle for a long time at high 75F086 speed, or if you have driven in city traffic in hot weather. Wait until the fluid cools down (about 30 minutes), or the fluid level indica- tion will not be correct. 3) Park your vehicle on level ground. 4) Apply the parking brake and then start the engine in “P” (Park). Let it idle for two minutes and keep it running during the fluid level check. 9-16 80J22-03E
