text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4, year of production 2006 - 2014:

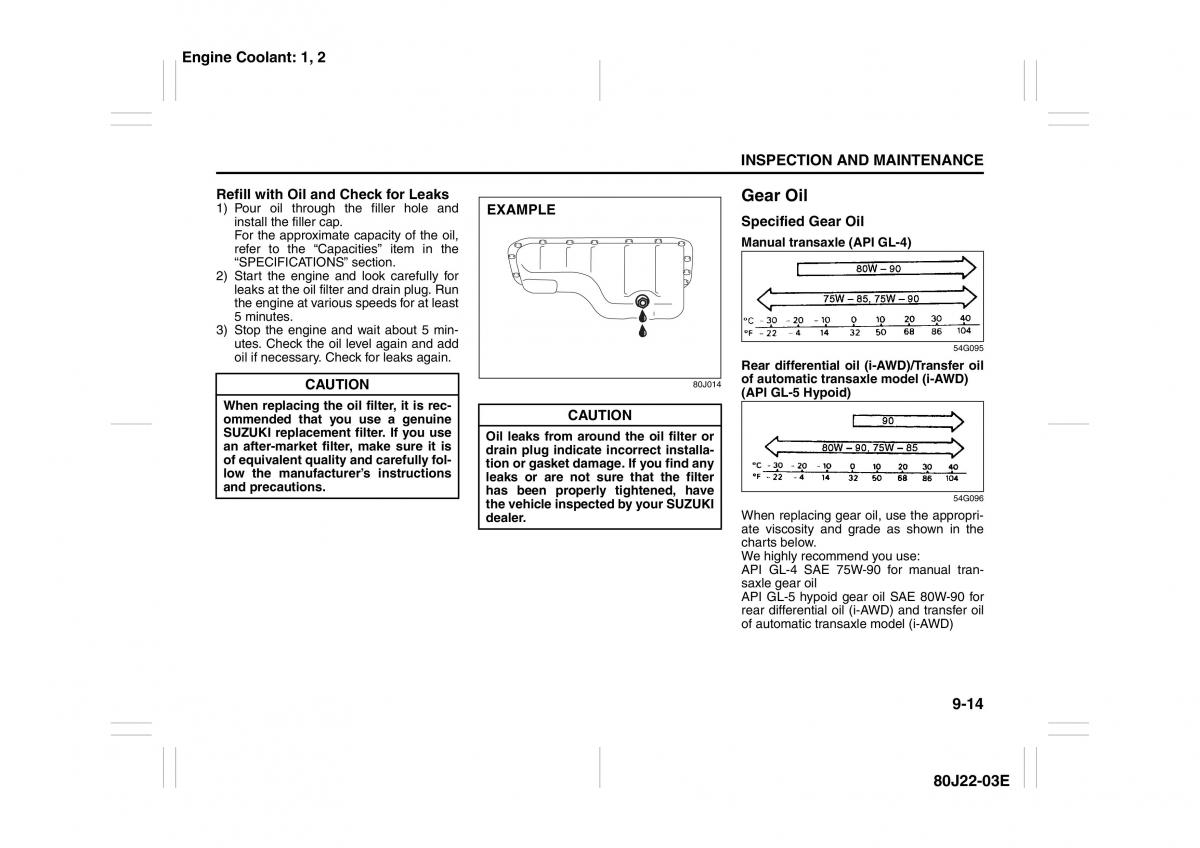

Engine Coolant: 1, 2 INSPECTION AND MAINTENANCE Refill with Oil and Check for Leaks Gear Oil 1) Pour oil through the filler hole and EXAMPLE install the filler cap. Specified Gear Oil For the approximate capacity of the oil, Manual transaxle (API GL-4) refer to the “Capacities” item in the “SPECIFICATIONS” section. 2) Start the engine and look carefully for leaks at the oil filter and drain plug. Run the engine at various speeds for at least 5 minutes. 3) Stop the engine and wait about 5 min- utes. Check the oil level again and add 54G095 oil if necessary. Check for leaks again. Rear differential oil (i-AWD)/Transfer oil CAUTION 80J014 of automatic transaxle model (i-AWD) (API GL-5 Hypoid) When replacing the oil filter, it is rec- CAUTION ommended that you use a genuine SUZUKI replacement filter. If you use Oil leaks from around the oil filter or an after-market filter, make sure it is drain plug indicate incorrect installa- of equivalent quality and carefully fol- tion or gasket damage. If you find any low the manufacturer’s instructions and precautions. leaks or are not sure that the filter has been properly tightened, have 54G096 the vehicle inspected by your SUZUKI dealer. When replacing gear oil, use the appropri- ate viscosity and grade as shown in the charts below. We highly recommend you use: API GL-4 SAE 75W-90 for manual tran- saxle gear oil API GL-5 hypoid gear oil SAE 80W-90 for rear differential oil (i-AWD) and transfer oil of automatic transaxle model (i-AWD) 9-14 80J22-03E
