text version of content this owner's manual page from owners manual to the vehicle Suzuki Vitara, year of production 2015:

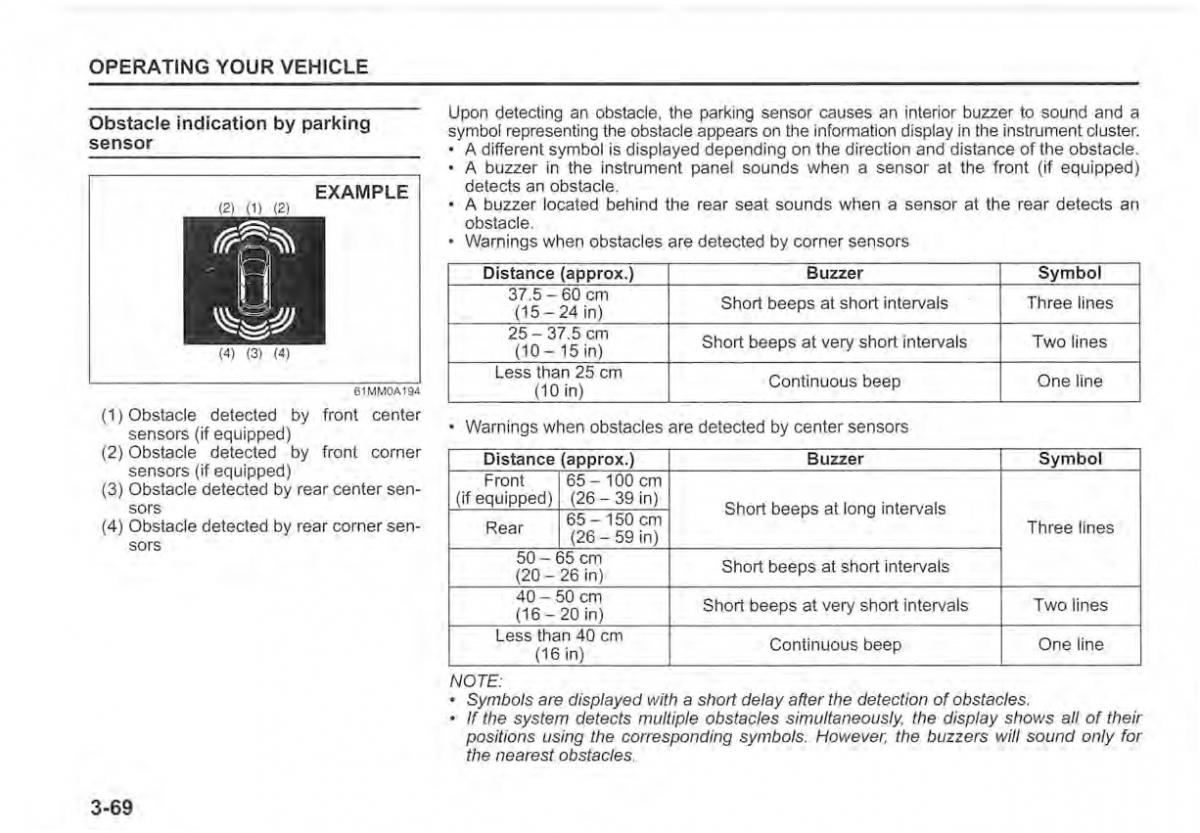

OPERATING YOUR VEHICLE Obstacle indication by parking Upon detecting an obstacle, the parking sensor causes an interior buzzer to sound and a sensor symbol representing the obstacle appears on the information display in the instrument cluster. • A different symbol is displayed depending on the direction and distance of the obstacle. • A buzzer in the instrument panel sounds when a sensor at the front (if equipped) detects EXAMPLE an obstacle. • A buzzer located behind the rear seat sounds when a sensor at the rear detects an obstacle. • Warnings when obstacles are detected by corner sensors Distance (approx.) Buzzer Symbol 37.5 - 60 cm Short beeps at short intervals Three lines (15-24in) 25 - 37.5 cm Short beeps at very short intervals Two lines (10-15in) Less than 25 cm Continuous beep One line 61MMOA194 (10 in) (1) Obstacle detected by front center sensors (if equipped) • Warnings when obstacles are detected by center sensors (2) Obstacle detected by front corner Distance (approx.) Buzzer Symbol sensors (if equipped) Front 65 -100 cm (3) Obstacle detected by rear center sen- (if equipped) (26 - 39 in) sors 65 - 150 cm Short beeps at long intervals (4) Obstacle detected by rear corner sen- Rear (26 - 59 in) Three lines sors 50 - 65 cm (20 - 26 in) Short beeps at short intervals 40 - 50 cm Short beeps at very short intervals Two lines (16-20 in) Less than 40 cm Continuous beep One line (16 in) NOTE: • Symbols are displayed with a short delay after the detection of obstacles. • If the system detects multiple obstacles simultaneously, the display shows all of their positions using the corresponding symbols. However, the buzzers will sound only for the nearest obstacles. 3-69
