from owners manual to the vehicle Fiat Punto, year of production 1999 - 2011:

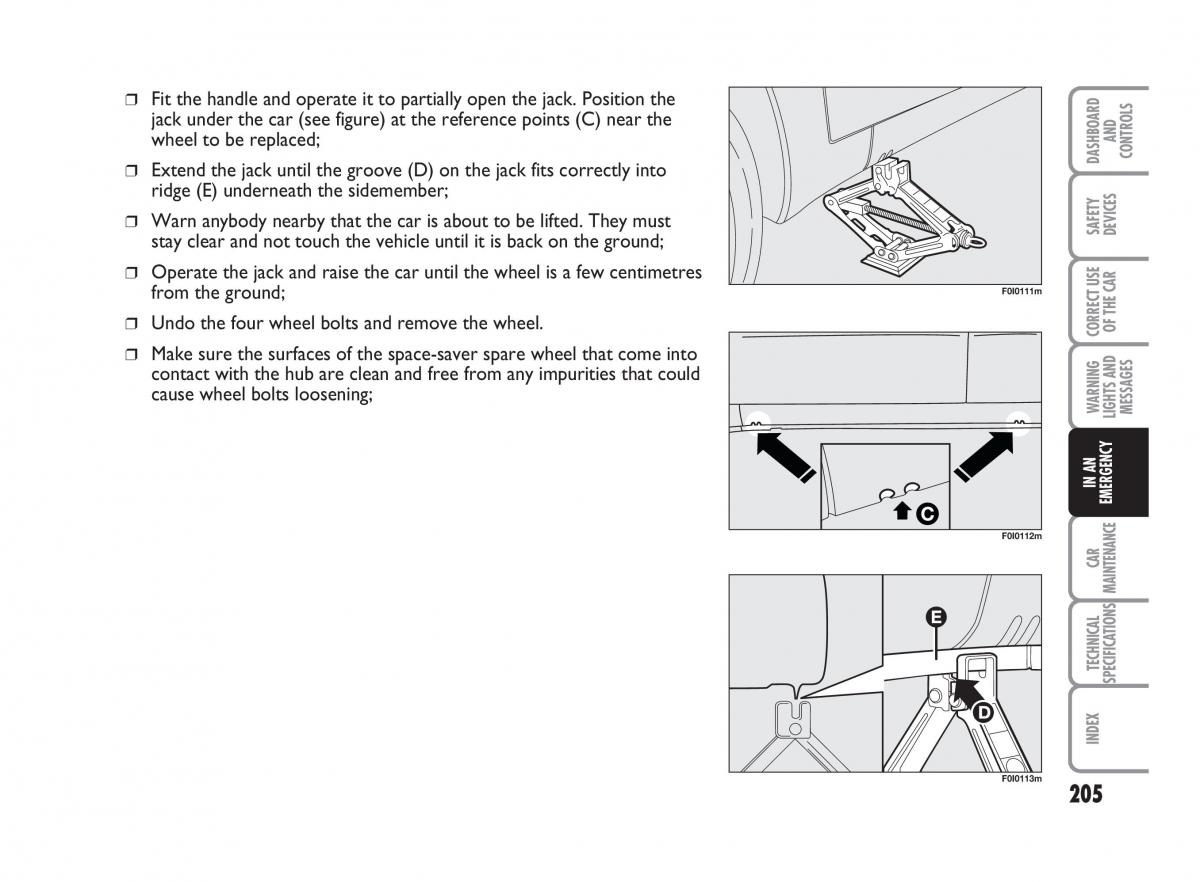

❒ Fit the handle and operate it to partially open the jack. Position the
jack under the car (see figure) at the reference points (C) near the
wheel to be replaced; AND
DASHBOARDCONTROLS
❒ Extend the jack until the groove (D) on the jack fits correctly into
ridge (E) underneath the sidemember;
❒ Warn anybody nearby that the car is about to be lifted. They must SAFETYDEVICES
stay clear and not touch the vehicle until it is back on the ground;
❒ Operate the jack and raise the car until the wheel is a few centimetres
from the ground; F0I0111m
❒ Undo the four wheel bolts and remove the wheel. CORRECT USE OF THE CAR
❒ Make sure the surfaces of the space-saver spare wheel that come into
contact with the hub are clean and free from any impurities that could
cause wheel bolts loosening; ARNING
W LIGHTS ANDMESSAGES
IN AN
EMERGENCY
F0I0112m
CAR
MAINTENANCE
TIONS
TECHNICALSPECIFICA
D
INDEX
F0I0113m
205
