text version of content this owner's manual page from owners manual to the vehicle Fiat Punto, year of production 1999 - 2011:

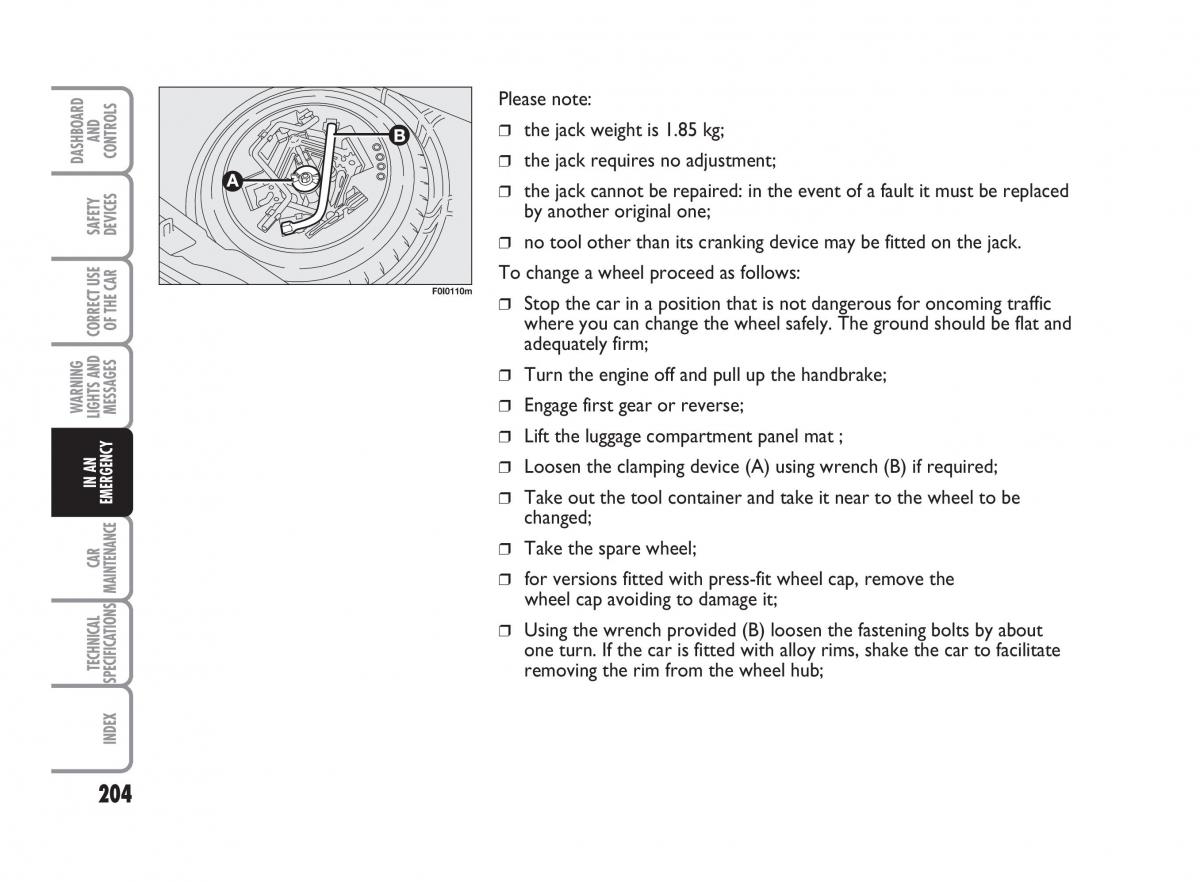

Please note:
AND ❒ the jack weight is 1.85 kg;
DASHBOARDCONTROLS ❒ the jack requires no adjustment;
❒ the jack cannot be repaired: in the event of a fault it must be replaced
by another original one;
SAFETYDEVICES ❒ no tool other than its cranking device may be fitted on the jack.
To change a wheel proceed as follows:
F0I0110m ❒ Stop the car in a position that is not dangerous for oncoming traffic
CORRECT USEOF THE CAR where you can change the wheel safely. The ground should be flat and
adequately firm;
❒ Turn the engine off and pull up the handbrake;
ARNING ❒ Engage first gear or reverse;
W LIGHTS ANDMESSAGES
❒ Lift the luggage compartment panel mat ;
IN AN ❒ Loosen the clamping device (A) using wrench (B) if required;
EMERGENCY ❒ Take out the tool container and take it near to the wheel to be
changed;
CAR ❒ Take the spare wheel;
MAINTENANCE ❒ for versions fitted with press-fit wheel cap, remove the
wheel cap avoiding to damage it;
TIONS ❒ Using the wrench provided (B) loosen the fastening bolts by about
TECHNICAL one turn. If the car is fitted with alloy rims, shake the car to facilitate
SPECIFICA removing the rim from the wheel hub;
INDEX
204
