text version of content this owner's manual page from owners manual to the vehicle Volvo XC70, year of production 1999 - 2007:

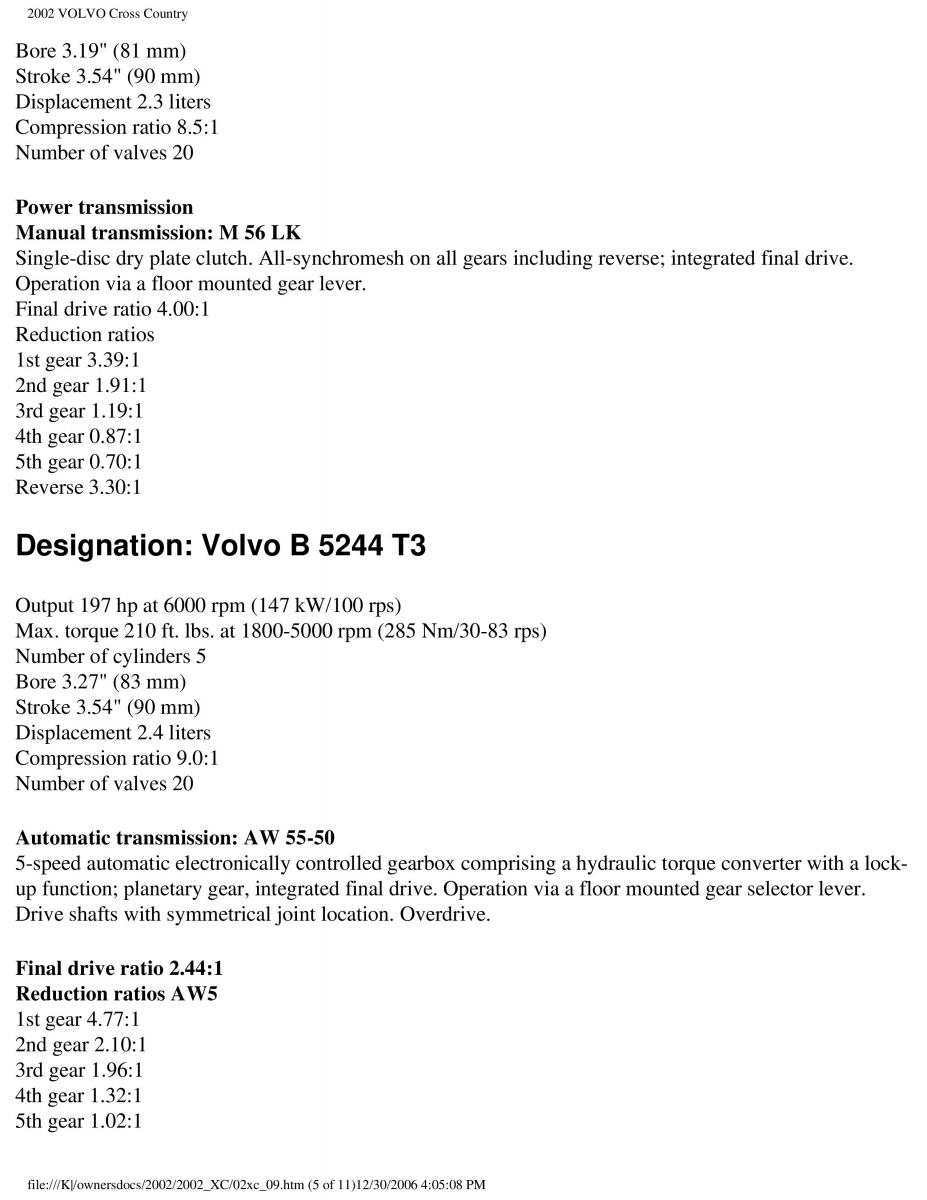

2002 VOLVO Cross Country Bore 3.19" (81 mm) Stroke 3.54" (90 mm) Displacement 2.3 liters Compression ratio 8.5:1 Number of valves 20 Power transmission Manual transmission: M 56 LK Single-disc dry plate clutch. All-synchromesh on all gears including reverse; integrated final drive. Operation via a floor mounted gear lever. Final drive ratio 4.00:1 Reduction ratios 1st gear 3.39:1 2nd gear 1.91:1 3rd gear 1.19:1 4th gear 0.87:1 5th gear 0.70:1 Reverse 3.30:1 Designation: Volvo B 5244 T3 Output 197 hp at 6000 rpm (147 kW/100 rps) Max. torque 210 ft. lbs. at 1800-5000 rpm (285 Nm/30-83 rps) Number of cylinders 5 Bore 3.27" (83 mm) Stroke 3.54" (90 mm) Displacement 2.4 liters Compression ratio 9.0:1 Number of valves 20 Automatic transmission: AW 55-50 5-speed automatic electronically controlled gearbox comprising a hydraulic torque converter with a lock- up function; planetary gear, integrated final drive. Operation via a floor mounted gear selector lever. Drive shafts with symmetrical joint location. Overdrive. Final drive ratio 2.44:1 Reduction ratios AW5 1st gear 4.77:1 2nd gear 2.10:1 3rd gear 1.96:1 4th gear 1.32:1 5th gear 1.02:1 file:///K|/ownersdocs/2002/2002_XC/02xc_09.htm (5 of 11)12/30/2006 4:05:08 PM
