owners manual Volvo XC70

owners manual Volvo XC70 - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 - Volvo XC70 Cross Country owners manual EN

Document: pdf (3.61 MB) 256 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Volvo XC70, year of production 1999 - 2007:

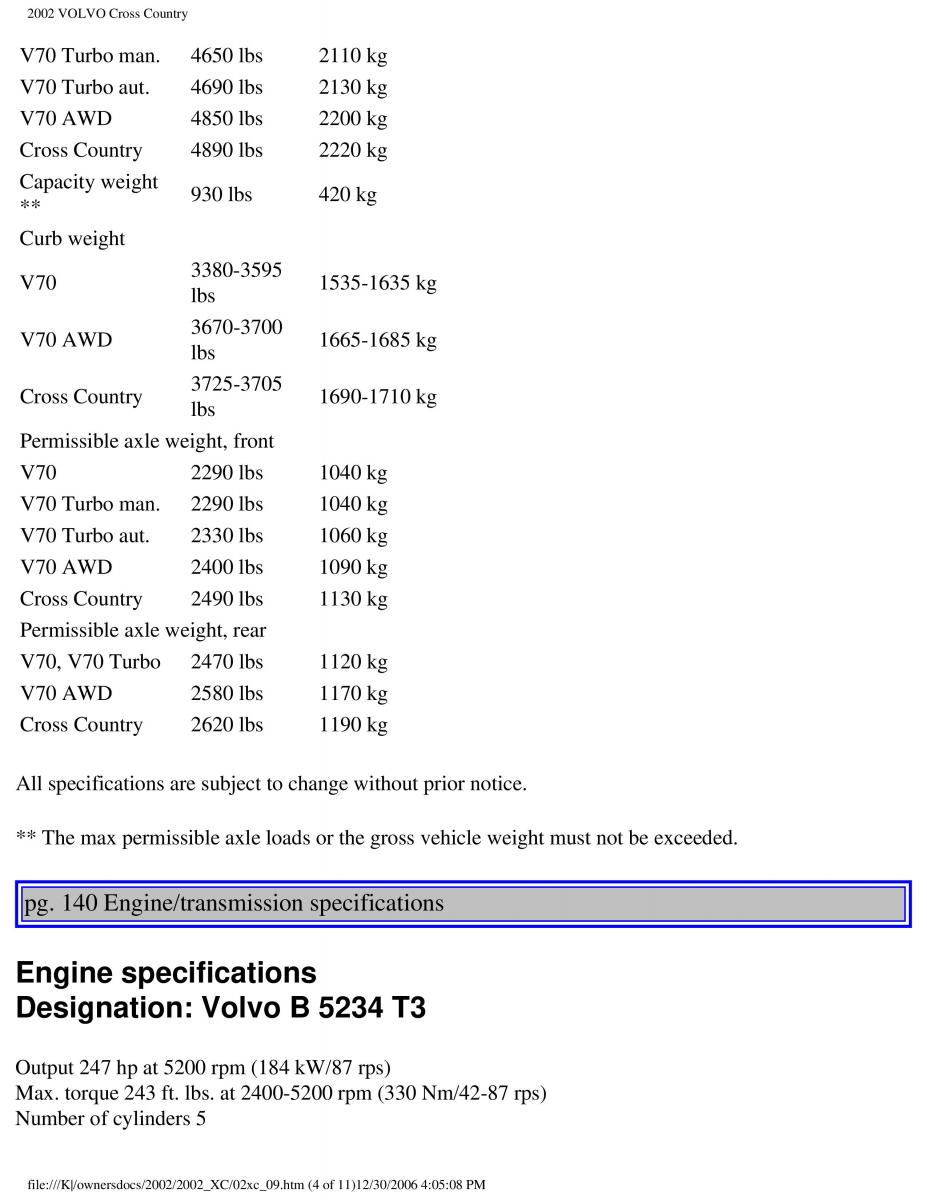

2002 VOLVO Cross Country V70 Turbo man. 4650 lbs 2110 kg V70 Turbo aut. 4690 lbs 2130 kg V70 AWD 4850 lbs 2200 kg Cross Country 4890 lbs 2220 kg Capacity weight 930 lbs 420 kg ** Curb weight V70 3380-3595 1535-1635 kg lbs V70 AWD 3670-3700 1665-1685 kg lbs Cross Country 3725-3705 1690-1710 kg lbs Permissible axle weight, front V70 2290 lbs 1040 kg V70 Turbo man. 2290 lbs 1040 kg V70 Turbo aut. 2330 lbs 1060 kg V70 AWD 2400 lbs 1090 kg Cross Country 2490 lbs 1130 kg Permissible axle weight, rear V70, V70 Turbo 2470 lbs 1120 kg V70 AWD 2580 lbs 1170 kg Cross Country 2620 lbs 1190 kg All specifications are subject to change without prior notice. ** The max permissible axle loads or the gross vehicle weight must not be exceeded. pg. 140 Engine/transmission specifications Engine specifications Designation: Volvo B 5234 T3 Output 247 hp at 5200 rpm (184 kW/87 rps) Max. torque 243 ft. lbs. at 2400-5200 rpm (330 Nm/42-87 rps) Number of cylinders 5 file:///K|/ownersdocs/2002/2002_XC/02xc_09.htm (4 of 11)12/30/2006 4:05:08 PM
