text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156 GTA, year of production 1997 - 2006:

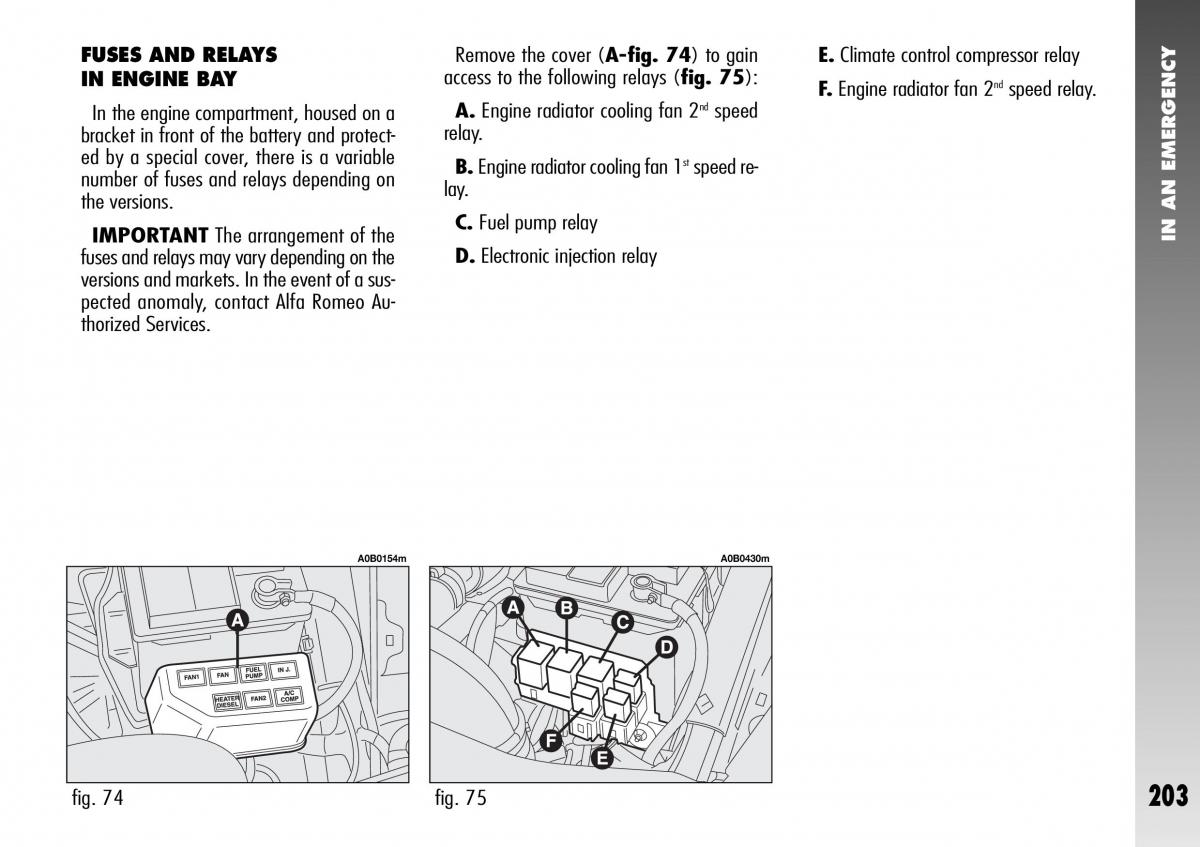

FUSES AND RELAYS Remove the cover (A-fig. 74) to gain E. Climate control compressor relay IN ENGINE BAY access to the following relays (fig. 75): F. Engine radiator fan 2nd speed relay. nd In the engine compartment, housed on a A. Engine radiator cooling fan 2speed bracket in front of the battery and protect- relay. ed by a special cover, there is a variable st B. Engine radiator cooling fan 1speed re- number of fuses and relays depending on the versions. lay. C. Fuel pump relay IMPORTANTThe arrangement of the IN AN EMERGENCY fuses and relays may vary depending on the D. Electronic injection relay versions and markets. In the event of a sus- pected anomaly, contact Alfa Romeo Au- thorized Services. A0B0154m A0B0430m fig. 74 fig. 75 203
