text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156 GTA, year of production 1997 - 2006:

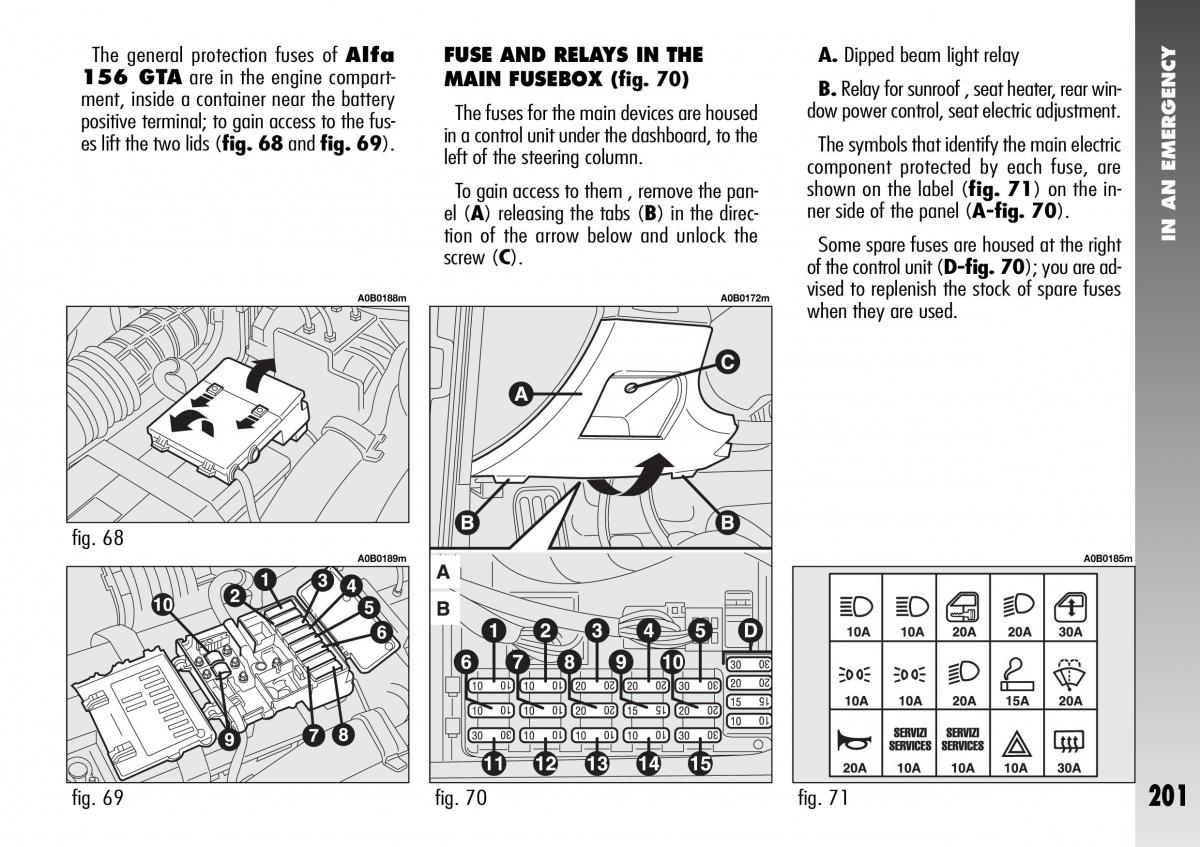

The general protection fuses of Alfa A. Dipped beam light relay FUSE AND RELAYS IN THE 156 GTAare in the engine compart- MAIN FUSEBOX (fig. 70) , rear win-B. Relay for sunroof , seat heater ment, inside a container near the battery dow power control, seat electric adjustment. positive terminal; to gain access to the fus- The fuses for the main devices are housed es lift the two lids (fig. 68 and fig. 69 ). in a control unit under the dashboard, to the The symbols that identify the main electric left of the steering column. component protected by each fuse, are To gain access to them , remove the pan- shown on the label (fig. 71) on the in- el (A) releasing the tabs (B) in the direc- ner side of the panel (A-fig. 70 ). tion of the arrow below and unlock the IN AN EMERGENCY screw (C). Some spare fuses are housed at the right of the control unit (D-fig. 70); you are ad- A0B0188m A0B0172m vised to replenish the stock of spare fuses when they are used. fig. 68 A0B0189m A0B0185m fig. 69 fig. 70 fig. 71 201
