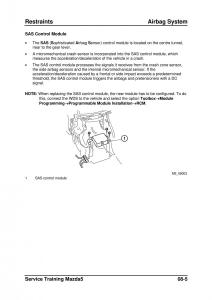

Restraints Airbag System
SAS Control Module
• The SAS (Sophisticated Airbag Sensor) control module is located on the centre tunnel,
near to the gear lever.
• A micromechanical crash sensor is incorporated into the SAS control module, which
measures the acceleration/deceleration of the vehicle in a crash.
• The SAS control module processes the signals it receives from the crash zone sensor,
the side airbag sensors and the internal micromechanical sensor. If the
acceleration/deceleration caused by a frontal or side impact exceeds a predetermined
threshold, the SAS control module triggers the airbags and pretensioners with a DC
signal.
NOTE: When replacing the SAS control module, the new module has to be configured. To do
this, connect the WDS to the vehicle and select the option Toolbox→Module
Programming→Programmable Module Installation→RCM.
M5_08003
1 SAS control module
Service Training Mazda5 08-5
