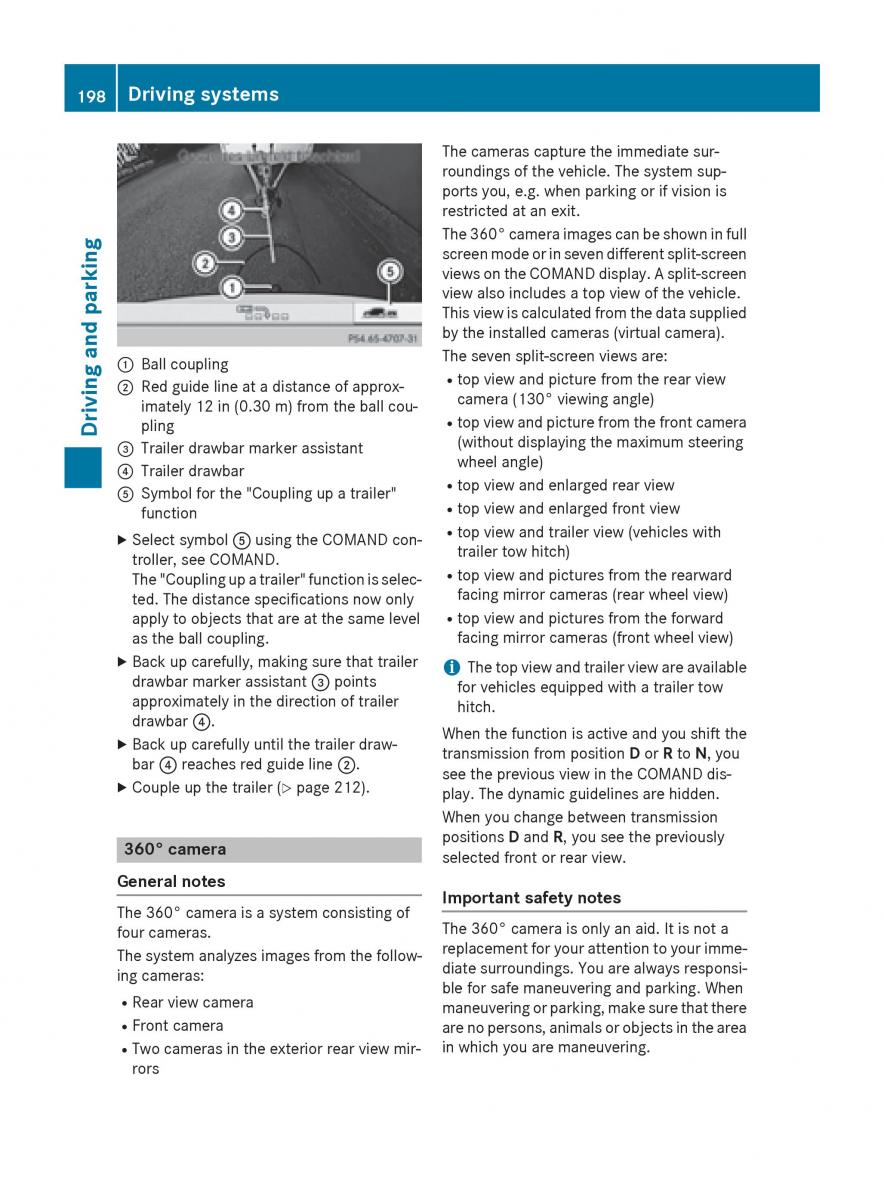

198 Driving systems The cameras capture the immediate sur- roundings of the vehicle. The system sup- ports you, e.g. when parking or if vision is restricted at an exit. The360°cameraimagescanbeshowninfull screenmodeorinsevendifferentsplit-screen viewsontheCOMANDdisplay.Asplit-screen view also includes a top view of the vehicle. parking Thisviewiscalculatedfromthedatasupplied by the installed cameras (virtual camera). and The seven split-screen views are: :Ballcoupling Rtopviewandpicturefromtherearview ;Redguidelineatadistanceofapprox- ing camera (130° viewing angle) imately 12 in (0.30 m) from the ball cou- Rtopviewandpicturefromthefrontcamera pling Driv (without displaying the maximum steering =Trailer drawbar marker assistant wheel angle) ?Trailer drawbar Rtopviewandenlargedrearview ASymbolforthe"Couplingupatrailer" Rtopviewandenlargedfront view function Rtopviewandtrailer view (vehicles with XSelect symbol Ausing the COMAND con- trailer tow hitch) troller, see COMAND. Rtopviewandpicturesfromtherearward The"Couplingupatrailer"functionisselec- facing mirror cameras (rear wheel view) ted. The distance specifications now only Rtopviewandpicturesfromtheforward apply to objects that are at the same level as the ball coupling. facing mirror cameras (front wheel view) XBackupcarefully, making sure that trailer iThetopviewandtrailerviewareavailable drawbar marker assistant = points for vehicles equipped with a trailer tow approximately in the direction of trailer hitch. drawbar ?. Whenthefunction is active and you shift the XBackupcarefully until the trailer draw- transmission from position D or R to N, you bar ?reachesredguideline ;. see the previous view in the COMAND dis- XCoupleupthetrailer (Y page 212). play. The dynamic guidelines are hidden. Whenyouchangebetweentransmission positions D and R, you see the previously 360°camera selected front or rear view. General notes Important safety notes The 360° camera is a system consisting of The 360° camera is only an aid. It is not a four cameras. replacementforyourattentiontoyourimme- Thesystemanalyzesimagesfromthefollow- diate surroundings. You are always responsi- ing cameras: ble for safe maneuvering and parking. When RRearviewcamera maneuveringorparking,makesurethatthere RFrontcamera arenopersons,animalsorobjectsinthearea RTwocamerasintheexteriorrear view mir-in which you are maneuvering. rors
