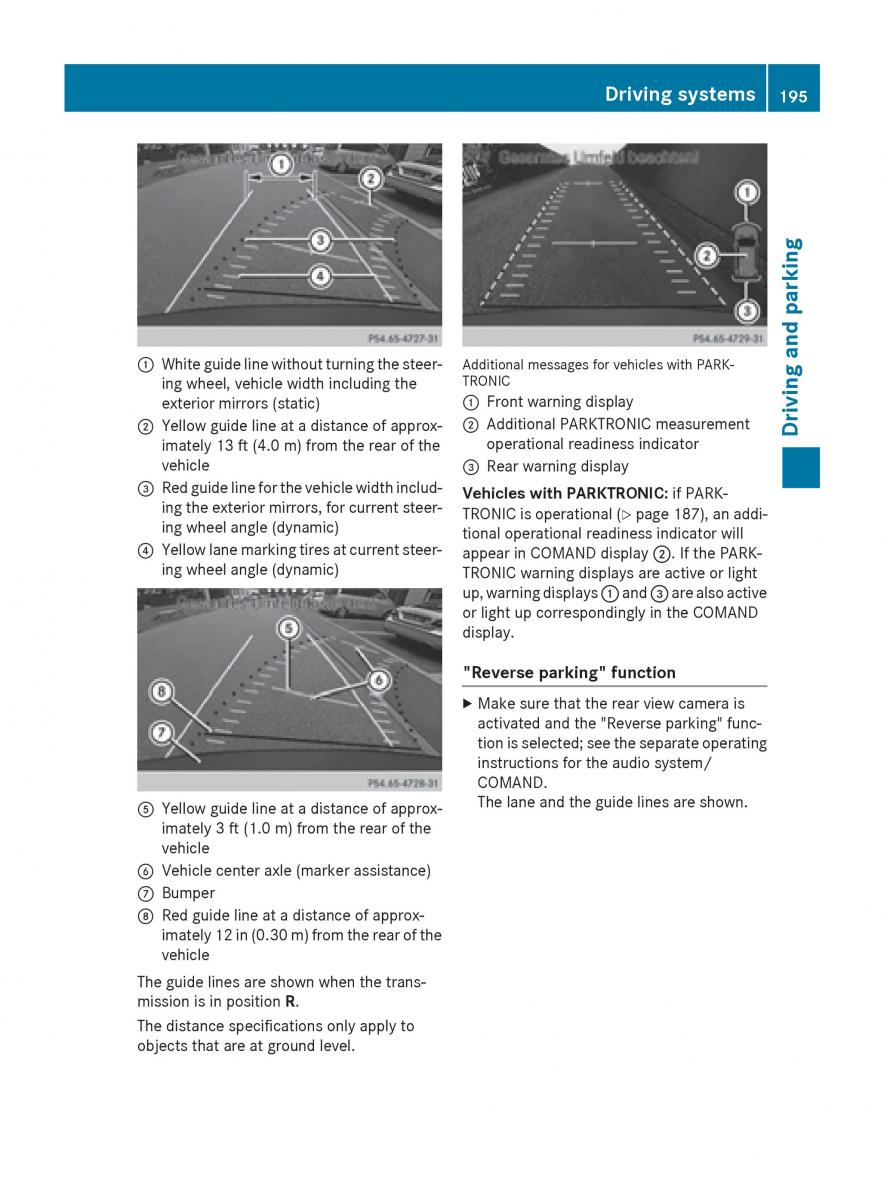

Driving systems 195
parking
and
:Whiteguidelinewithoutturningthesteer-Additional messages for vehicles with PARK-
TRONIC
ing wheel, vehicle width including the
:Frontwarningdisplay
exterior mirrors (static)
;Additional PARKTRONICmeasurement
;Yellowguidelineatadistanceofapprox-
Driving
operational readiness indicator
imately 13 ft (4.0 m) from the rear of the
vehicle =Rearwarningdisplay
=Redguidelineforthevehiclewidthinclud-
Vehicles with PARKTRONIC: if PARK-
ing the exterior mirrors, for current steer-
TRONICisoperational(Ypage187),anaddi-
ing wheel angle (dynamic)
tional operational readiness indicator will
?Yellowlanemarkingtiresatcurrentsteer-
appear in COMAND display ;. If the PARK-
ing wheel angle (dynamic)
TRONICwarningdisplays are active or light
up,warningdisplays:and=arealsoactive
or light up correspondingly in the COMAND
display.
"Reverseparking"function
XMakesurethattherearviewcamerais
activated and the "Reverse parking" func-
tionisselected;seetheseparateoperating
instructions for the audio system/
COMAND.
The lane and the guide lines are shown.
AYellowguidelineatadistanceofapprox-
imately 3 ft (1.0 m) from the rear of the
vehicle
BVehiclecenteraxle(markerassistance)
CBumper
DRedguidelineatadistanceofapprox-
imately12in(0.30m)fromtherearofthe
vehicle
The guide lines are shown when the trans-
mission is in position R.
The distance specifications only apply to
objects that are at ground level.
Z
