text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

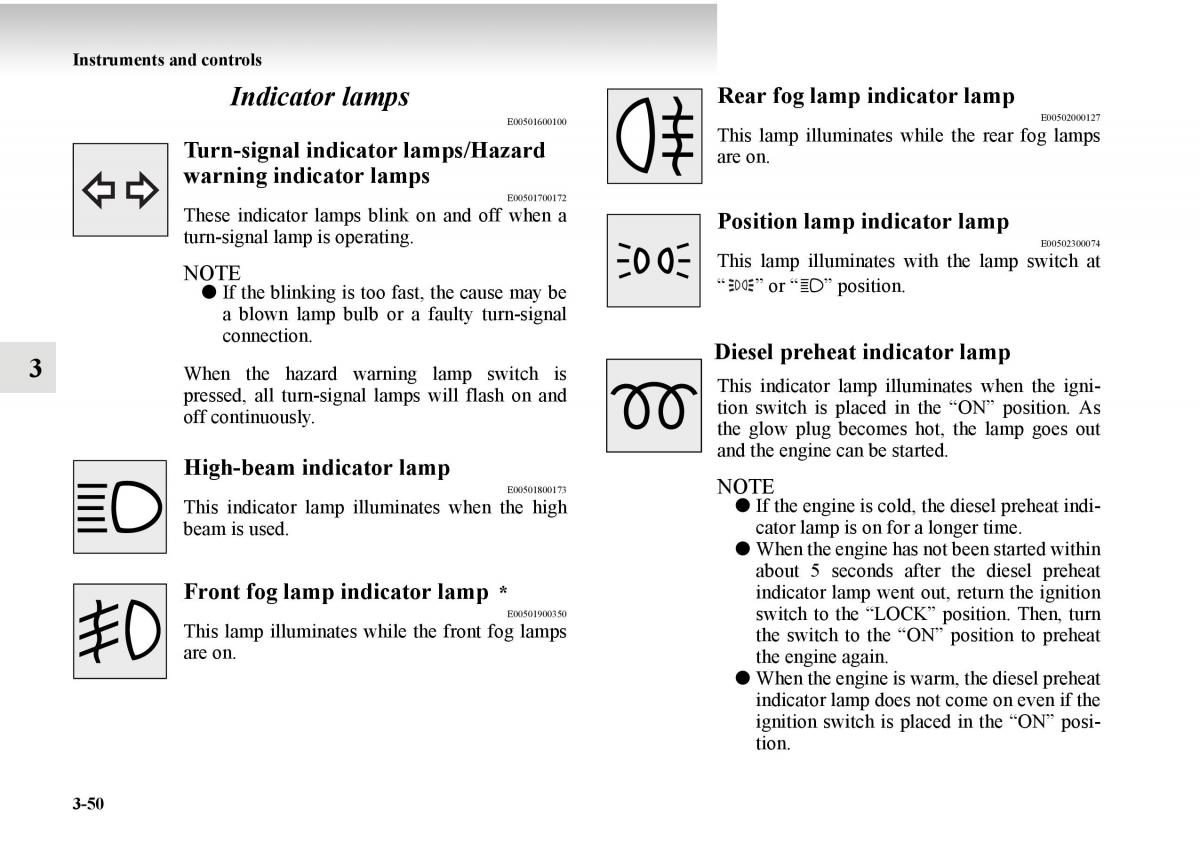

Instruments and controls Indicator lamps Rear fog lamp indicator lamp E00501600100 E00502000127 Turn-signal indicator lamps/Hazard This lamp illuminates while the rear fog lamps warning indicator lamps are on. E00501700172 These indicator lamps blink on and off when a Position lamp indicator lamp turn-signal lamp is operating. E00502300074 NOTE This lamp illuminates with the lamp switch at ●If the blinking is too fast, the cause may be “ ” or “ ” position. a blown lamp bulb or a faulty turn-signal connection. Diesel preheat indicator lamp 3 When the hazard warning lamp switch is pressed, all turn-signal lamps will flash on and This indicator lamp illuminates when the igni- off continuously. tion switch is placed in the “ON” position. As the glow plug becomes hot, the lamp goes out High-beam indicator lamp and the engine can be started. E00501800173 NOTE This indicator lamp illuminates when the high ●If the engine is cold, the diesel preheat indi- beam is used. cator lamp is on for a longer time. ●When the engine has not been started within about 5 seconds after the diesel preheat Front fog lamp indicator lamp * indicator lamp went out, return the ignition E00501900350 switch to the “LOCK” position. Then, turn This lamp illuminates while the front fog lamps the switch to the “ON” position to preheat are on. the engine again. ●When the engine is warm, the diesel preheat indicator lamp does not come on even if the ignition switch is placed in the “ON” posi- tion. 3-50
