text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

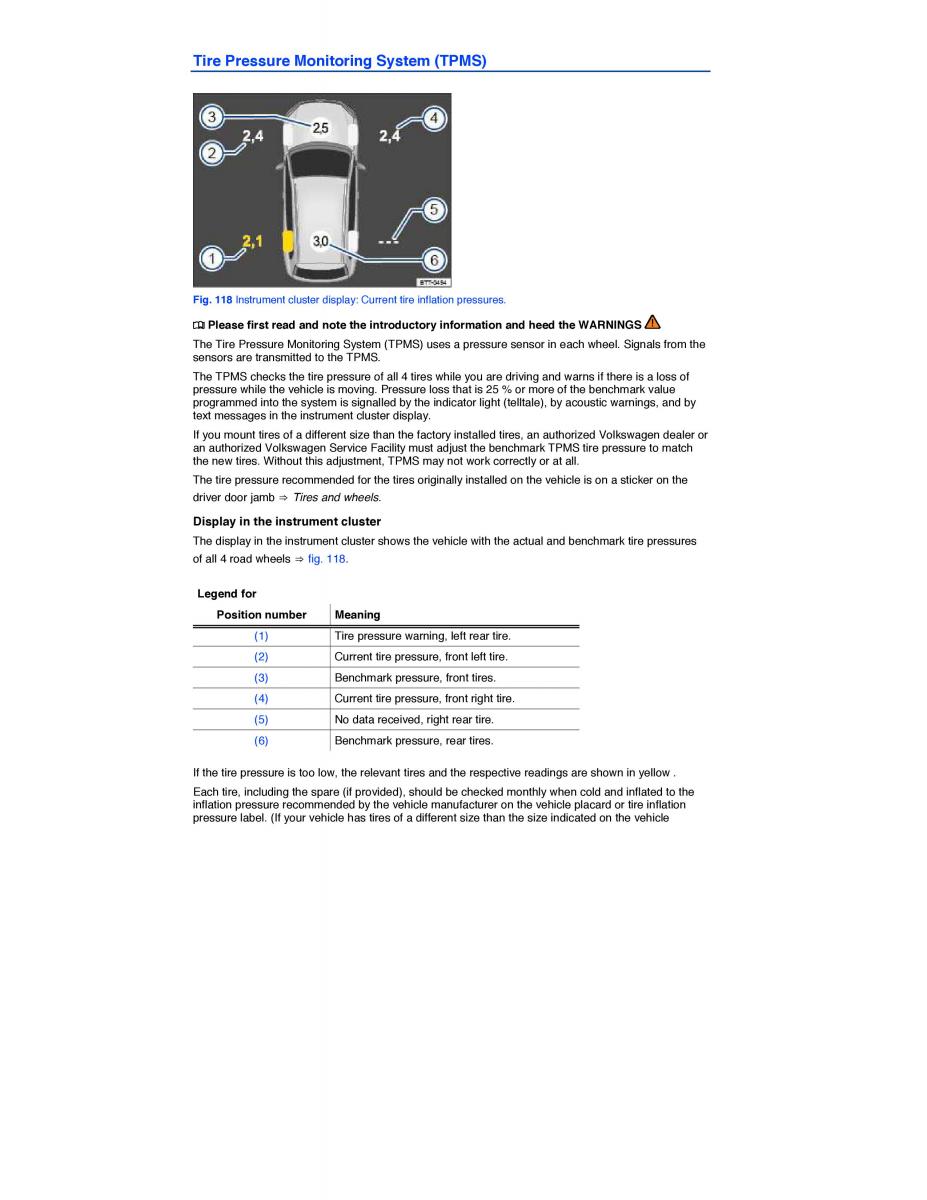

Tire Pressure Monitoring System (TPMS) Fig. 118 Instrument cluster display: Current tire inflation pressures. ¤ Please first read and note the introductory information and heed the WARNINGS The Tire Pressure Monitoring System (TPMS) uses a pressure sensor in each wheel. Signals from the sensors are transmitted to the TPMS. The TPMS checks the tire pressure of all 4 tires while you are driving and warns if there is a loss of pressure while the vehicle is moving. Pressure loss that is 25 % or more of the benchmark value programmed into the system is signalled by the indicator light (telltale), by acoustic warnings, and by text messages in the instrument cluster display. If you mount tires of a different size than the factory installed tires, an authorized Volkswagen dealer or an authorized Volkswagen Service Facility must adjust the benchmark TPMS tire pressure to match the new tires. Without this adjustment, TPMS may not work correctly or at all. The tire pressure recommended for the tires originally installed on the vehicle is on a sticker on the driver door jamb ⇒ Tires and wheels. Display in the instrument cluster The display in the instrument cluster shows the vehicle with the actual and benchmark tire pressures of all 4 road wheels ⇒ fig. 118. Legend for Position number Meaning (1) Tire pressure warning, left rear tire. (2) Current tire pressure, front left tire. (3) Benchmark pressure, front tires. (4) Current tire pressure, front right tire. (5) No data received, right rear tire. (6) Benchmark pressure, rear tires. If the tire pressure is too low, the relevant tires and the respective readings are shown in yellow . Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle
