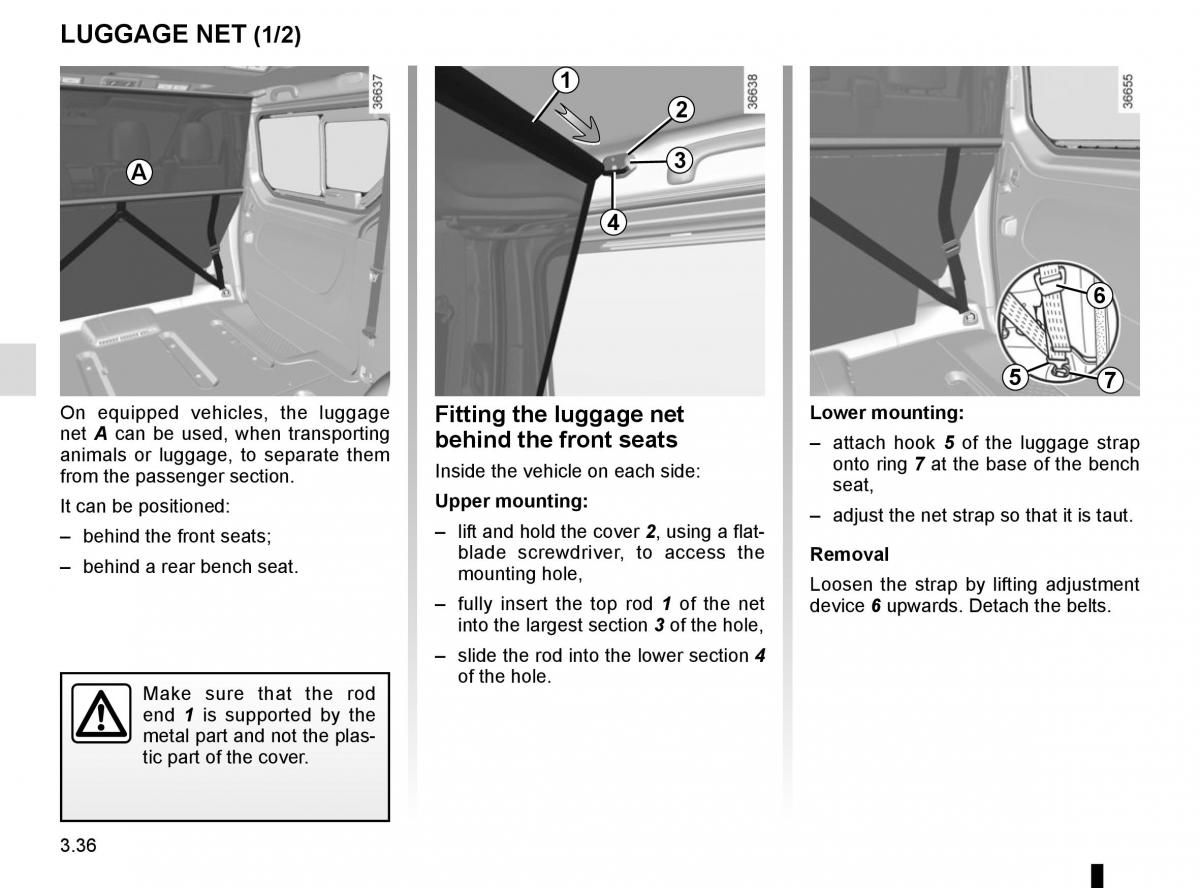

LUGGAGE NET (1/2)
1
2
A 3
4
6
5 7
On equipped vehicles, the luggageLower mounting:
Fitting the luggage net
net A can be used, when transporting
behind the front seats – attach 5hook of the luggage strap
animals or luggage, to separate them onto ring 7 at the base of the bench
from the passenger section.Inside the vehicle on each side:seat,
It can be positioned: Upper mounting: – adjust the net strap so that it is taut.
– behind the front seats;– lift and hold the cover 2, using a flat-
blade screwdriver, to access the
– behind a rear bench seat.mounting hole, Removal
Loosen the strap by lifting adjustment
– fully insert the top rod 1 of the net
into the largest section 3 of the hole,device 6 upwards. Detach the belts.
– slide the rod into the lower section 4
of the hole.
Make sure that the rod
end 1 is supported by the
metal part and not the plas-
tic part of the cover.
3.36
