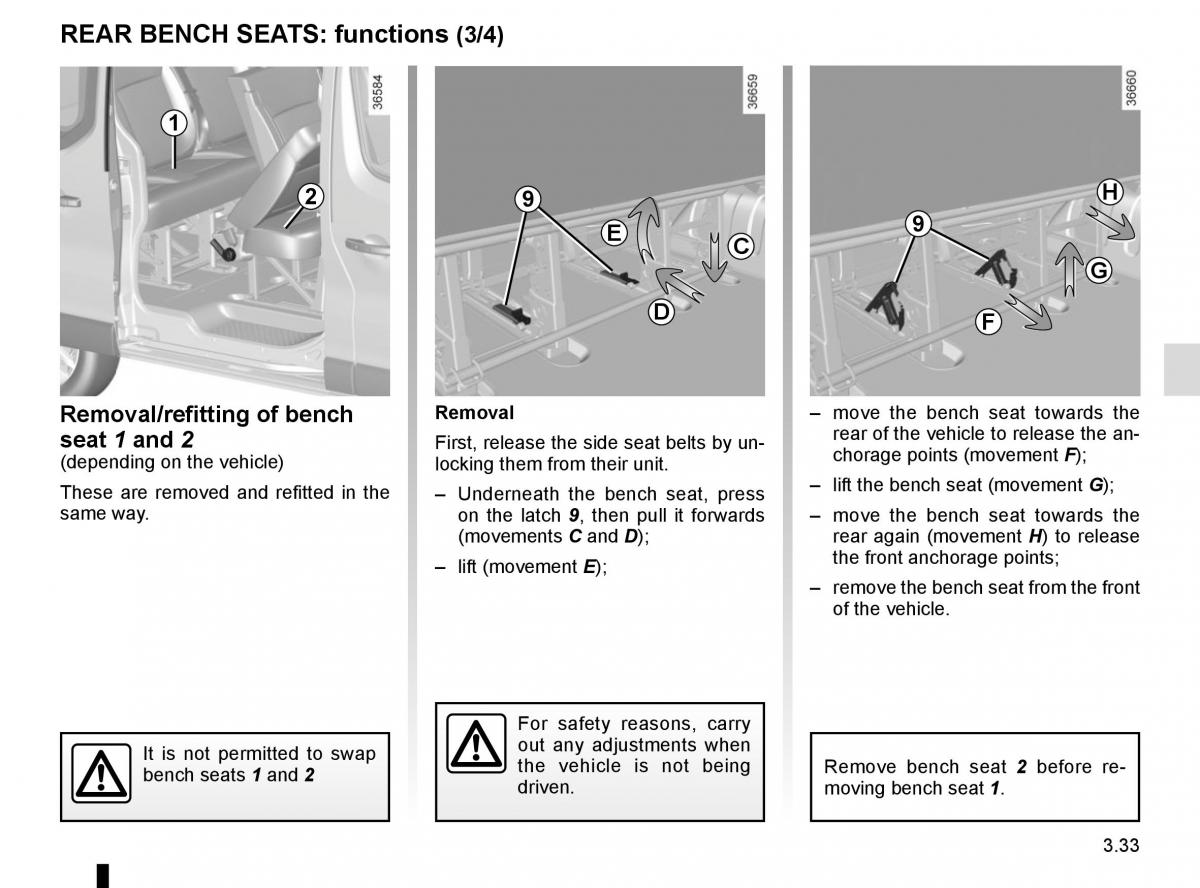

REAR BENCH SEATS: functions (3/4)
1
2 9 H
E C 9
G
D F
Removal/refitting of bench Removal – move the bench seat towards the
seat 1 and 2 First, release the side seat belts by un-rear of the vehicle to release the an-
(depending on the vehicle)locking them from their unit.chorage points (movement F);
These are removed and refitted in the – lift the bench seat (movement G);
– Underneath the bench seat, press
same way. on the latch 9, then pull it forwards– move the bench seat towards the
(movements C and D); rear again (movement H) to release
– lift (movement E); the front anchorage points;
– remove the bench seat from the front
of the vehicle.
For safety reasons, carry
out any adjustments when
It is not permitted to swap
the vehicle is not being
bench seats 1 and 2 Remove bench seat 2 before re-
driven. moving bench seat 1.
3.33
