text version of content this owner's manual page from owners manual to the vehicle Smart Fortwo, year of production 2008:

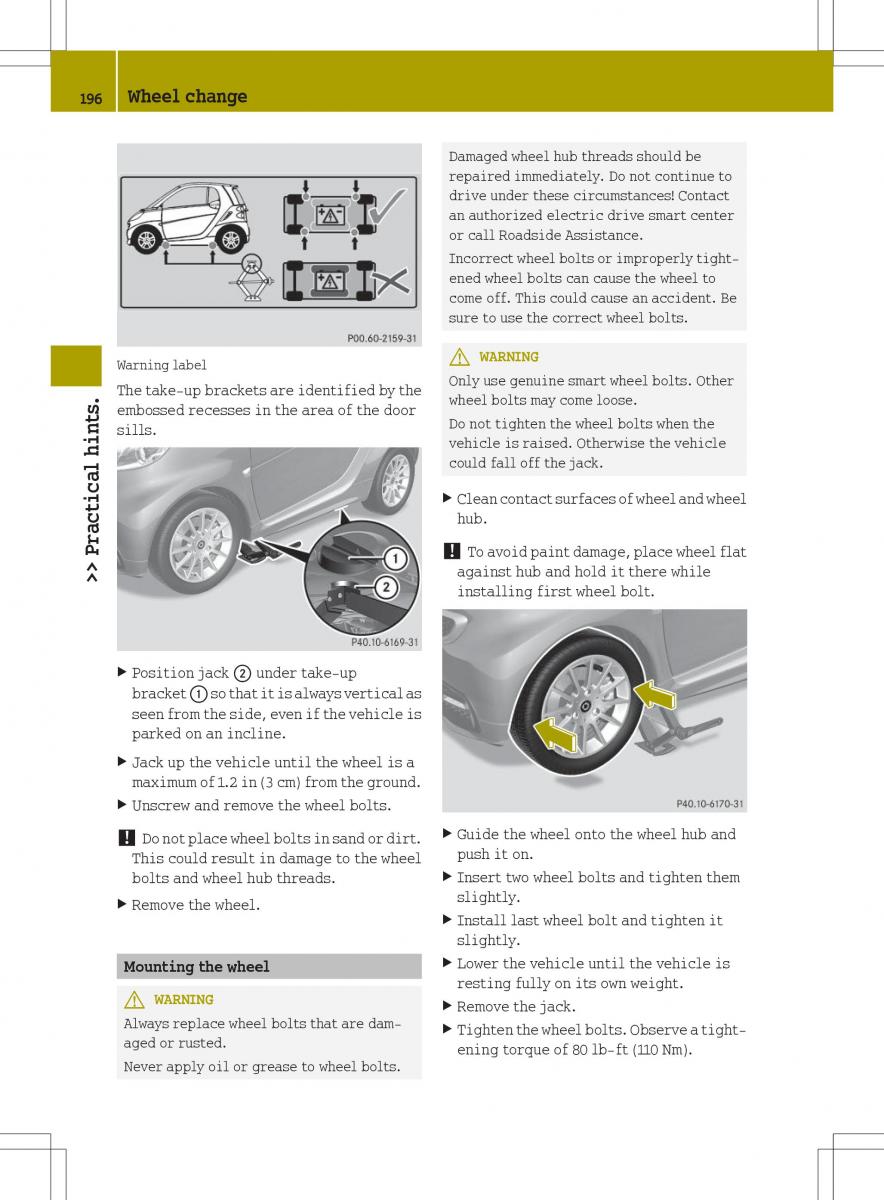

Wheel change 196 Damagedwheelhubthreadsshouldbe repaired immediately. Do not continue to drive under these circumstances! Contact an authorized electric drive smart center or call Roadside Assistance. Incorrect wheel bolts or improperly tight- ened wheel bolts can cause the wheel to comeoff. This could cause an accident. Be sure to use the correct wheel bolts. GWARNING Warning label Only use genuine smart wheel bolts. Other Thetake-upbracketsareidentifiedbythe wheel bolts may come loose. embossed recesses in the area of the door Donottightenthewheelboltswhenthe sills. vehicle is raised. Otherwise the vehicle hints. could fall off the jack. l X Cleancontactsurfacesofwheelandwheel tica hub. Prac !Toavoidpaintdamage,placewheelflat against hub and hold it there while >> installing first wheel bolt. X Position jack ; under take-up bracket:sothatitisalwaysverticalas seenfromtheside,evenifthevehicleis parked on an incline. X Jack up the vehicle until the wheel is a maximumof1.2in(3cm)fromtheground. X Unscrew and remove the wheel bolts. X Guide the wheel onto the wheel hub and !Donotplacewheelboltsinsandordirt. push it on. This could result in damage to the wheel X bolts and wheel hub threads. Insert two wheel bolts and tighten them slightly. X Removethewheel. X Install last wheel bolt and tighten it slightly. X Lower the vehicle until the vehicle is Mounting the wheel resting fully on its own weight. GWARNING X Removethejack. Always replace wheel bolts that are dam- X Tightenthewheelbolts.Observeatight- aged or rusted. ening torque of 80 lb-ft (110 Nm). Never apply oil or grease to wheel bolts.
