text version of content this owner's manual page from owners manual to the vehicle Smart Fortwo, year of production 2008:

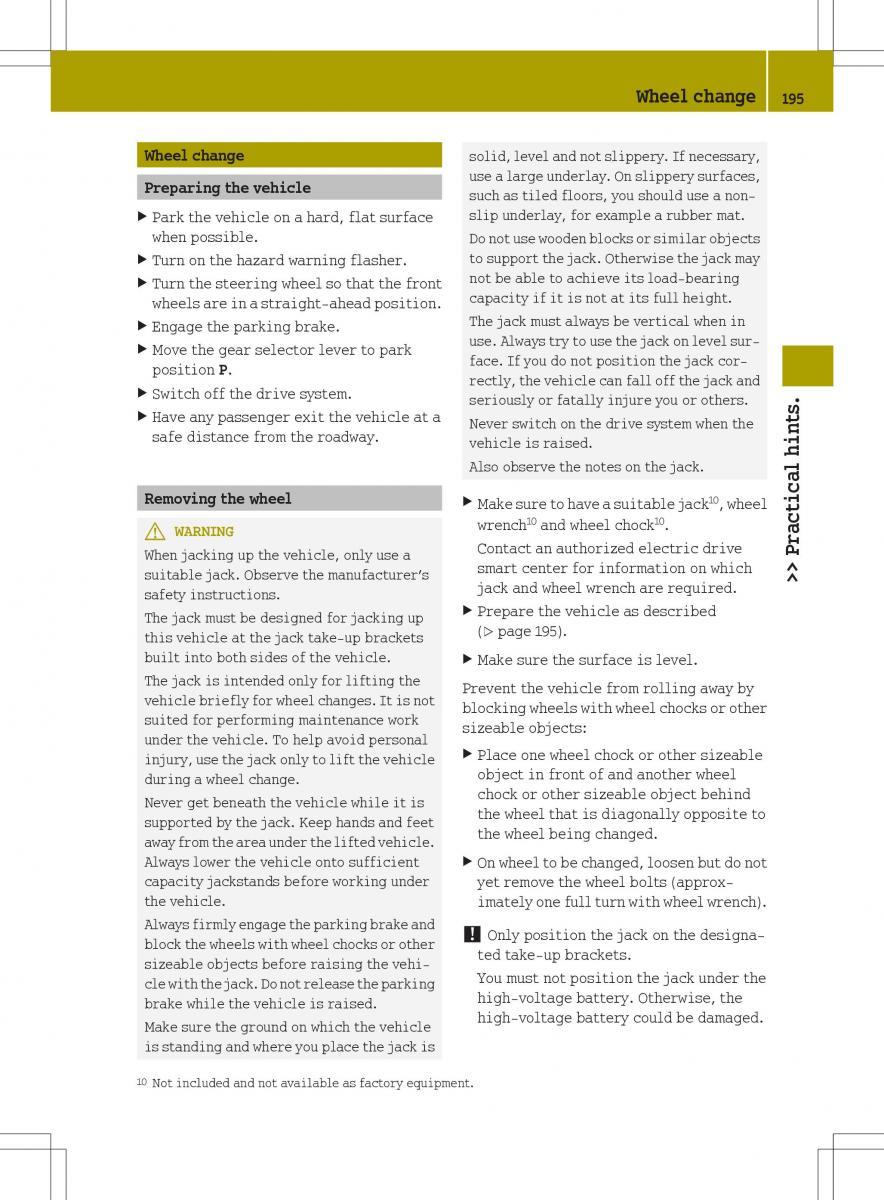

Wheel change 195 Wheel change solid, level and not slippery. If necessary, usealargeunderlay.Onslipperysurfaces, Preparing the vehicle such as tiled floors, you should use a non- X slip underlay, for example a rubber mat. Park the vehicle on a hard, flat surface when possible. Donotusewoodenblocksorsimilarobjects X to support the jack. Otherwise the jack may Turn on the hazard warning flasher. not be able to achieve its load-bearing X Turn the steering wheel so that the front capacity if it is not at its full height. wheelsareinastraight-aheadposition. The jack must always be vertical when in X Engage the parking brake. use. Always try to use the jack on level sur- X Movethegearselectorlevertopark face. If you do not position the jack cor- position P. rectly, the vehicle can fall off the jack and X Switch off the drive system. seriously or fatally injure you or others. X Have any passenger exit the vehicle at a Never switch on the drive system when the safe distance from the roadway. vehicle is raised. hints. Also observe the notes on the jack. al Removingthewheel 10 X Makesuretohaveasuitablejack ,wheel tic 10 10 wrench andwheelchock . GWARNING Contact an authorized electric drive Prac Whenjackingupthevehicle,onlyusea smart center for information on which suitable jack. Observe the manufacturer’s >> jack and wheel wrench are required. safety instructions. X Prepare the vehicle as described The jack must be designed for jacking up (Y page 195). this vehicle at the jack take-up brackets built into both sides of the vehicle.X Makesurethesurfaceislevel. The jack is intended only for lifting the Prevent the vehicle from rolling away by vehiclebrieflyforwheelchanges.Itisnot blockingwheelswithwheelchocksorother suited for performing maintenance work sizeable objects: under the vehicle. To help avoid personal X Place one wheel chock or other sizeable injury, use the jack only to lift the vehicle object in front of and another wheel during a wheel change. chock or other sizeable object behind Never get beneath the vehicle while it is the wheel that is diagonally opposite to supported by the jack. Keep hands and feet the wheel being changed. awayfromtheareaundertheliftedvehicle. Always lower the vehicle onto sufficientX Onwheeltobechanged,loosenbutdonot capacity jackstands before working underyet remove the wheel bolts (approx- the vehicle. imatelyonefullturnwithwheelwrench). Alwaysfirmlyengagetheparkingbrakeand !Onlypositionthejackonthedesigna- blockthewheelswithwheelchocksorother ted take-up brackets. sizeable objects before raising the vehi- You must not position the jack under the clewiththejack.Donotreleasetheparking high-voltage battery. Otherwise, the brake while the vehicle is raised. high-voltage battery could be damaged. Makesurethegroundonwhichthevehicle is standing and where you place the jack is 10 Not included and not available as factory equipment. Z
