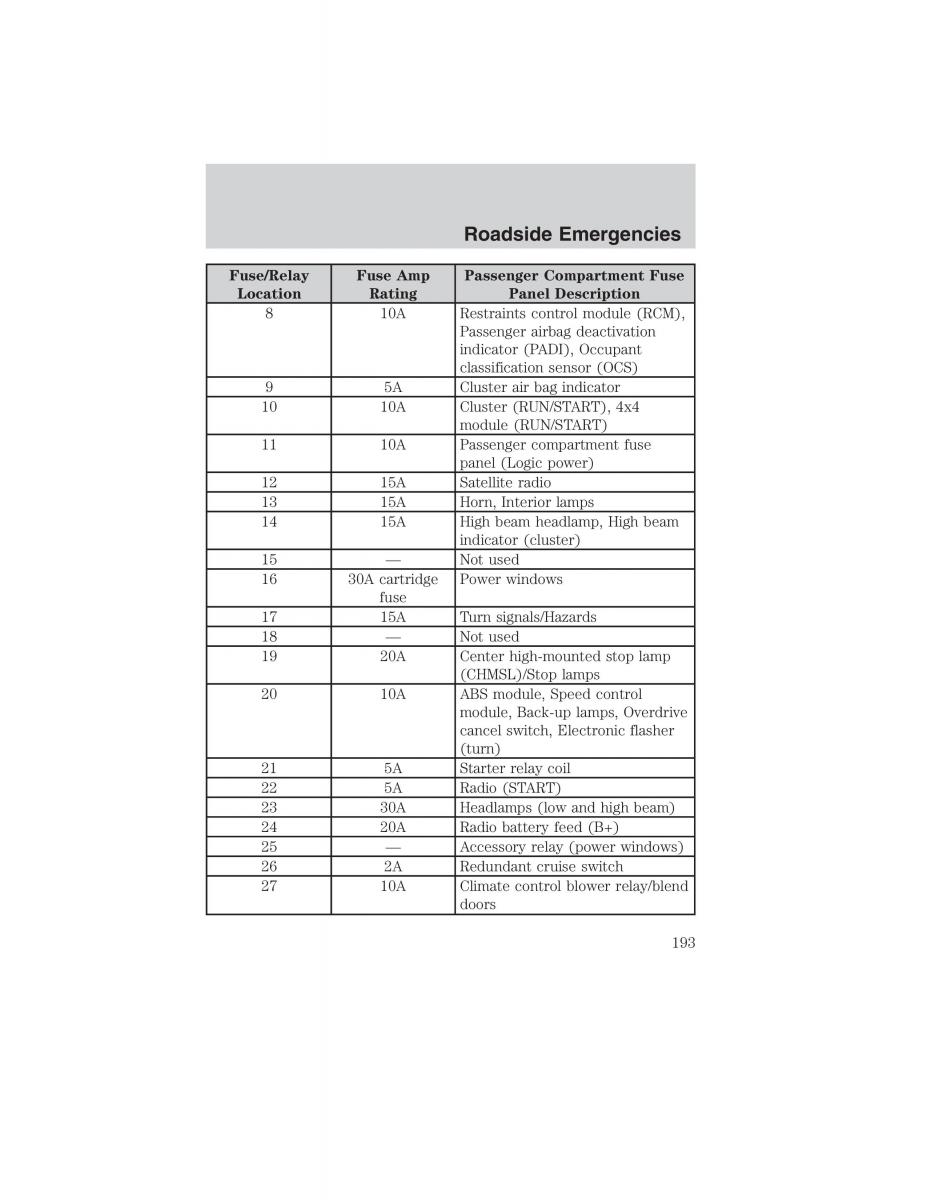

Roadside Emergencies
Fuse/RelayFuse AmpPassenger Compartment Fuse
Location Rating Panel Description
8 10A Restraints control module (RCM),
Passenger airbag deactivation
indicator (PADI), Occupant
classification sensor (OCS)
9 5A Cluster air bag indicator
10 10A Cluster (RUN/START), 4x4
module (RUN/START)
11 10A Passenger compartment fuse
panel (Logic power)
12 15A Satellite radio
13 15A Horn, Interior lamps
14 15A High beam headlamp, High beam
indicator (cluster)
15 — Not used
16 30A cartridgePower windows
fuse
17 15A Turn signals/Hazards
18 — Not used
19 20A Center high-mounted stop lamp
(CHMSL)/Stop lamps
20 10A ABS module, Speed control
module, Back-up lamps, Overdrive
cancel switch, Electronic flasher
(turn)
21 5A Starter relay coil
22 5A Radio (START)
23 30A Headlamps (low and high beam)
24 20A Radio battery feed (B+)
25 — Accessory relay (power windows)
26 2A Redundant cruise switch
27 10A Climate control blower relay/blend
doors
193
2010 Ranger (ran)
Owners Guide, 2nd Printing
USA(fus)
