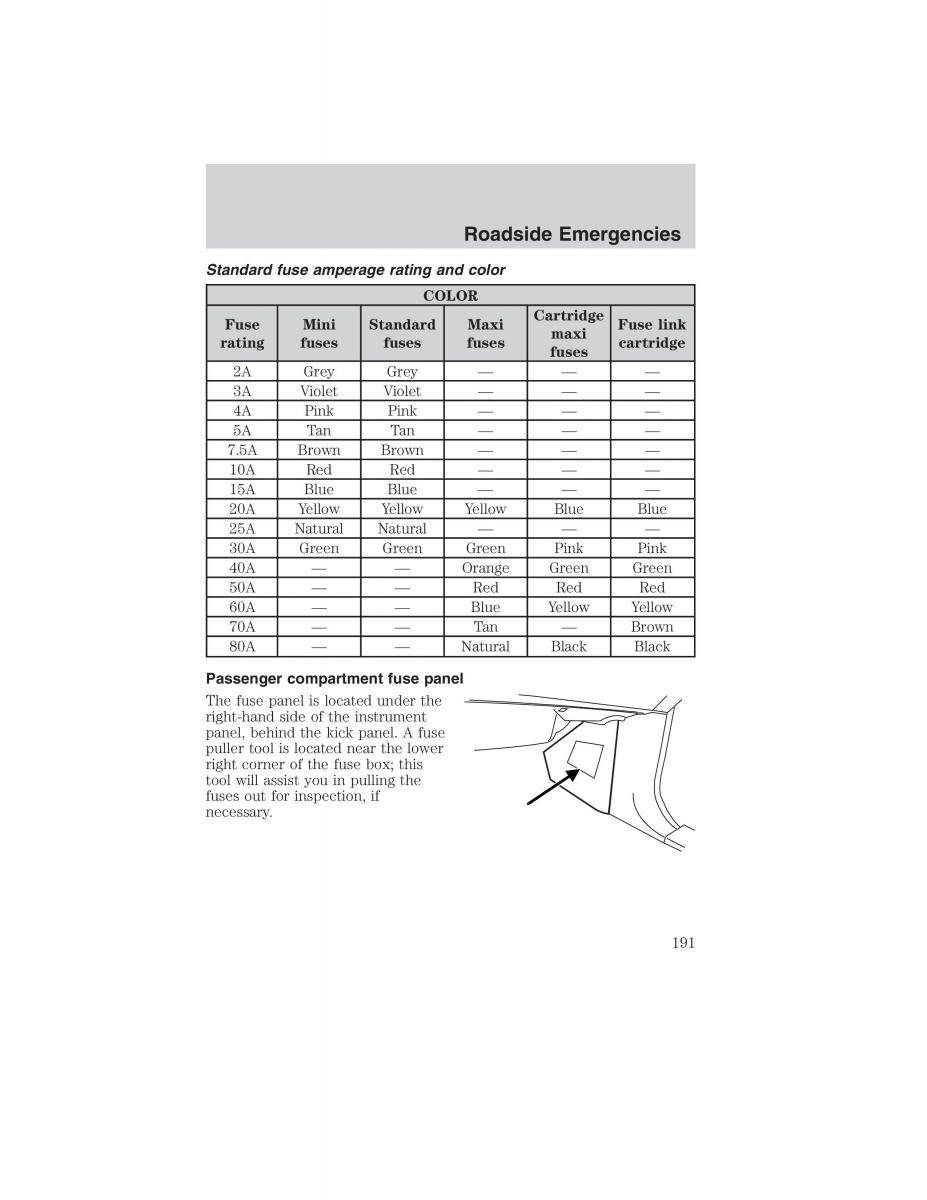

Roadside Emergencies
Standard fuse amperage rating and color
COLOR
Fuse MiniStandardMaxiCartridge Fuse link
ratingfusesfuses fusesmaxi cartridge
fuses
2A Grey Grey — — —
3A VioletViolet— — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5ABrown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A YellowYellowYellowBlue Blue
25A NaturalNatural— — —
30A GreenGreen Green Pink Pink
40A — — OrangeGreen Green
50A — — Red Red Red
60A — — Blue YellowYellow
70A — — Tan — Brown
80A — — NaturalBlackBlack
Passenger compartment fuse panel
The fuse panel is located under the
right-hand side of the instrument
panel, behind the kick panel. A fuse
puller tool is located near the lower
right corner of the fuse box; this
tool will assist you in pulling the
fuses out for inspection, if
necessary.
191
2010 Ranger (ran)
Owners Guide, 2nd Printing
USA(fus)
