text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

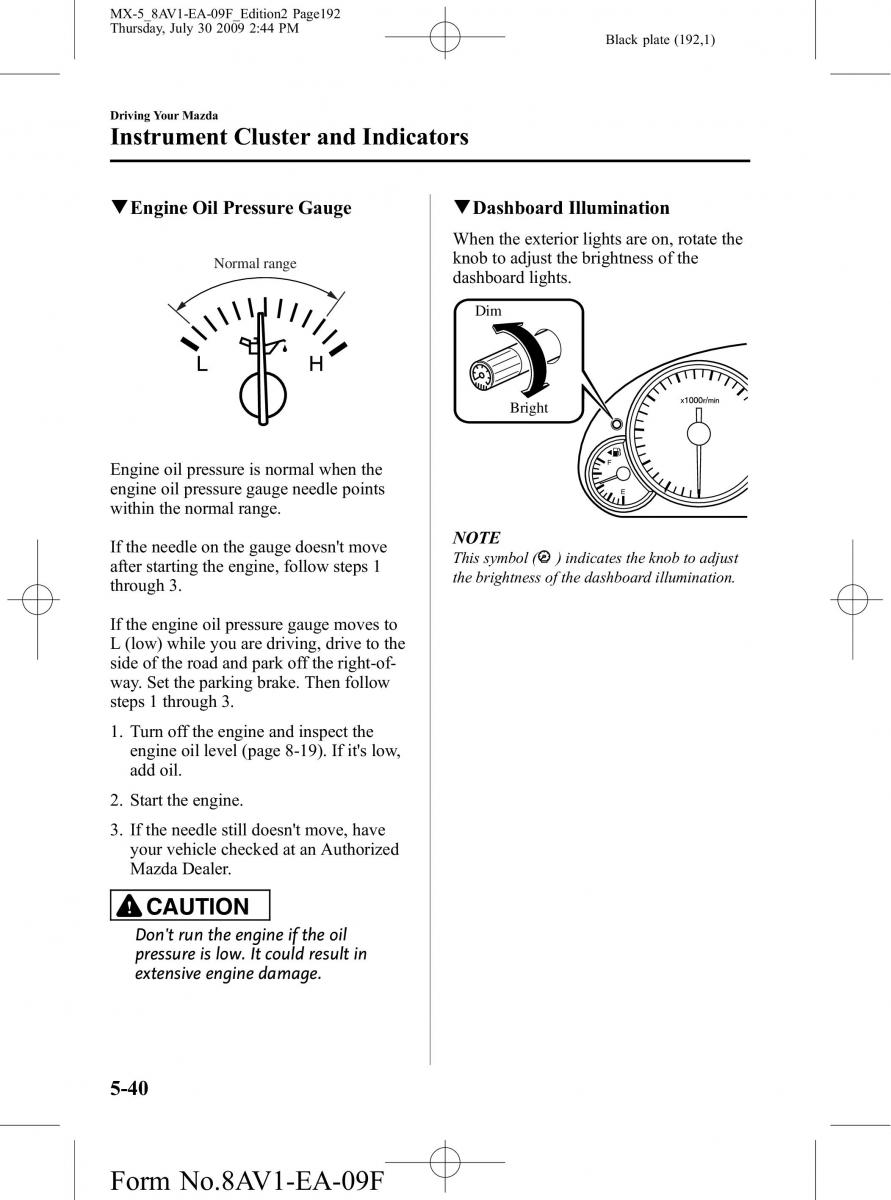

MX-5_8AV1-EA-09F_Edition2 Page192 Thursday, July 30 2009 2:44 PM Black plate (192,1) Driving Your Mazda Instrument Cluster and Indicators qEngineOilPressureGauge qDashboardIllumination Whentheexterior lights are on, rotate the Normal range knob to adjust the brightness of the dashboard lights. Dim Bright Engine oil pressure is normal when the engine oil pressure gauge needle points within the normal range. If the needle on the gauge doesn't moveNOTE after starting the engine, follow steps 1This symbol () indicates the knob to adjust through 3. the brightness of the dashboard illumination. If the engine oil pressure gauge moves to L(low) while you are driving, drive to the side of the road and park off the right-of- way. Set the parking brake. Then follow steps 1 through 3. 1. Turn off the engine and inspect the engine oil level (page 8-19). If it's low, add oil. 2. Start the engine. 3. If the needle still doesn't move, have your vehicle checked at an Authorized MazdaDealer. CAUTION Don't run the engine if the oil pressure is low. It could result in extensive engine damage. 5-40 Form No.8AV1-EA-09F
