text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

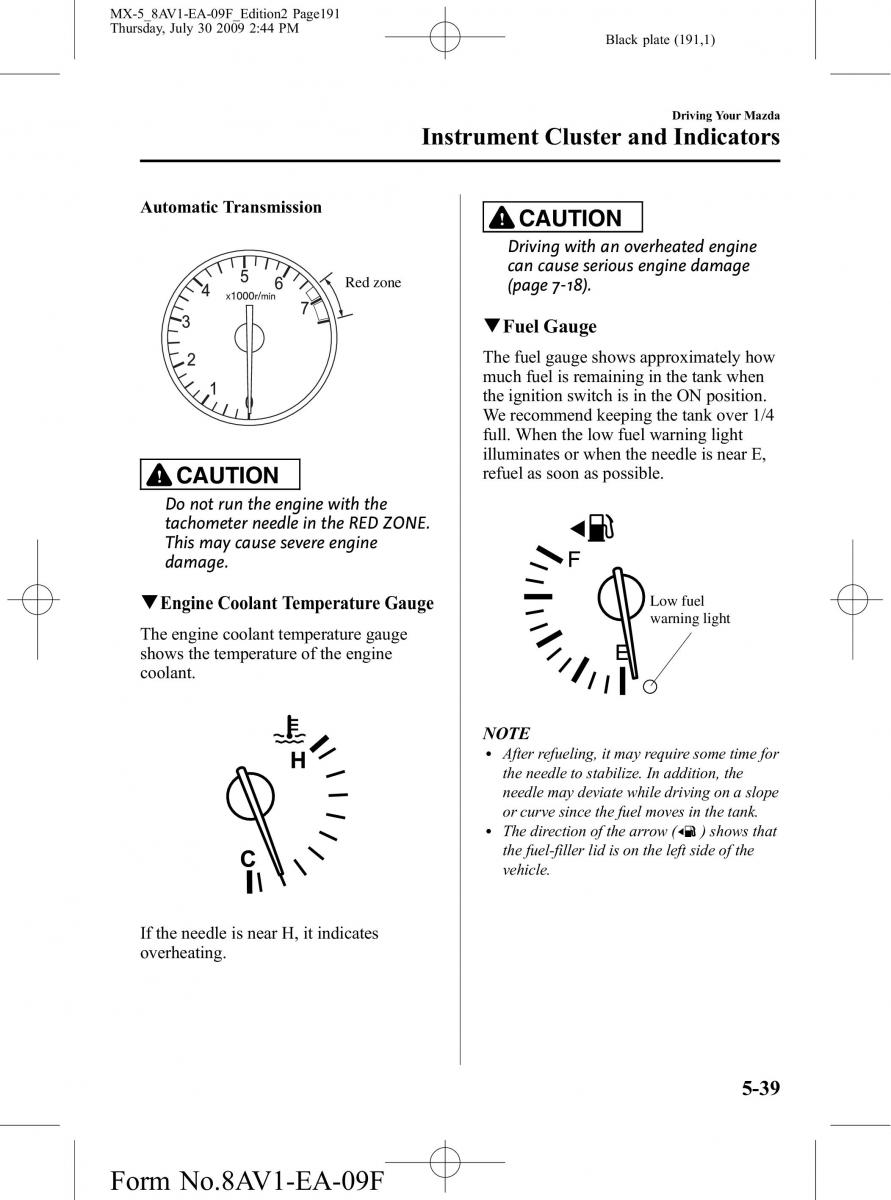

MX-5_8AV1-EA-09F_Edition2 Page191 Thursday, July 30 2009 2:44 PM Black plate (191,1) Driving Your Mazda Instrument Cluster and Indicators Automatic Transmission CAUTION Driving with an overheated engine can cause serious engine damage Red zone (page 7-18). qFuelGauge Thefuel gauge shows approximately how muchfuel is remaining in the tank when the ignition switch is in the ON position. Werecommendkeepingthetankover1/4 full. When the low fuel warning light illuminates or when the needle is near E, CAUTION refuel as soon as possible. Donotruntheenginewiththe tachometer needle in the RED ZONE. This may cause severe engine damage. qEngineCoolantTemperatureGauge Low fuel warning light Theengine coolant temperature gauge shows the temperature of the engine coolant. NOTE l After refueling, it may require some time for the needle to stabilize. In addition, the needle may deviate while driving on a slope or curve since the fuel moves in the tank. l Thedirection of the arrow ( ) shows that the fuel-filler lid is on the left side of the vehicle. If the needle is near H, it indicates overheating. 5-39 Form No.8AV1-EA-09F
