text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156, year of production 1997 - 2006:

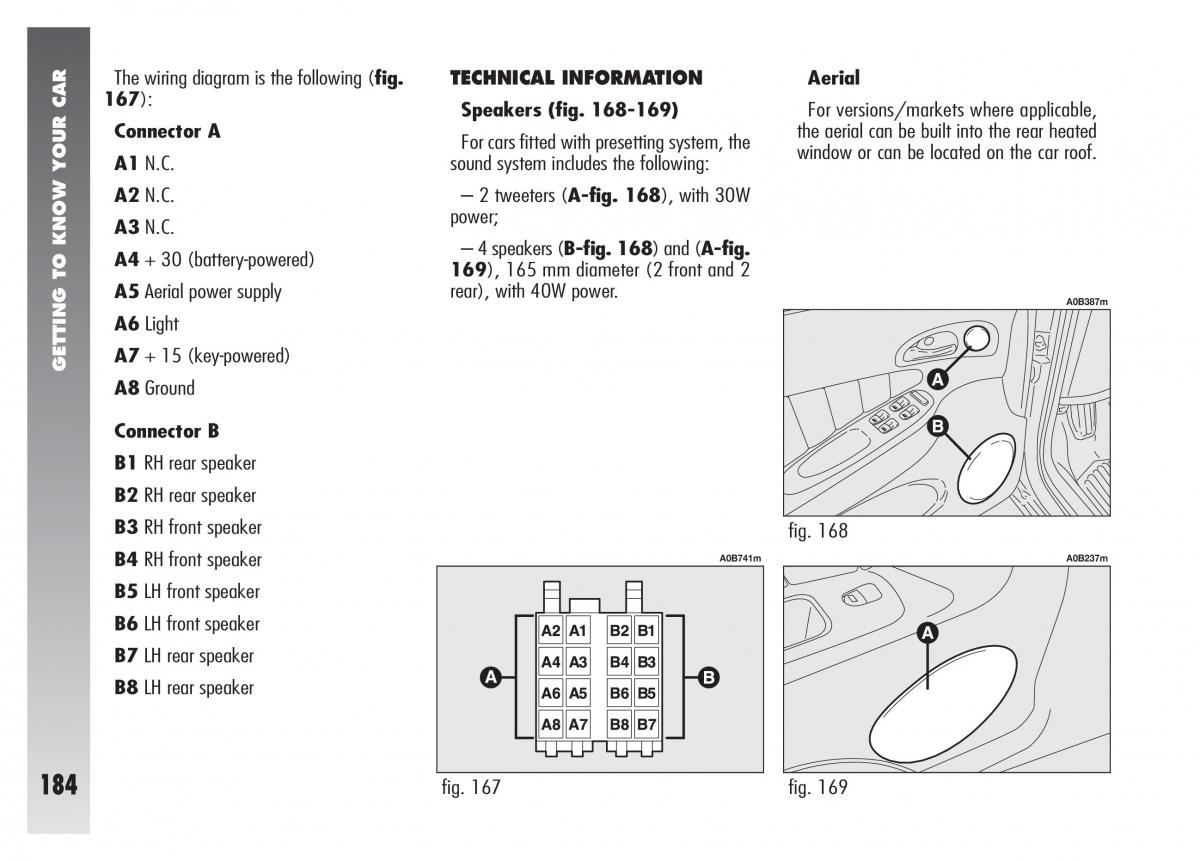

The wiring diagram is the following (fig. TECHNICAL INFORMATION Aerial 167): Speakers (fig. 168-169) For versions/markets where applicable, Connector A For cars fitted with presetting system, the the aerial can be built into the rear heated A1N.C. sound system includes the following: window or can be located on the car roof. A2N.C. – 2 tweeters (A-fig. 168 ), with 30W A3N.C. power; A4+ 30 (battery-powered) – 4 speakers (B-fig. 168 ) and ( A-fig. 169), 165 mm diameter (2 front and 2 A5Aerial power supply rear), with 40W power. A0B387m A6Light A7+ 15 (key-powered) GETTING TO KNOW YOUR CAR A8Ground Connector B B1RH rear speaker B2RH rear speaker B3RH front speaker fig. 168 B4RH front speaker A0B741m A0B237m B5LH front speaker B6LH front speaker B7LH rear speaker B8LH rear speaker 184 fig. 167 fig. 169
