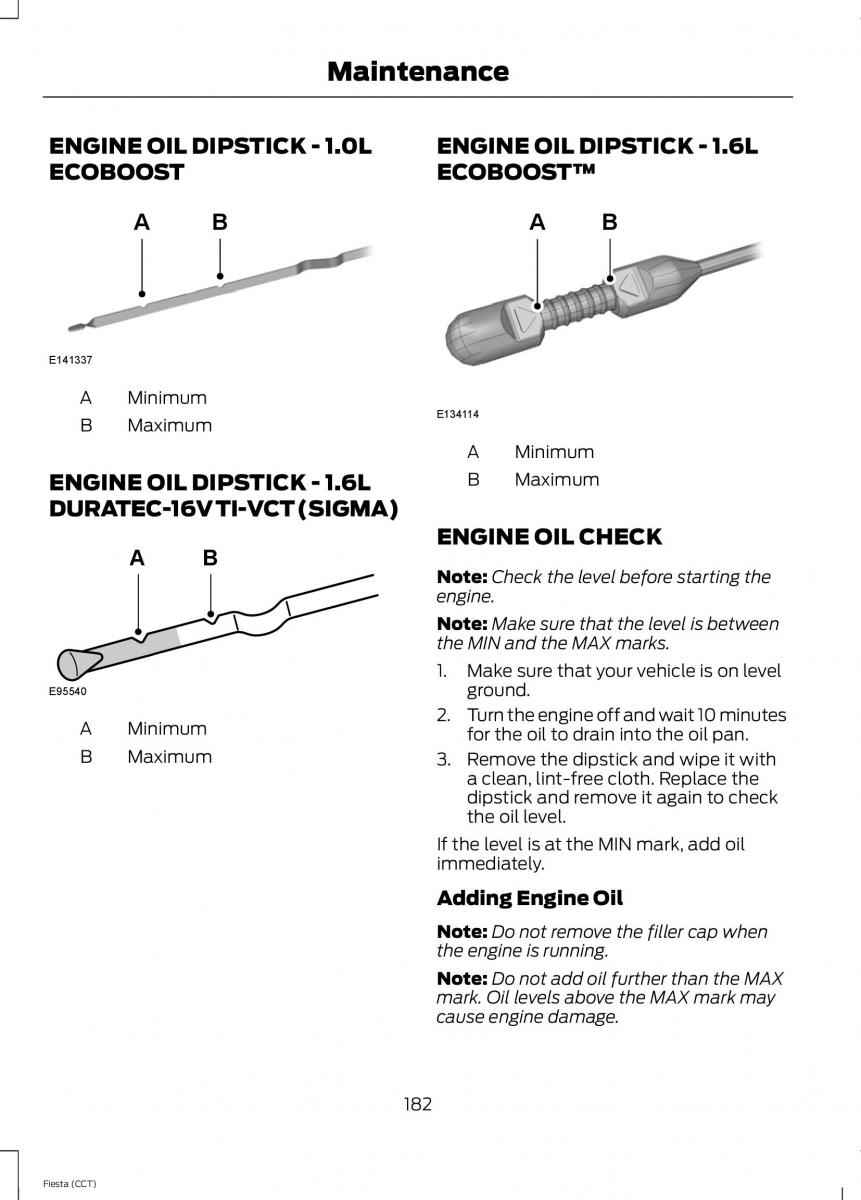

Maintenance ENGINE OIL DIPSTICK - 1.0L ENGINE OIL DIPSTICK - 1.6L ECOBOOST ECOBOOST™ A B A B E141337 A Minimum B Maximum E134114 A Minimum ENGINE OIL DIPSTICK - 1.6L B Maximum DURATEC-16V TI-VCT (SIGMA) ENGINE OIL CHECK A B Note:Check the level before starting the engine. Note:Make sure that the level is between the MIN and the MAX marks. 1. Make sure that your vehicle is on level E95540 ground. A Minimum 2. Turn the engine off and wait 10 minutes for the oil to drain into the oil pan. B Maximum 3. Remove the dipstick and wipe it with a clean, lint-free cloth. Replace the dipstick and remove it again to check the oil level. If the level is at the MIN mark, add oil immediately. Adding Engine Oil Note:Do not remove the filler cap when the engine is running. Note:Do not add oil further than the MAX mark. Oil levels above the MAX mark may cause engine damage. 182 Fiesta (CCT)
