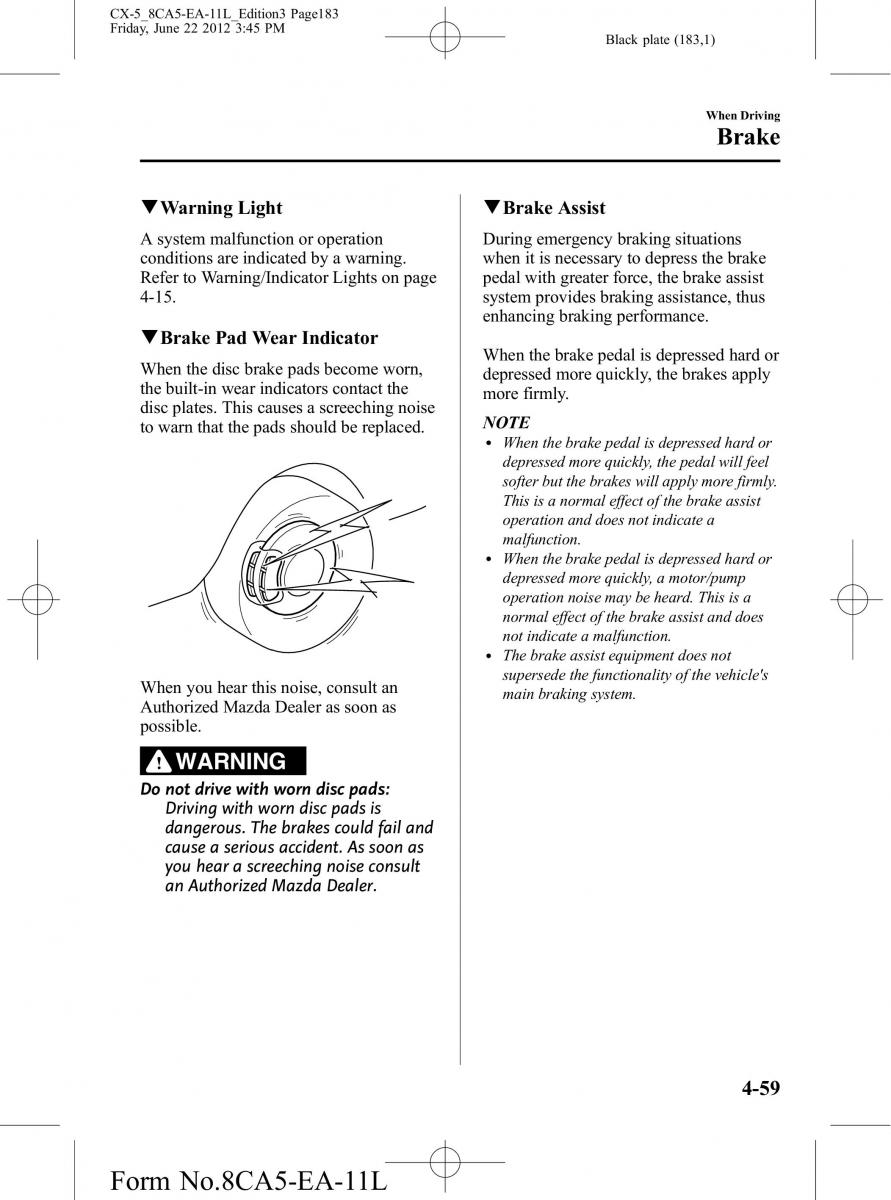

CX-5_8CA5-EA-11L_Edition3 Page183
Friday, June 22 2012 3:45 PM
Black plate (183,1)
WhenDriving
Brake
qWarningLight qBrakeAssist
Asystemmalfunction or operation During emergency braking situations
conditions are indicated by a warning. whenit is necessary to depress the brake
Refer to Warning/Indicator Lights on page pedal with greater force, the brake assist
4-15. system provides braking assistance, thus
enhancing braking performance.
qBrakePadWearIndicator
Whenthediscbrake pads become worn, Whenthebrakepedalis depressed hard or
the built-in wear indicators contact the depressed more quickly, the brakes apply
disc plates. This causes a screeching noise more firmly.
to warn that the pads should be replaced. NOTE
l Whenthebrakepedalis depressed hard or
depressed more quickly, the pedal will feel
softer but the brakes will apply more firmly.
This is a normal effect of the brake assist
operation and does not indicate a
malfunction.
l Whenthebrakepedalis depressed hard or
depressed more quickly, a motor/pump
operation noise may be heard. This is a
normal effect of the brake assist and does
not indicate a malfunction.
l Thebrakeassist equipment does not
Whenyouhearthisnoise, consult an supersede the functionality of the vehicle's
Authorized Mazda Dealer as soon as main braking system.
possible.
WARNING
Donotdrivewithworndiscpads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult
anAuthorized Mazda Dealer.
4-59
Form No.8CA5-EA-11L
