text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

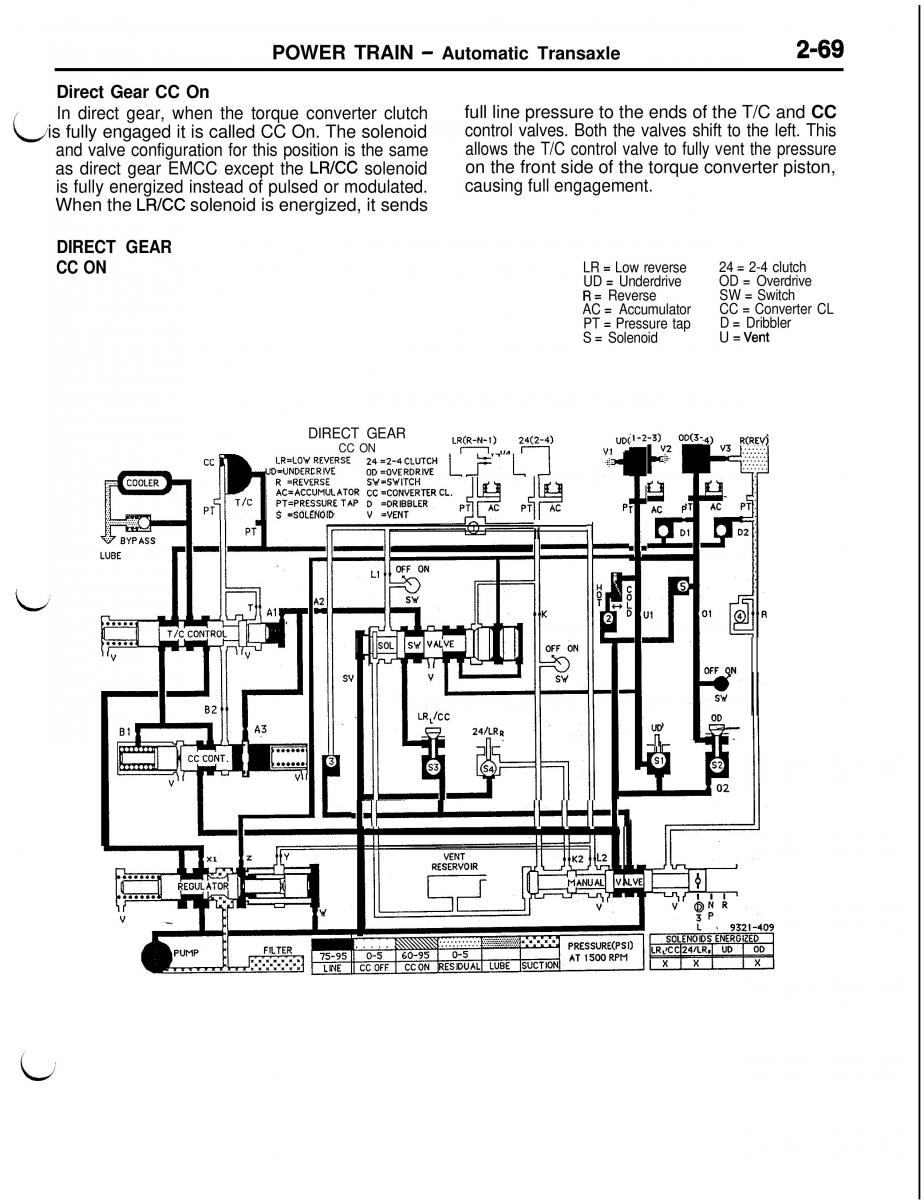

POWER TRAIN- Automatic Transaxle 2-69 Direct Gear CC On full line pressure to the ends of the T/C and CC In direct gear, when the torque converter clutch Lis fully engaged it is called CC On. The solenoid control valves. Both the valves shift to the left. This allows the T/C control valve to fully vent the pressure and valve configuration for this position is the same as direct gear EMCC except theLR/CC solenoid on the front side of the torque converter piston, causing full engagement. is fully energized instead of pulsed or modulated. When the LR/CC solenoid is energized, it sends DIRECT GEAR CC ON LR = Low reverse 24 = 2-4 clutch UD = Underdrive OD = Overdrive R = Reverse SW = Switch CC = Converter CL AC = Accumulator PT = Pressure tap D = Dribbler S = Solenoid U = Vent DIRECT GEAR LR(R-N-1) 24(2-4) UD( ,4) R(REV) CC ON I ,,A r-l Vl n cc LR=LOW REVERSEg;:;;;g:;; L=- L J .:! UD=UNDERCRIVE -!I R =REVERSE T/C r AC P PTPI S =SOLENOID I II I1 . . 1 OFF ON UD n ~14’HHHh
