VW Touareg II 2 owners manual page 180

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

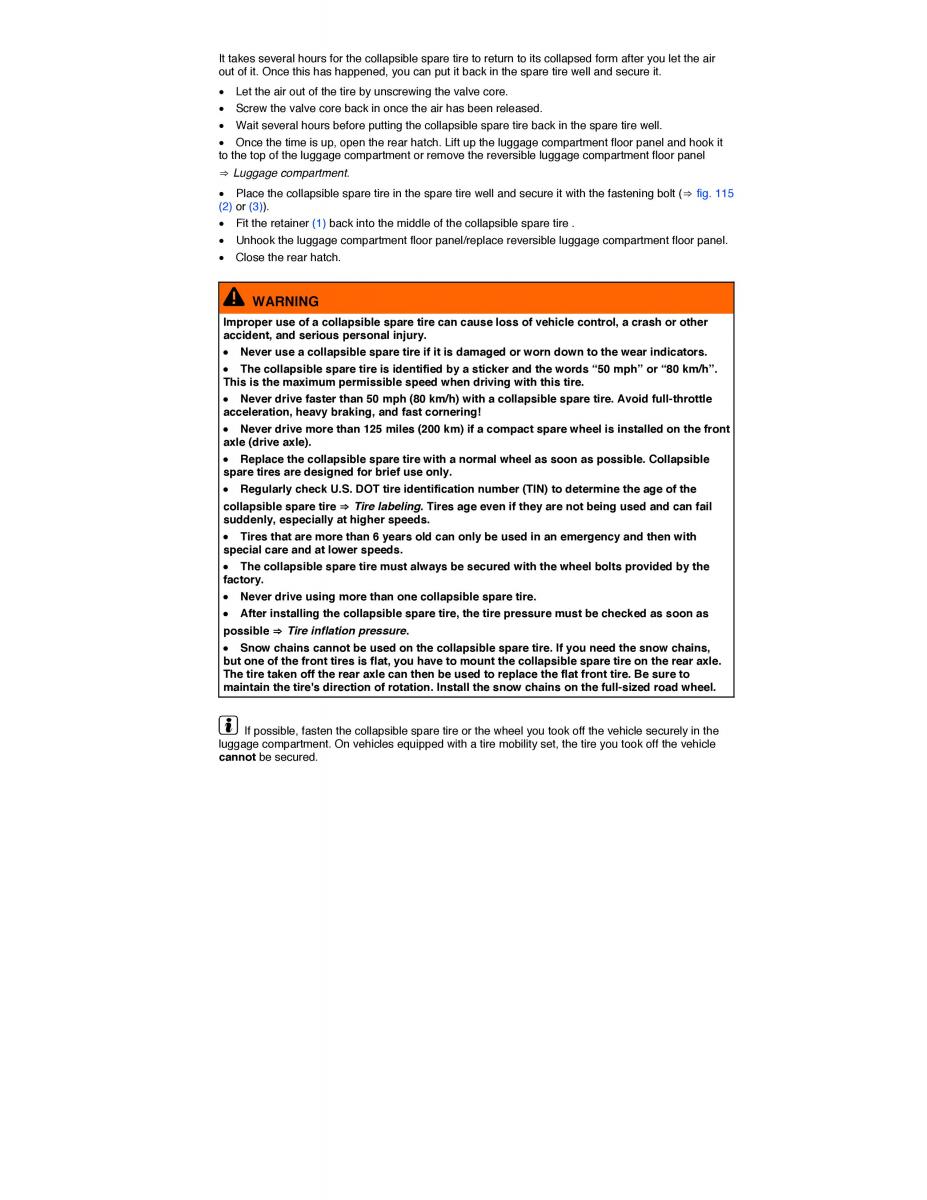

It takes several hours for the collapsible spare tire to return to its collapsed form after you let the air out of it. Once this has happened, you can put it back in the spare tire well and secure it. x Let the air out of the tire by unscrewing the valve core. x Screw the valve core back in once the air has been released. x Wait several hours before putting the collapsible spare tire back in the spare tire well. x Once the time is up, open the rear hatch. Lift up the luggage compartment floor panel and hook it to the top of the luggage compartment or remove the reversible luggage compartment floor panel ⇒ Luggage compartment. x Place the collapsible spare tire in the spare tire well and secure it with the fastening bolt⇒ ( fig. 115 (2) or (3)). x Fit the retaine(1r ) back into the middle of the collapsible spare tire . x Unhook the luggage compartment floor panel/replace reversible lugagge compartment floor panel. x Close the rear hatch. WARNING Improper use of a collapsible spare tire can cause loss of vehicle control, a crash or other accident, and serious personal injury. x Never use a collapsible spare tire if it is damaged or worn down to the wear indictoars. x The collapsible spare tire is identified by a sticker and the words “50 mph” or “80 km/h”. This is the maximum permissible speed when driving with this tire. x Never drive faster than 50 mph (80 km/h) with a collapsible spare tire. Avoid full-throttle acceleration, heavy braking, and fast cornering! x Never drive more than 125 miles (200 km) if a compact spare wheel is installed on the front axle (drive axle). x Replace the collapsible spare tire with a normal wheel as soon as possible. Collapsible spare tires are designed for brief use only. x Regularly check U.S. DOT tire identification number (TIN) to determine the age of the collapsible spare tire ⇒ Tire labeling. Tires age even if they are not being used and can fail suddenly, especially at higher speeds. x Tires that are more than 6 years old can only be used in an emergency and then with special care and at lower speeds. x The collapsible spare tire must always be secured with the wheel bolts provided by the factory. x Never drive using more than one collapsible spare tire. x After installing the collapsible spare tire, the tire pressure must be checked a ssoon as possible ⇒ Tire inflation pressure. x Snow chains cannot be used on the collapsible spare tire. If you need the snow chains, but one of the front tires is flat, you have to mount the collapsible spare tire on the rear axle. The tire taken off the rear axle can then be used to replace the flat front tire. Be sure to maintain the tire's direction of rotation. Install the snow chains on the full-sized road wheel. If possible, fasten the collapsible spare tire or the wheel you took off the vehicle securely in the luggage compartment. On vehicles equipped with a tire mobility set, the tire you took off the vehicle cannot be secured.
