text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2014:

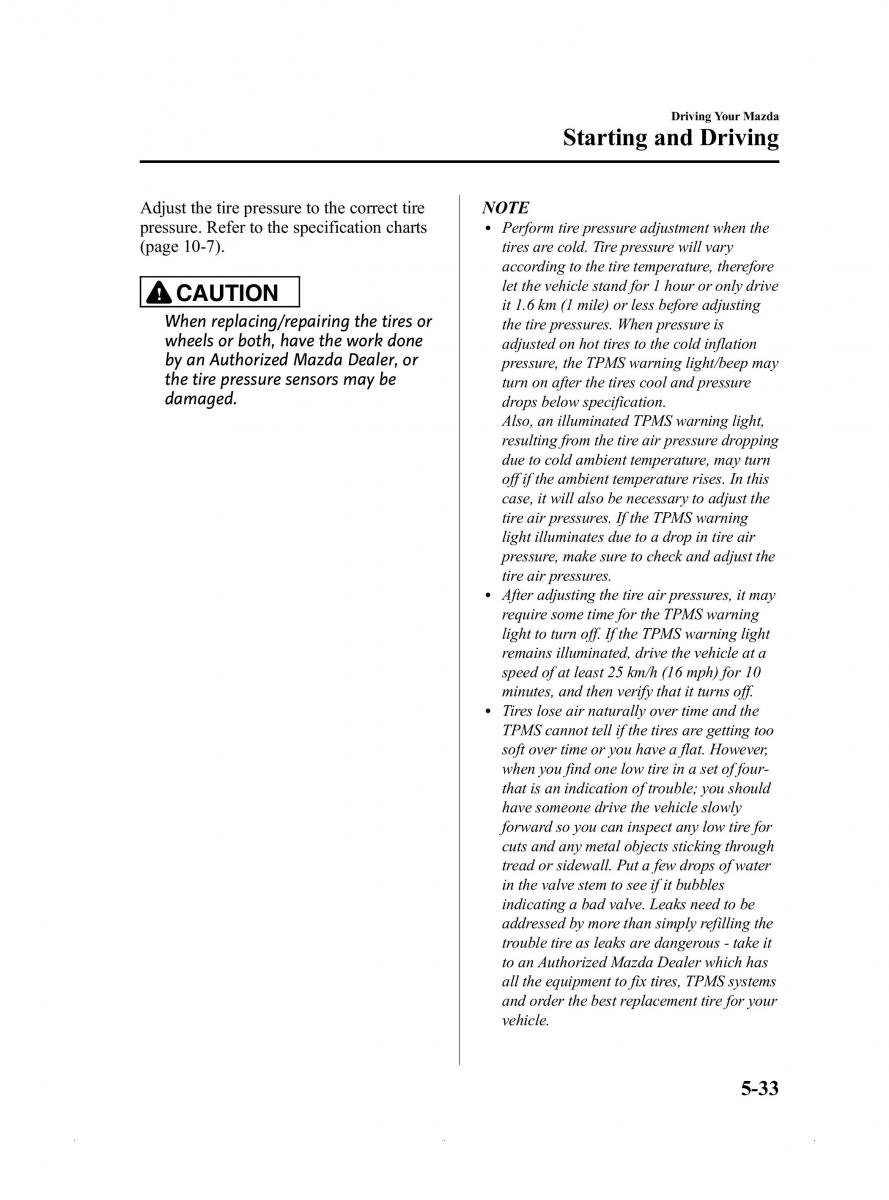

MX-5_8EN7-EA-14E_Edition1 Page177 Friday, March 28 2014 3:39 PM Black plate (177,1) Driving Your Mazda Starting and Driving Adjust the tire pressure to the correct tire NOTE pressure. Refer to the specification charts l Perform tire pressure adjustment when the (page 10-7). tires are cold. Tire pressure will vary according to the tire temperature, therefore CAUTION let the vehicle stand for 1 hour or only drive it 1.6 km (1 mile) or less before adjusting Whenreplacing/repairing the tires or the tire pressures. When pressure is wheels or both, have the work done adjusted on hot tires to the cold inflation by an Authorized Mazda Dealer, or pressure, the TPMS warning light/beep may the tire pressure sensors may be turn on after the tires cool and pressure damaged. drops below specification. Also, an illuminated TPMS warning light, resulting from the tire air pressure dropping due to cold ambient temperature, may turn off if the ambient temperature rises. In this case, it will also be necessary to adjust the tire air pressures. If the TPMS warning light illuminates due to a drop in tire air pressure, make sure to check and adjust the tire air pressures. l After adjusting the tire air pressures, it may require some time for the TPMS warning light to turn off. If the TPMS warning light remains illuminated, drive the vehicle at a speed of at least 25 km/h (16 mph) for 10 minutes, and then verify that it turns off. l Tires lose air naturally over time and the TPMScannottell if the tires are getting too soft over time or you have a flat. However, whenyoufindonelowtirein a set of four- that is an indication of trouble; you should have someone drive the vehicle slowly forward so you can inspect any low tire for cuts and any metal objects sticking through tread or sidewall. Put a few drops of water in the valve stem to see if it bubbles indicating a bad valve. Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous - take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your vehicle. 5-33 Form No.8EN7-EA-14E
