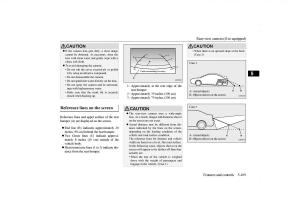

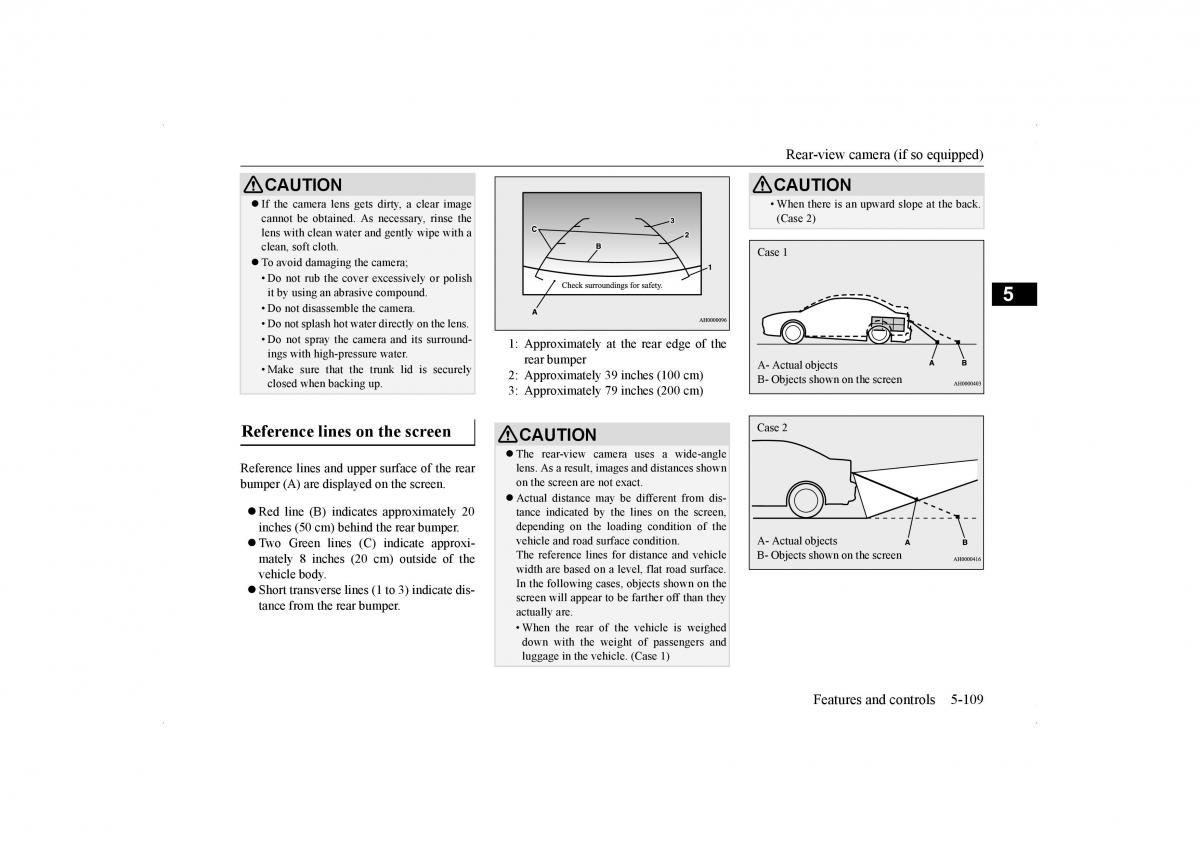

Rear-view camera (if so equipped) CAUTION CAUTION If the camera lens gets dirty, a clear image •When there is an upward slope at the back. cannot be obtained. As necessary, rinse the (Case 2) lens with clean water and gently wipe with a clean, soft cloth. Case 1 To avoid damaging the camera; •Do not rub the cover excessively or polish it by using an abrasive compound. 5 •Do not disassemble the camera. •Do not splash hot water directly on the lens. •Do not spray the camera and its surround- ings with high-pressure water.1: Approximately at the rear edge of the rear bumper A- Actual objects •Make sure that the trunk lid is securely closed when backing up. 2: Approximately 39 inches (100 cm) B- Objects shown on the screen 3: Approximately 79 inches (200 cm) Reference lines on the screen CAUTION Case 2 The rear-view camera uses a wide-angle lens. As a result, images and distances shown Reference lines and upper surface of the rear bumper (A) are displayed on the screen. on the screen are not exact. Actual distance may be different from dis- Red line (B) indicates approximately 20 tance indicated by the lines on the screen, inches (50 cm) behind the rear bumper.depending on the loading condition of the vehicle and road surface condition. A- Actual objects Two Green lines (C) indicate approxi- The reference lines for distance and vehicle B- Objects shown on the screen mately 8 inches (20 cm) outside of the vehicle body. width are based on a level, flat road surface. Short transverse lines (1 to 3) indicate dis-In the following cases, objects shown on the tance from the rear bumper. screen will appear to be farther off than they actually are. •When the rear of the vehicle is weighed down with the weight of passengers and luggage in the vehicle. (Case 1) Features and controls5-109
