text version of content this owner's manual page from owners manual to the vehicle Mercedes B, year of production 2011:

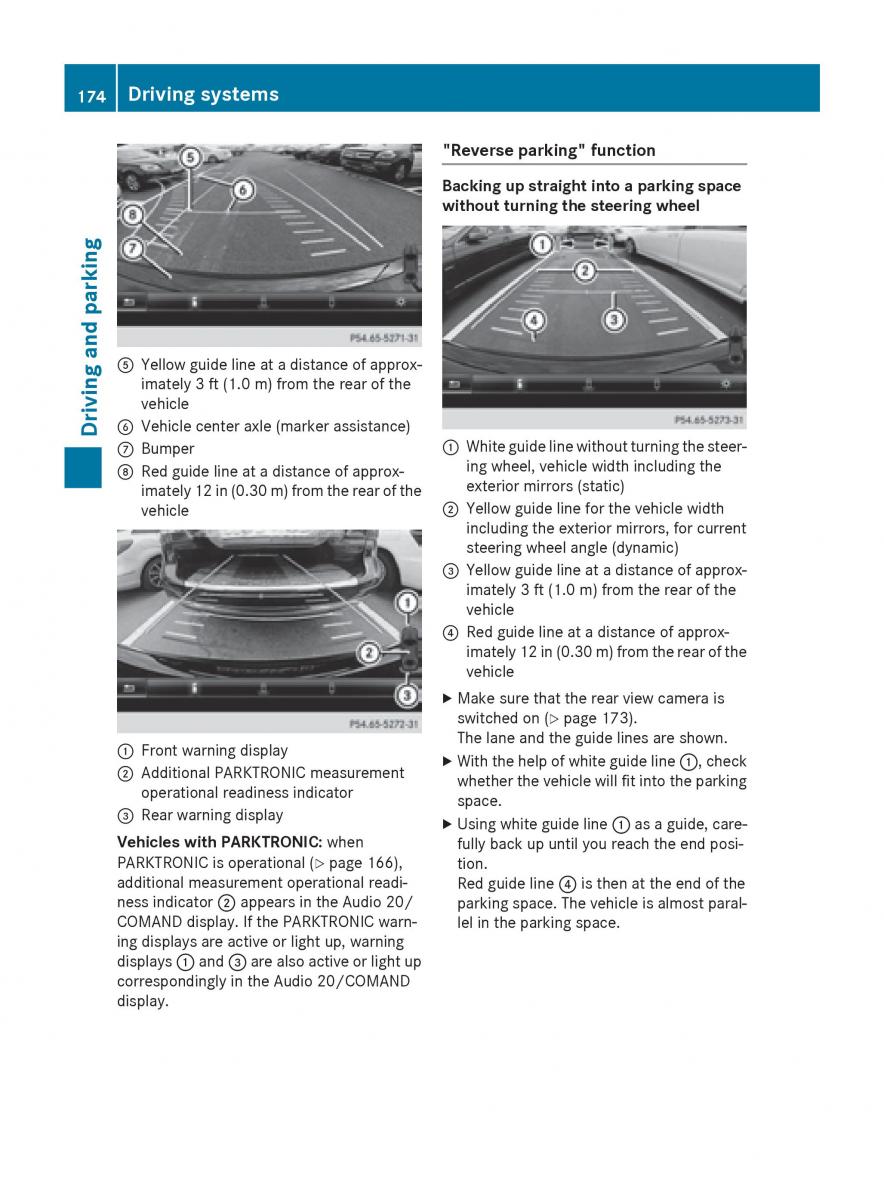

174 Driving systems
"Reverseparking"function
Backing up straight into a parking space
without turning the steering wheel
parking
and
AYellowguidelineatadistanceofapprox-
imately 3 ft (1.0 m) from the rear of the
vehicle
BVehiclecenteraxle(markerassistance)
Driving
:Whiteguidelinewithoutturningthesteer-
CBumper
ing wheel, vehicle width including the
DRedguidelineatadistanceofapprox-
exterior mirrors (static)
imately12in(0.30m)fromtherearofthe
;Yellowguidelineforthevehicle width
vehicle
including the exterior mirrors, for current
steering wheel angle (dynamic)
=Yellowguidelineatadistanceofapprox-
imately 3 ft (1.0 m) from the rear of the
vehicle
?Redguidelineatadistanceofapprox-
imately12in(0.30m)fromtherearofthe
vehicle
XMakesurethattherearviewcamerais
switched on (Y page 173).
The lane and the guide lines are shown.
:Frontwarningdisplay
XWiththehelpofwhiteguideline:,check
;Additional PARKTRONICmeasurement
whetherthevehicle will fit into the parking
operational readiness indicator
space.
=Rearwarningdisplay
XUsingwhiteguideline:asaguide,care-
Vehicles with PARKTRONIC: when
fully back up until you reach the end posi-
PARKTRONICisoperational (Y page 166),tion.
additional measurement operational readi-Redguideline ?is then at the end of the
ness indicator ; appears in the Audio 20/parking space. The vehicle is almost paral-
COMANDdisplay.If the PARKTRONIC warn-lel in the parking space.
ing displays are active or light up, warning
displays : and =arealsoactiveorlightup
correspondingly in the Audio 20/COMAND
display.
