text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

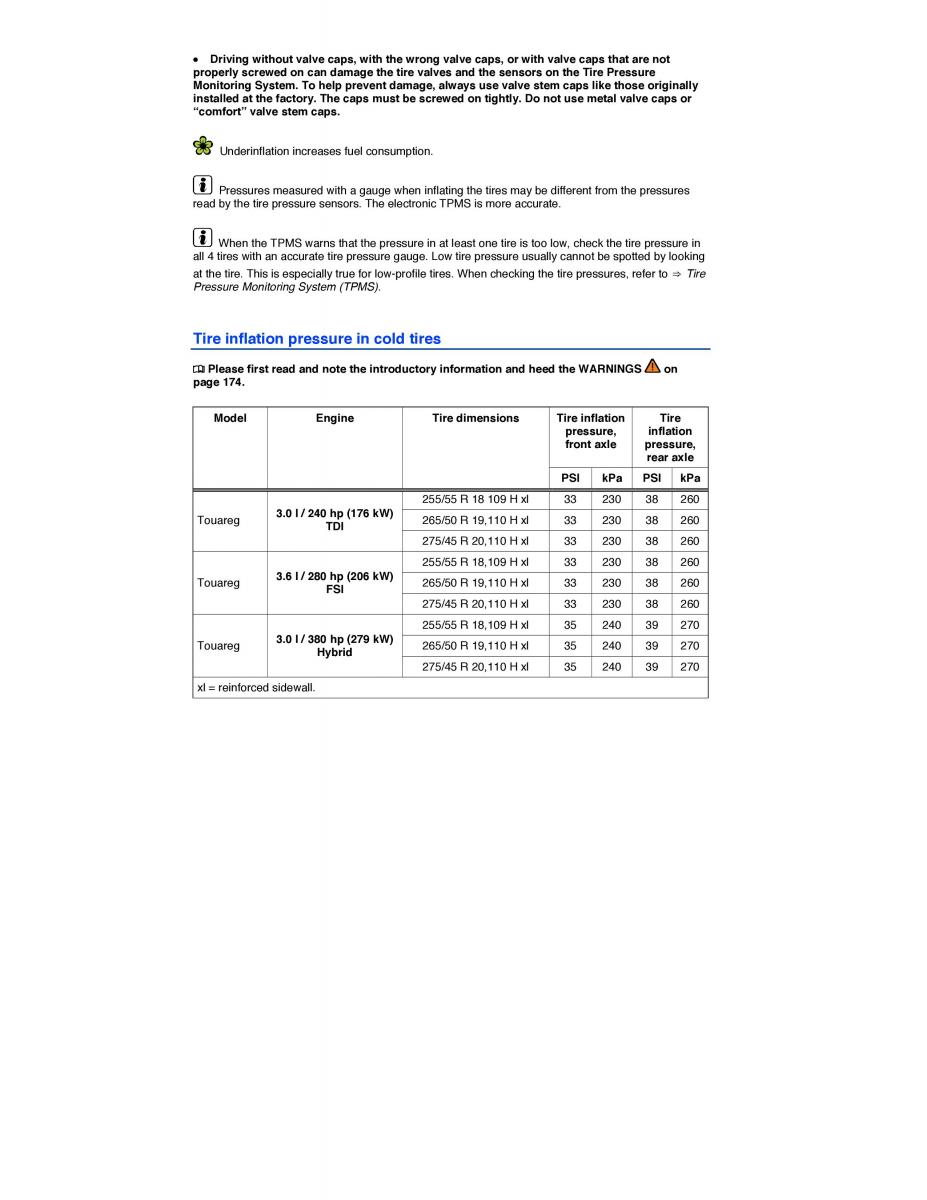

x Driving without valve caps, with the wrong valve caps, or with vavel caps that are not properly screwed on can damage the tire valves and the sensors on the Tire Pressure Monitoring System. To help prevent damage, always use valve stem caps like those originally installed at the factory. The caps must be screwed on tightly. Do not use metal valve caps or “comfort” valve stem caps. Underinflation increases fuel consumption. Pressures measured with a gauge when inflating the tires may be different from the pressures read by the tire pressure sensors. The electronic TPMS is more accurate. When the TPMS warns that the pressure in at least one tire is too low, check the tire pressure in all 4 tires with an accurate tire pressure gauge. Low tire pressure usually cannot be spotted by looking at the tire. This is especially true for low-profile tires. When checking the tire pressures, refer to ⇒ Tire Pressure Monitoring System (TPMS). Tire inflation pressure in cold tires ¤ Please first read and note the introductory information and heed the WARNINGS on page 174. Model Engine Tire dimensionsTire inflation Tire pressure, inflation front axle pressure, rear axle PSI kPaPSI kPa 255/55 R 18 109 H xl 33 230 38 260 Touareg 3.0 l / 240 hp (176 kW) 265/50 R 19,110 H xl 33 230 38 260 TDI 275/45 R 20,110 H xl 33 230 38 260 255/55 R 18,109 H xl 33 230 38 260 Touareg 3.6 l / 280 hp (206 kW) 265/50 R 19,110 H xl 33 230 38 260 FSI 275/45 R 20,110 H xl 33 230 38 260 255/55 R 18,109 H xl 35 240 39 270 Touareg 3.0 l / 380 hp (279 kW)265/50 R 19,110 H xl 35 240 39 270 Hybrid 275/45 R 20,110 H xl 35 240 39 270 xl = reinforced sidewall.
