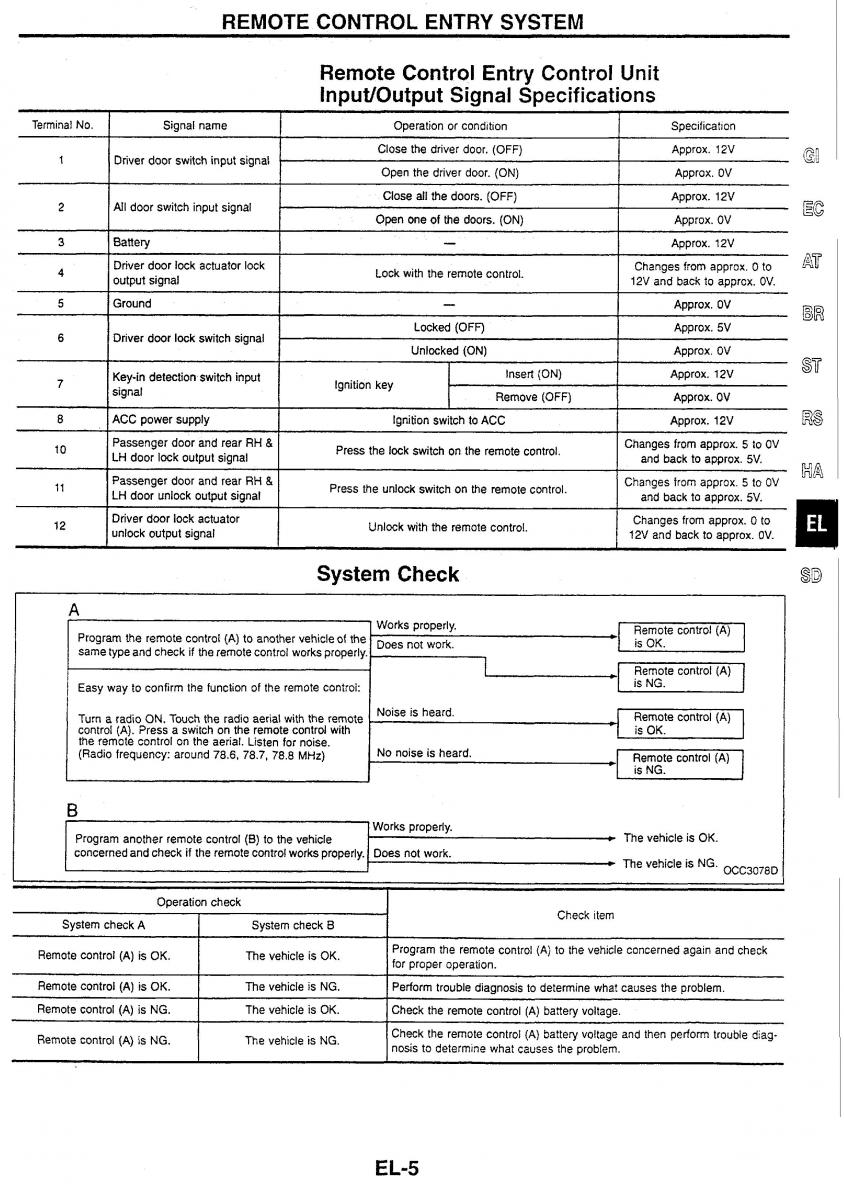

REMOTE CONTROL ENTRY SYSTEM Remote Control Entry Control Unit InputIOutput Signal specifications Terminal No. Signal name Operation or cond~t~on Specificatton Driver door switch input signal . Close the driver door. (OFF) Approx. 12V @ Open the driver door. (ON) Approx. OV All door switch input signal Close all the doors. (OFF) Approx. 12V Ec Open one of the doors. (ON) Approx. OV Driver door lock actuator lock Lock with the remote control. Changes from approx. 0 to output signal 12V and back to approx. OV. Ground - t Approx. OV BR Driver door lock switch signal Locked (OFF) Approx. 5V Unlocked (ON) Approx. OV Key-in detection switch input Insert (ON) Approx. 12V 87 signal Ignition key Remove (OFF) Approx. OV ACC power supply Ignition switch to ACC Approx. 12V Rs Passenger door and rear RH & Press the lock switch on the remote control. Changes from approx. 5 to OV LH door lock output signal and back to approx. 5V. HA Passenger door and rear RH & Press the unlock switch on the remote control. Changes from approx. 5 to OV LH door unlock output signal and back to approx. 5V. Driver door lock actuator Unlock with the remote control. Changes from approx. 0 to unlock output signal 12V and back to approx. OV. System Check Works properly. Program the remote control (A) to another vehicle of the Does not work. is OK. same type and check if the remote control works properly. Easy way to confirm the func+ion of the remote control: Turn a radio ON. Touch the radio aerial with the remote . is heard. control (A). Press a switch on the remote control with I the remote control on the aerial. Listen for noise. No noise is heard. (Radio frequency: around 78.6, 78.7, 78.8 MHz) Remote control (A) is NG. B f ' Works properly. Program another remote control (6) to the vehicle t The vehicle is OK. concerned and check if the remote control works properly. Does not work. r The vehicle is NG. 0CC3078D Operation check I System check A System check B Check item I Program the remote control (A) to the vehicle concerned again and check Remote control (A) is OK. The vehicle is OK. for proper operation. Remote control (A) is OK. The vehicle is NG. Perform trouble diagnosis to determine what causes the problem. Remote control (A) is NG. The vehicle is OK. Check the remote control (A) battery voltage. Remote control (A) is NG. The vehicle is NG. Check the remote control (A) battery voltage and then perform trouble diag- nosis to determine what causes the problem.
