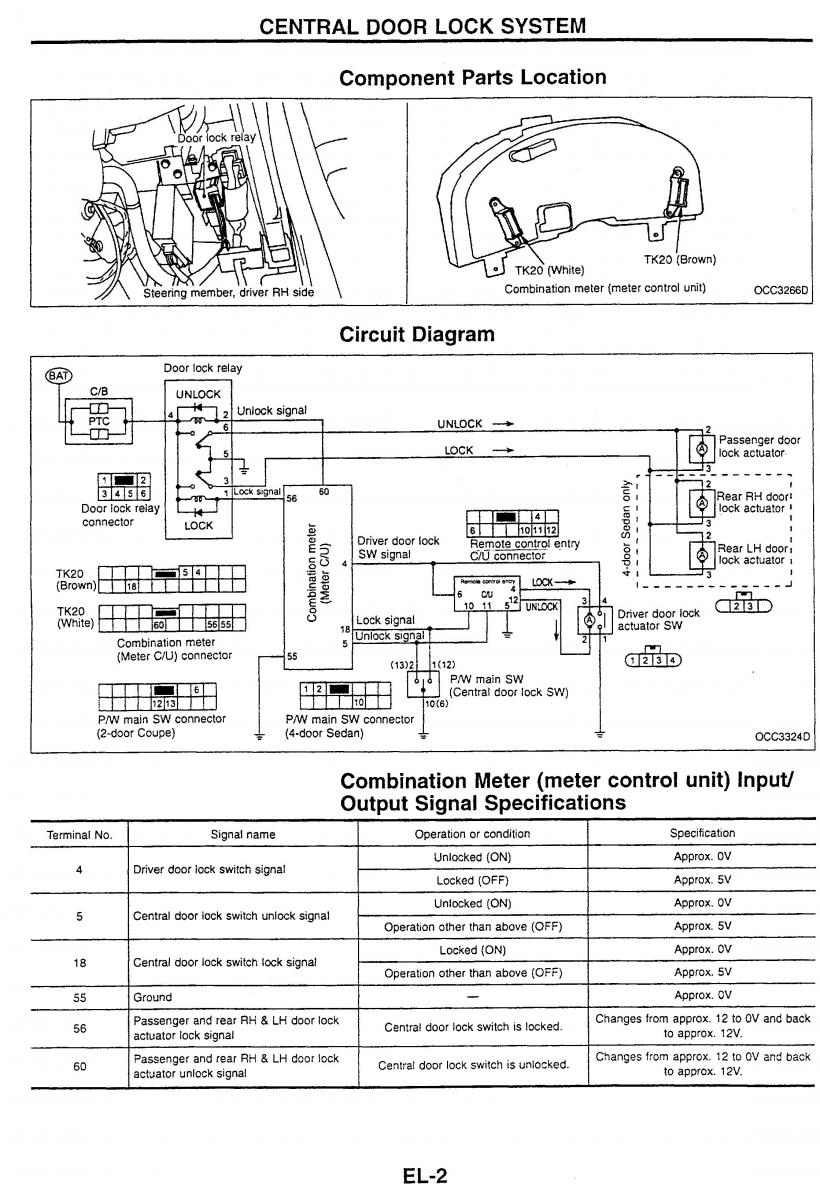

CENTRAL DOOR LOCK SYSTEM Component Parts Location Circuit Diagram Door lock relay LOCK - ----- . RH door1 I Door lock relay actuator 1 connector I 1 LOCK 1 I Driver door lock Remote control entry I SW signal C/U connector Rear LH door I lock actuator I TK20 I I 5\41 1 I (Brown) 1 11el j I 1 I,,,,,,,------J Lock signal Driver door lock 18. actuator SW Unlock sign311 Combination meter 5 T 1 (Meter C/U) connector I PMI main SW (Central door lock SW) P/'W main SW connector PNV main SW connector (2-door Coupe) 1 (4-door Sedan) OCC3324 C Combination Meter (meter control unit) Input/ Output Signal Specifications - Terminal No. Signal name Operation or condition Specification Unlocked (ON1 Approx. OV 4 1 Driver door lock switch signal . . I I Locked (OFF) Approx. 5V Unlocked (ON) Approx. OV 5 Central door lock switch unlock signal Operation other than above (OFF) Approx. 5V Locked (ON) Approx. OV 18 Central door lock switch lock signal Operation other than above (OFF) Approx. 5V 55 Ground - Approx. OV 56 Passenger and rear RH 8 LH door lock Central door lock switch is locked. Changes from approx. 12 to OV and back actuator lock signal to approx. 12V. 60 Passenger and rear RH & LH door lock Central door lock switch is unlocked. Changes from approx. 12 to OV and back actuator unlock siqnal to approx. 12V.
