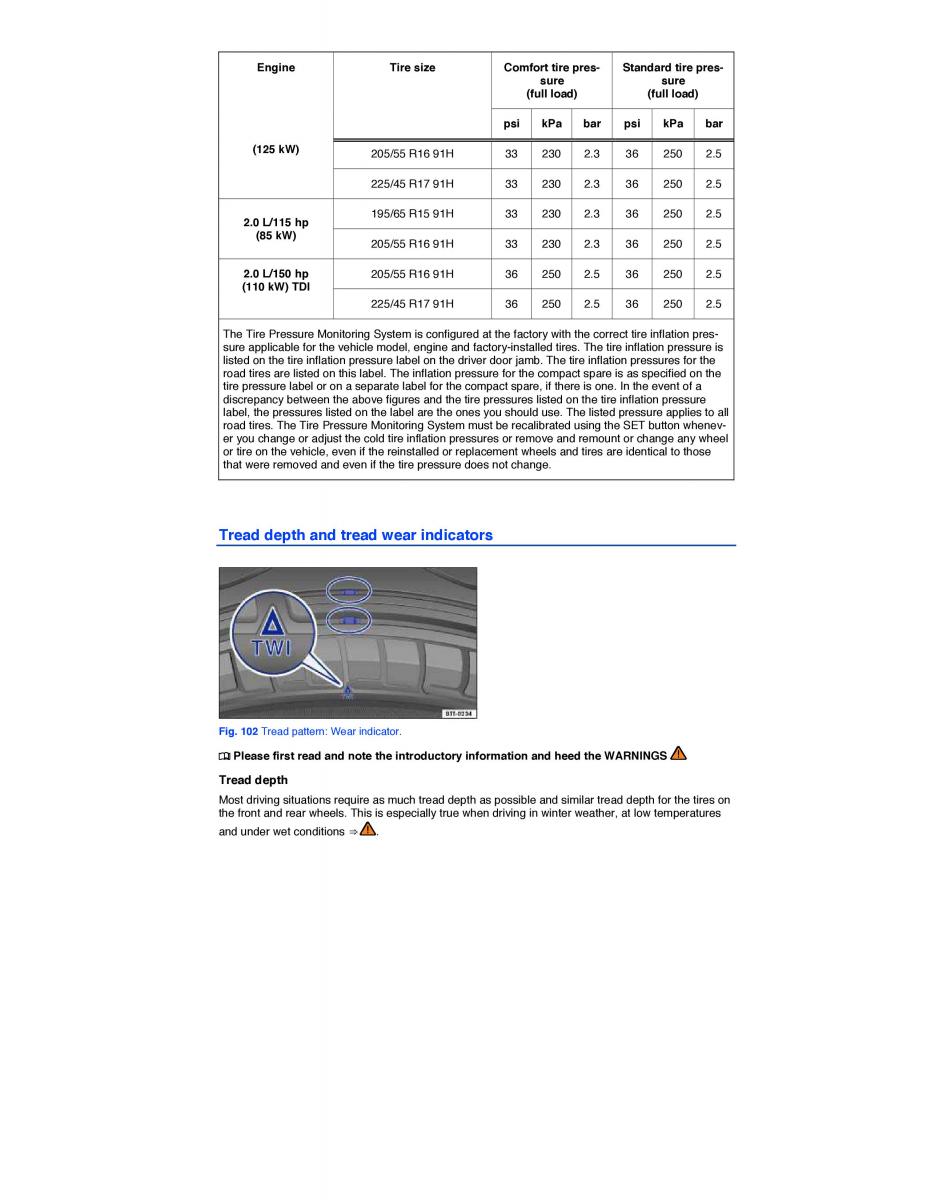

text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

Engine Tire size Comfort tire pres-Standard tire pres- sure sure (full load) (full load) psi kPa bar psi kPa bar (125 kW) 205/55 R16 91H 33 230 2.3 36 250 2.5 225/45 R17 91H 33 230 2.3 36 250 2.5 2.0 L/115 hp 195/65 R15 91H 33 230 2.3 36 250 2.5 (85 kW) 205/55 R16 91H 33 230 2.3 36 250 2.5 2.0 L/150 hp 205/55 R16 91H 36 250 2.5 36 250 2.5 (110 kW) TDI 225/45 R17 91H 36 250 2.5 36 250 2.5 The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pres- sure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated using the SET button whenev- er you change or adjust the cold tire inflation pressures or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change. Tread depth and tread wear indicators Fig. 102 Tread pattern: Wear indicator. ¤ Please first read and note the introductory information and heed the WARNINGS Tread depth Most driving situations require as much tread depth as possible and similar tread depth for the tires on the front and rear wheels. This is especially true when driving in winter weather, at low temperatures and under wet conditions ⇒ .
