owners manual VW Jetta

owners manual VW Jetta - year of production: 2010 - VW Jetta VI 6 owners manual EN

Document: pdf (6.28 MB) 412 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

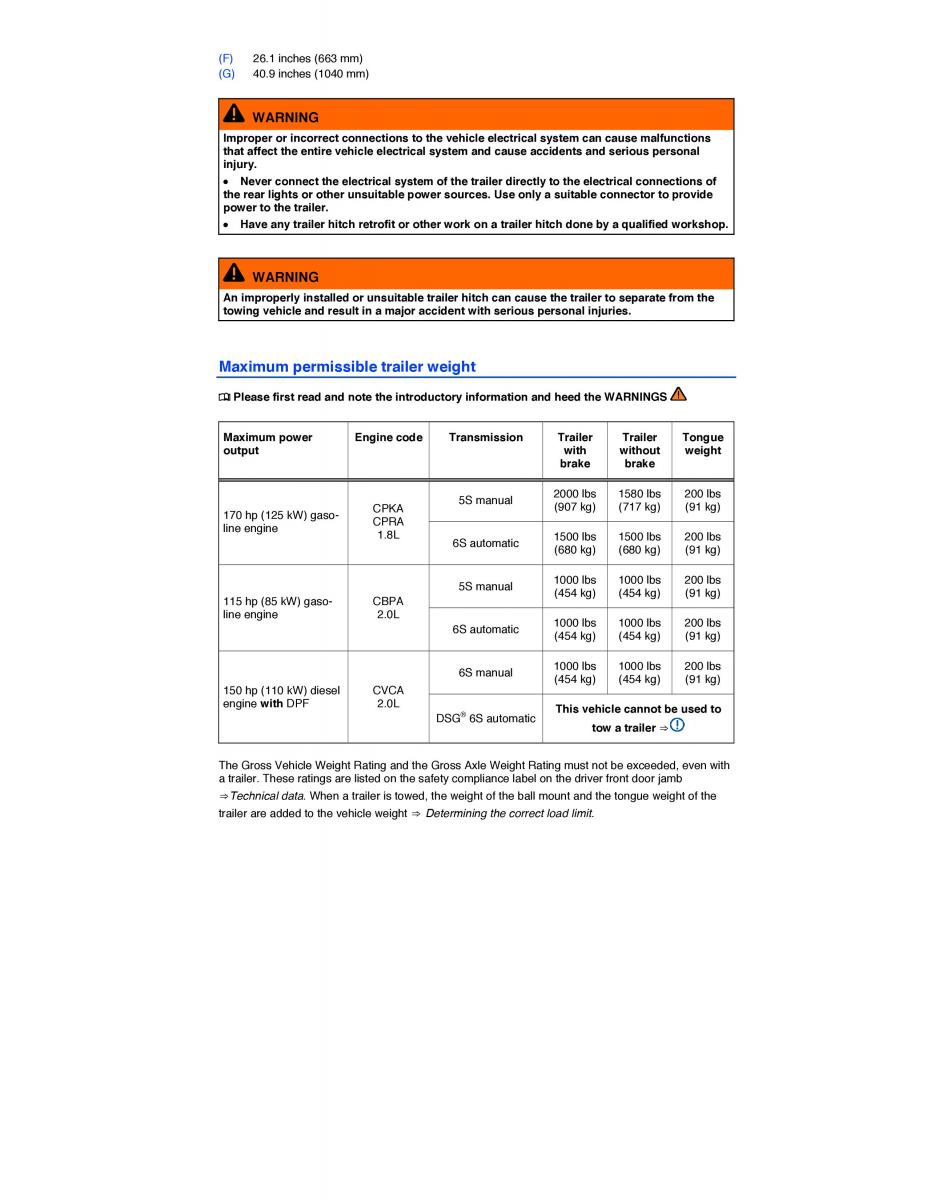

(F) 26.1 inches (663 mm) (G) 40.9 inches (1040 mm) WARNING Improper or incorrect connections to the vehicle electrical system can cause malfunctions that affect the entire vehicle electrical system and cause accidents and serious personal injury. x Never connect the electrical system of the trailer directly to the electrical connections of the rear lights or other unsuitable power sources. Use only a suitable connector to provide power to the trailer. x Have any trailer hitch retrofit or other work on a trailer hitch done by a qualified workhop. s WARNING An improperly installed or unsuitable trailer hitch can cause the trailer to separate from the towing vehicle and result in a major accident with serious personal injuries. Maximum permissible trailer weight ¤ Please first read and note the introductory information and heed the WARNINGS Maximum power Engine code Transmission Trailer Trailer Tongue output with without weight brake brake 5S manual 2000 lbs 1580 lbs 200 lbs 170 hp (125 kW) gaso- CPKA (907 kg) (717 kg) (91 kg) line engine CPRA 1.8L 6S automatic 1500 lbs 1500 lbs 200 lbs (680 kg) (680 kg) (91 kg) 5S manual 1000 lbs 1000 lbs 200 lbs 115 hp (85 kW) gaso- CBPA (454 kg) (454 kg) (91 kg) line engine 2.0L 1000 lbs 1000 lbs 200 lbs 6S automatic (454 kg) (454 kg) (91 kg) 6S manual 1000 lbs 1000 lbs 200 lbs 150 hp (110 kW) diesel CVCA (454 kg) (454 kg) (91 kg) engine with DPF 2.0L This vehicle cannot be used to ® DSG 6S automatic tow a trailer ⇒ The Gross Vehicle Weight Rating and the Gross Axle Weight Rating must not be exceeded, even with a trailer. These ratings are listed on the safety compliance label on the driver front door jamb ⇒Technical data. When a trailer is towed, the weight of the ball mount and the tongue weight of the trailer are added to the vehicle weight ⇒ Determining the correct load limit.
