from owners manual to the vehicle Mercedes S, year of production 1998 - 2005:
Instruments Operation Driving Instrument Practical hints Car care Technical Index
and controls cluster display data

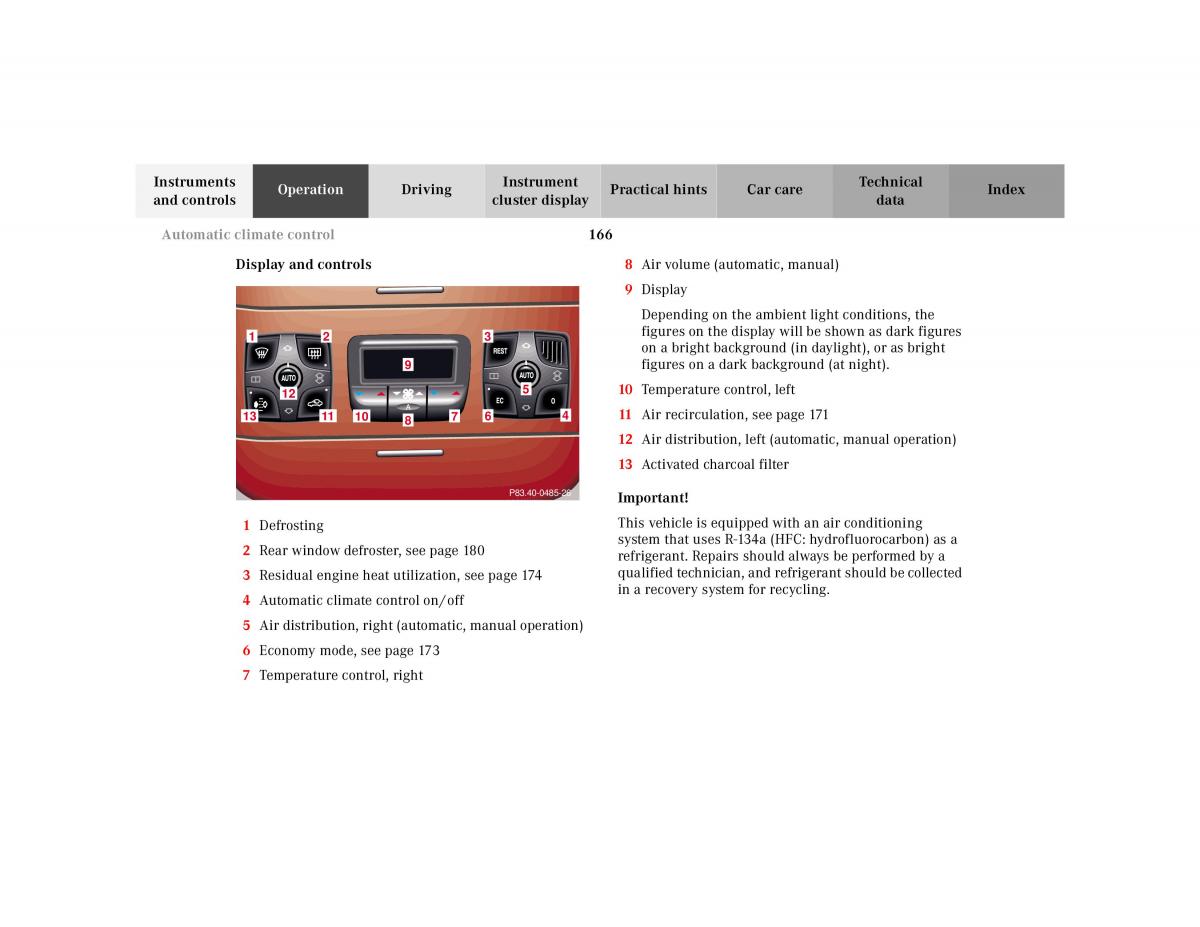

Automatic climate control 166
Display and controls 8 Air volume (automatic, manual)
9 Display
Depending on the ambient light conditions, the
1 2 3 figures on the display will be shown as dark figures
on a bright background (in daylight), or as bright
9 figures on a dark background (at night).
12 5 10 Temperature control, left
13 11 10 8 7 6 4 11 Air recirculation, see page 171
12 Air distribution, left (automatic, manual operation)
13 Activated charcoal filter
P83.40-0485-26 Important!
1 Defrosting This vehicle is equipped with an air conditioning
2 Rear window defroster, see page 180 system that uses R-134a (HFC: hydrofluorocarbon) as a
refrigerant. Repairs should always be performed by a
3 Residual engine heat utilization, see page 174 qualified technician, and refrigerant should be collected
4 Automatic climate control on/off in a recovery system for recycling.
5 Air distribution, right (automatic, manual operation)
6 Economy mode, see page 173
7 Temperature control, right
