from owners manual to the vehicle Mercedes S, year of production 1998 - 2005:

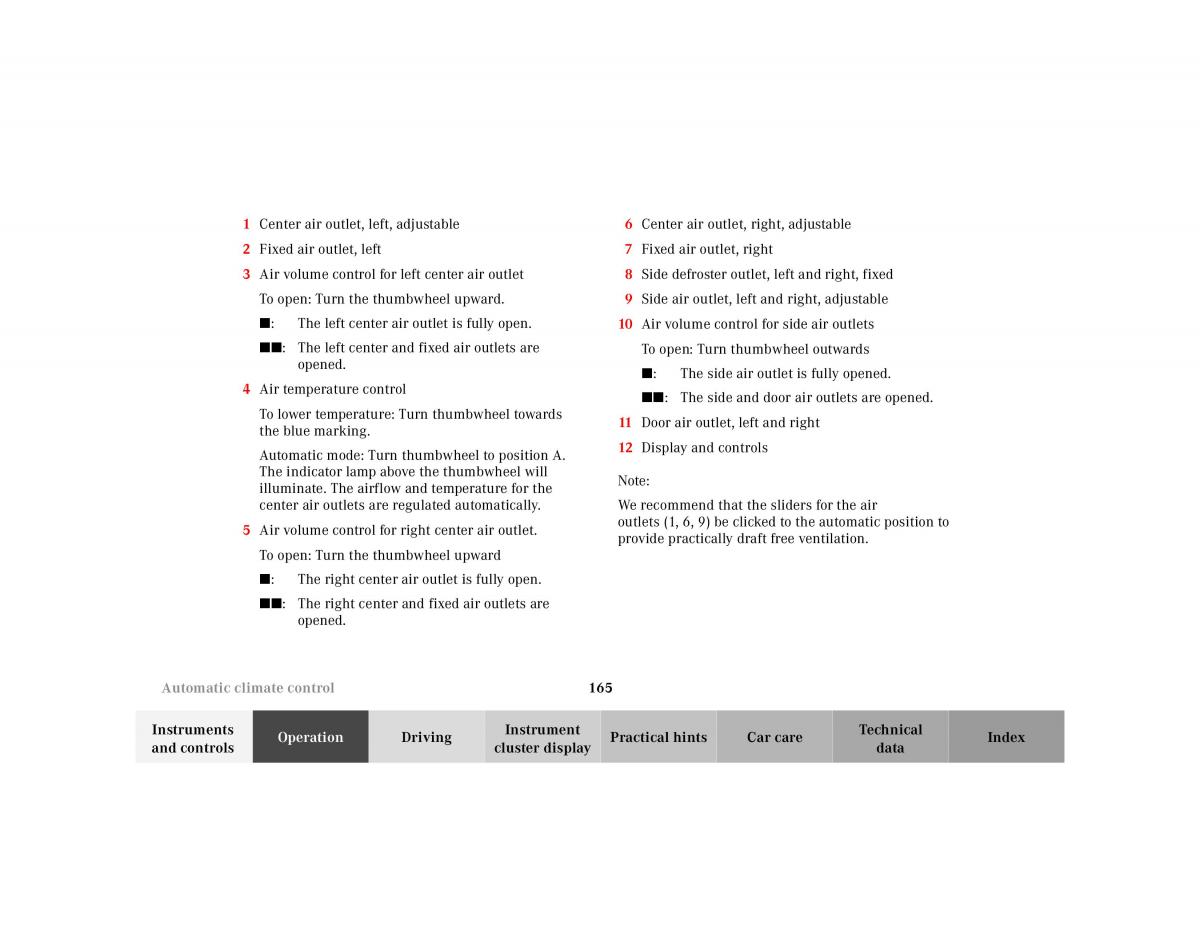

1 Center air outlet, left, adjustable6 Center air outlet, right, adjustable
2 Fixed air outlet, left 7 Fixed air outlet, right
3 Air volume control for left center air outlet8 Side defroster outlet, left and right, fixed
To open: Turn the thumbwheel upward.9 Side air outlet, left and right, adjustable
■: The left center air outlet is fully open.10 Air volume control for side air outlets
■■: The left center and fixed air outlets are To open: Turn thumbwheel outwards
opened. ■:The side air outlet is fully opened.
4 Air temperature control ■■: The side and door air outlets are opened.
To lower temperature: Turn thumbwheel towards 11Door air outlet, left and right
the blue marking.
Automatic mode: Turn thumbwheel to position A. 12 Display and controls
The indicator lamp above the thumbwheel will Note:
illuminate. The airflow and temperature for the
center air outlets are regulated automatically.We recommend that the sliders for the air
5 Air volume control for right center air outlet.outlets (1, 6, 9) be clicked to the automatic position to
provide practically draft free ventilation.
To open: Turn the thumbwheel upward
■: The right center air outlet is fully open.
■■: The right center and fixed air outlets are
opened.
Automatic climate control 165
Instruments OperationDrivingInstrument Practical hintsCar careTechnicalIndex
and controls cluster display data
