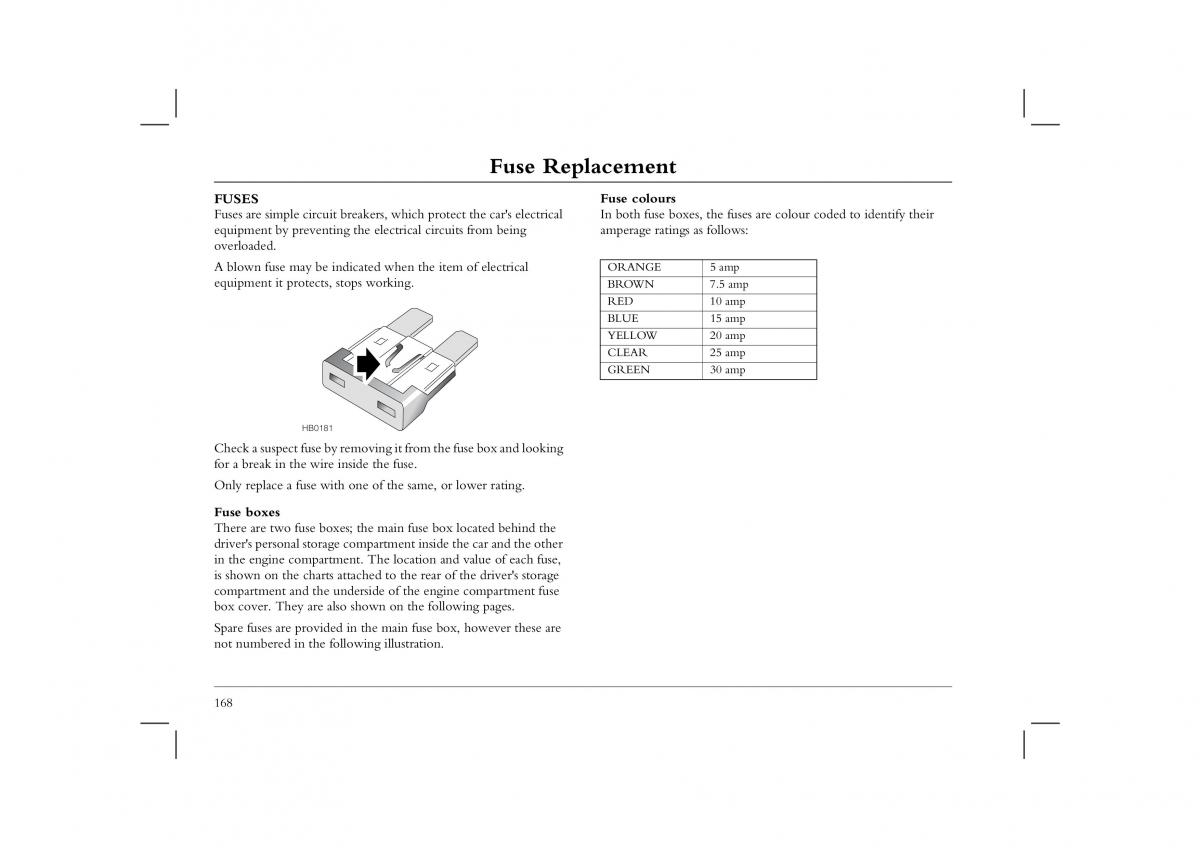

Fuse Replacement
Fuse Replacement Fuse colours
FUSES
Fuses are simple circuit breakers, which protect the car's electrical In both fuse boxes, the fuses are colour coded to identify their
equipment by preventing the electrical circuits from being amperage ratings as follows:
overloaded.
A blown fuse may be indicated when the item of electrical ORANGE 5 amp
equipment it protects, stops working. BROWN 7.5 amp
RED 10 amp
BLUE 15 amp
YELLOW 20 amp
CLEAR 25 amp
GREEN 30 amp
HB0181
Check a suspect fuse by removing it from the fuse box and looking
for a break in the wire inside the fuse.
Only replace a fuse with one of the same, or lower rating.
Fuse boxes
There are two fuse boxes; the main fuse box located behind the
driver's personal storage compartment inside the car and the other
in the engine compartment. The location and value of each fuse,
is shown on the charts attached to the rear of the driver's storage
compartment and the underside of the engine compartment fuse
box cover. They are also shown on the following pages.
Spare fuses are provided in the main fuse box, however these are
not numbered in the following illustration.
168
