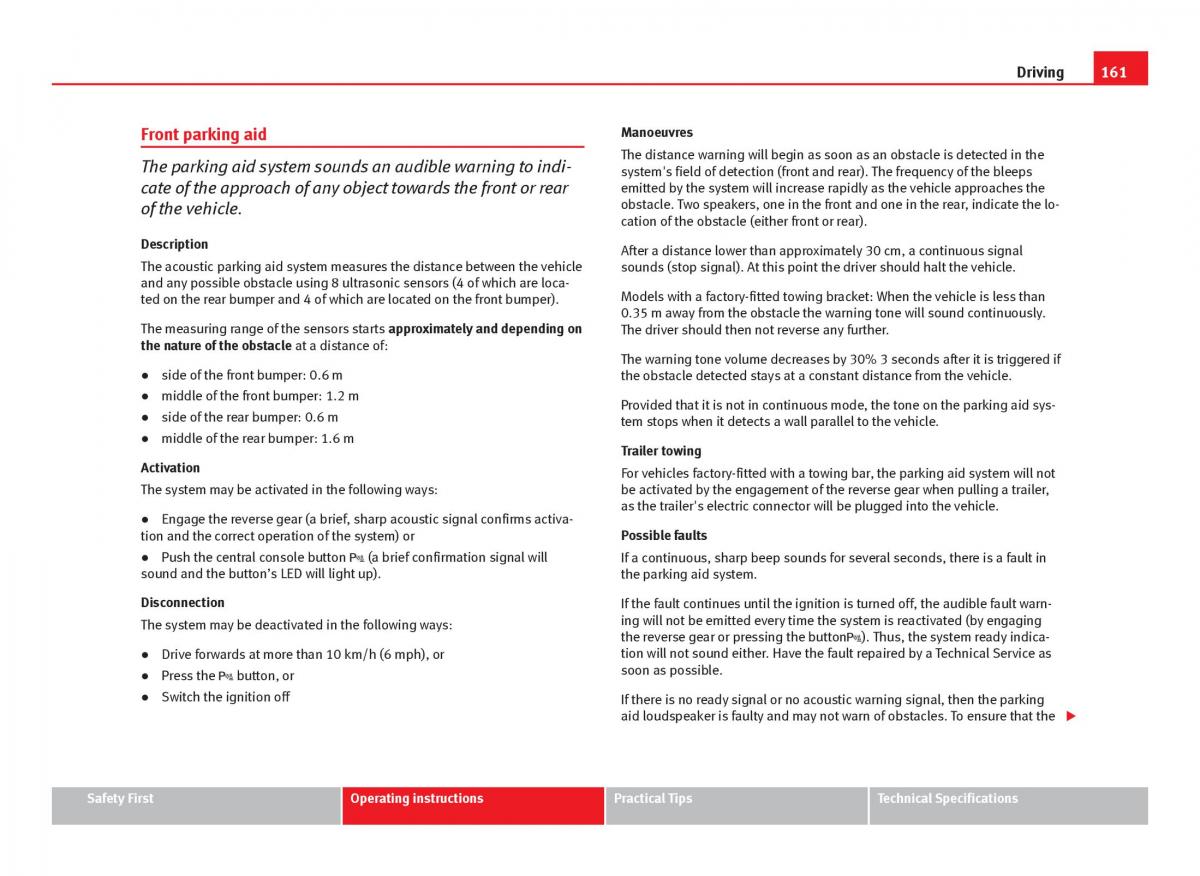

Driving161 Manoeuvres Front parking aid The distance warning will begin as soon as an obstacle is detected in the The parking aid system sounds an audible warning to indi- system's field of detection (front and rear). The frequency of the bleeps cate of the approach of any object towards the front or rearemitted by the system will increase rapidly as the vehicle approaches the obstacle. Two speakers, one in the front and one in the rear, indicate the lo- of the vehicle. cation of the obstacle (either front or rear). Description After a distance lower than approximately 30 cm, a continuous signal The acoustic parking aid system measures the distance between the vehiclesounds (stop signal). At this point the driver should halt the vehicle. and any possible obstacle using 8 ultrasonic sensors (4 of which are loca- Models with a factory-fitted towing bracket: When the vehicle is less than ted on the rear bumper and 4 of which are located on the front bumper). 0.35 m away from the obstacle the warning tone will sound continuously. The measuring range of the sensors starts approximately and depending onThe driver should then not reverse any further. the nature of the obstacle at a distance of: The warning tone volume decreases by 30% 3 seconds after it is triggered if ● side of the front bumper: 0.6 m the obstacle detected stays at a constant distance from the vehicle. ● middle of the front bumper: 1.2 m Provided that it is not in continuous mode, the tone on the parking aid sys- ● side of the rear bumper: 0.6 m tem stops when it detects a wall parallel to the vehicle. ● middle of the rear bumper: 1.6 m Trailer towing Activation For vehicles factory-fitted with a towing bar, the parking aid system will not The system may be activated in the following ways:be activated by the engagement of the reverse gear when pulling a trailer, as the trailer's electric connector will be plugged into the vehicle. ● Engage the reverse gear (a brief, sharp acoustic signal confirms activa- tion and the correct operation of the system) orPossible faults ● Push the central console button  (a brief confirmation signal willIf a continuous, sharp beep sounds for several seconds, there is a fault in sound and the button’s LED will light up).the parking aid system. Disconnection If the fault continues until the ignition is turned off, the audible fault warn- ing will not be emitted every time the system is reactivated (by engaging The system may be deactivated in the following ways: the reverse gear or pressing the button). Thus, the system ready indica- ● Drive forwards at more than 10 km/h (6 mph), ortion will not sound either. Have the fault repaired by a Technical Service as soon as possible. ● Press the  button, or ● Switch the ignition off If there is no ready signal or no acoustic warning signal, then the parking aid loudspeaker is faulty and may not warn of obstacles. To ensure that the  Safety First Operating instructionsPractical Tips Technical Specifications
