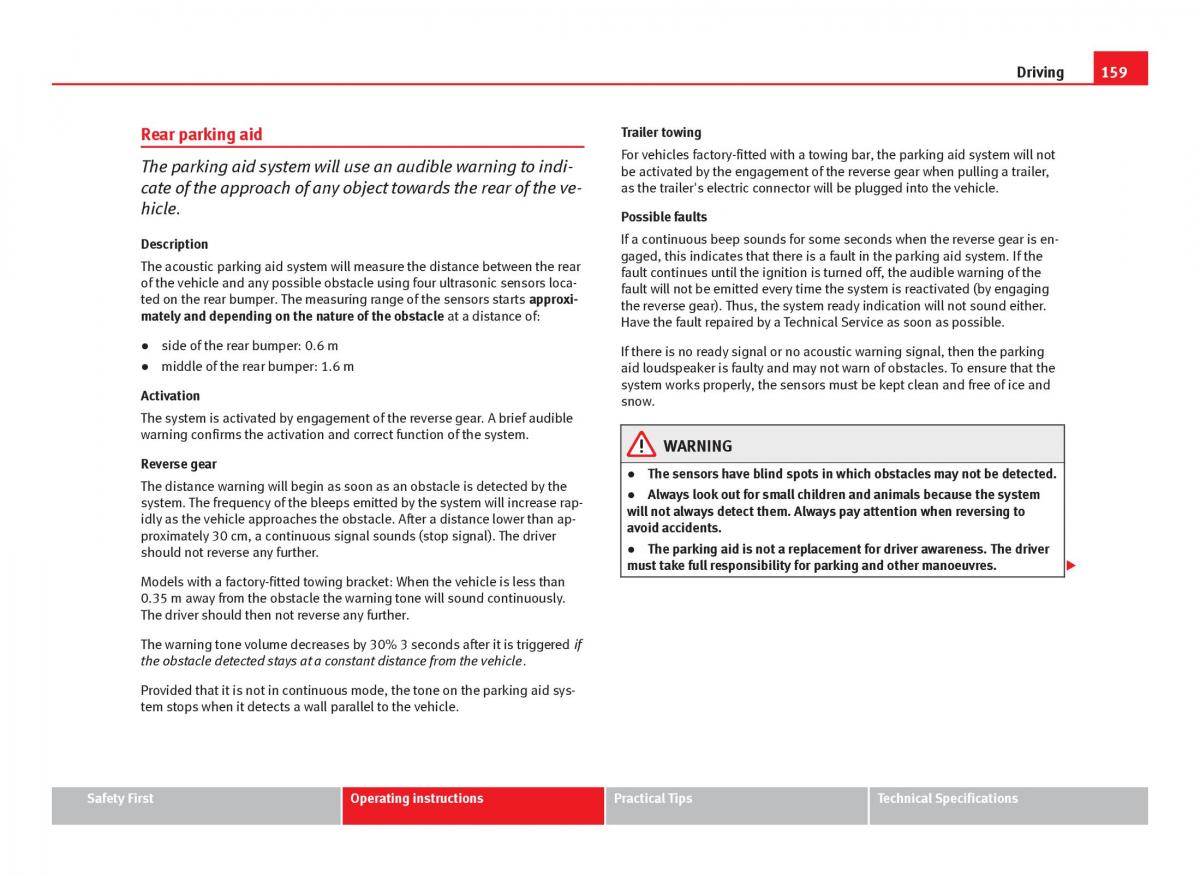

Driving159 Trailer towing Rear parking aid For vehicles factory-fitted with a towing bar, the parking aid system will not The parking aid system will use an audible warning to indi- be activated by the engagement of the reverse gear when pulling a trailer, cate of the approach of any object towards the rear of the ve-as the trailer's electric connector will be plugged into the vehicle. hicle. Possible faults If a continuous beep sounds for some seconds when the reverse gear is en- Description gaged, this indicates that there is a fault in the parking aid system. If the The acoustic parking aid system will measure the distance between the rear fault continues until the ignition is turned off, the audible warning of the of the vehicle and any possible obstacle using four ultrasonic sensors loca- fault will not be emitted every time the system is reactivated (by engaging ted on the rear bumper. The measuring range of the sensors starts approxi- the reverse gear). Thus, the system ready indication will not sound either. mately and depending on the nature of the obstacle at a distance of: Have the fault repaired by a Technical Service as soon as possible. ● side of the rear bumper: 0.6 m If there is no ready signal or no acoustic warning signal, then the parking ● middle of the rear bumper: 1.6 maid loudspeaker is faulty and may not warn of obstacles. To ensure that the system works properly, the sensors must be kept clean and free of ice and Activation snow. The system is activated by engagement of the reverse gear. A brief audible warning confirms the activation and correct function of the system. WARNING Reverse gear ● The sensors have blind spots in which obstacles may not be detected. The distance warning will begin as soon as an obstacle is detected by the ● Always look out for small children and animals because the system system. The frequency of the bleeps emitted by the system will increase rap- will not always detect them. Always pay attention when reversing to idly as the vehicle approaches the obstacle. After a distance lower than ap- avoid accidents. proximately 30 cm, a continuous signal sounds (stop signal). The driver ● The parking aid is not a replacement for driver awareness. The driver should not reverse any further. must take full responsibility for parking and other manoeuvres. Models with a factory-fitted towing bracket: When the vehicle is less than 0.35 m away from the obstacle the warning tone will sound continuously. The driver should then not reverse any further. The warning tone volume decreases by 30% 3 seconds after it is triggered if the obstacle detected stays at a constant distance from the vehicle. Provided that it is not in continuous mode, the tone on the parking aid sys- tem stops when it detects a wall parallel to the vehicle. Safety First Operating instructionsPractical Tips Technical Specifications
