owners manual Renault Trafic

owners manual Renault Trafic - year of production: 2014 - Renault Trafic III 3 owners manual EN

Document: pdf (6.72 MB) 292 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Renault Trafic, year of production 2014:

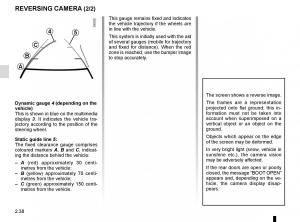

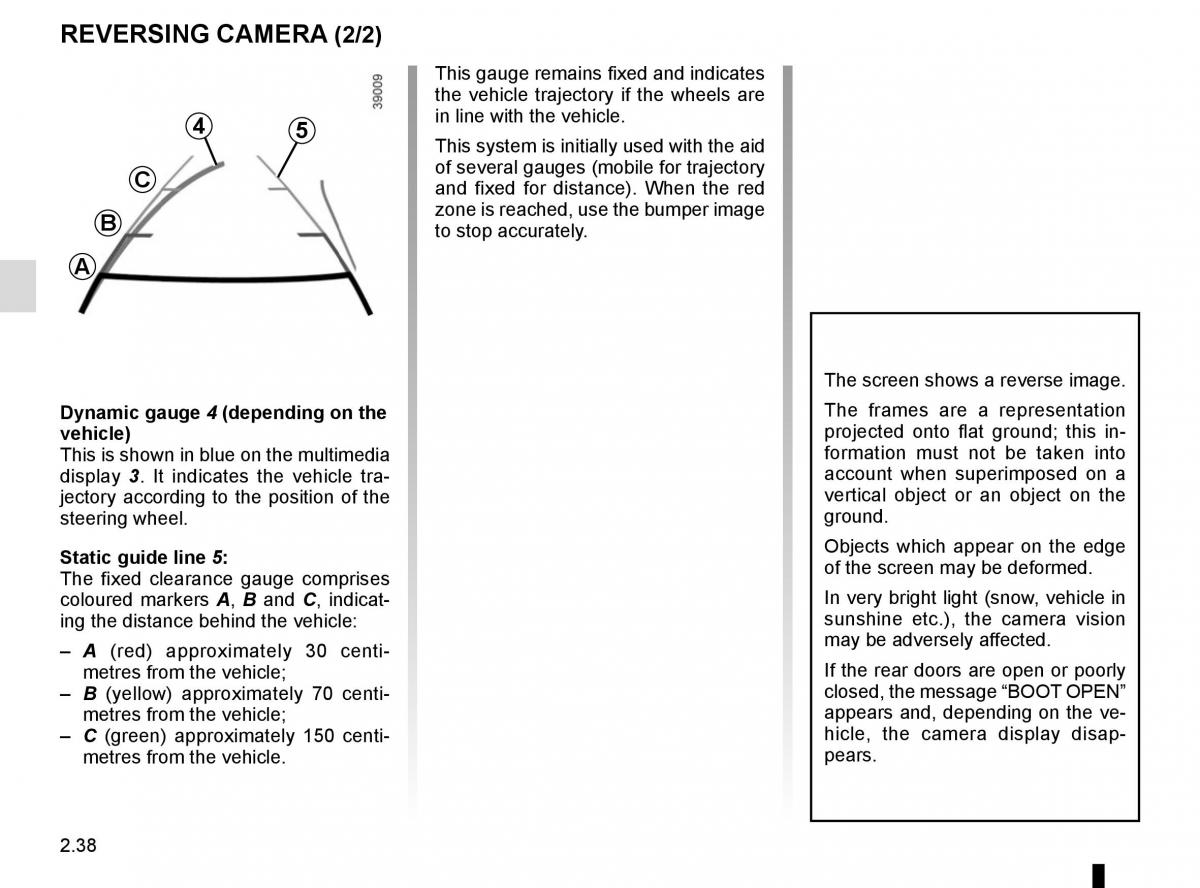

REVERSING CAMERA (2/2) This gauge remains fixed and indicates the vehicle trajectory if the wheels are 4 5 in line with the vehicle. This system is initially used with the aid C of several gauges (mobile for trajectory and fixed for distance). When the red B zone is reached, use the bumper image to stop accurately. A The screen shows a reverse image. Dynamic gauge 4 (depending on the The frames are a representation vehicle) projected onto flat ground; this in- This is shown in blue on the multimedia formation must not be taken into display 3. It indicates the vehicle tra- account when superimposed on a jectory according to the position of the vertical object or an object on the steering wheel. ground. Static guide line 5: Objects which appear on the edge The fixed clearance gauge comprises of the screen may be deformed. coloured markers A, B and C, indicat- In very bright light (snow, vehicle in ing the distance behind the vehicle: sunshine etc.), the camera vision may be adversely affected. – A (red) approximately 30 centi- metres from the vehicle; If the rear doors are open or poorly – B (yellow) approximately 70 centi- closed, the message “BOOT OPEN” metres from the vehicle; appears and, depending on the ve- – C (green) approximately 150 centi- hicle, the camera display disap- metres from the vehicle. pears. 2.38
