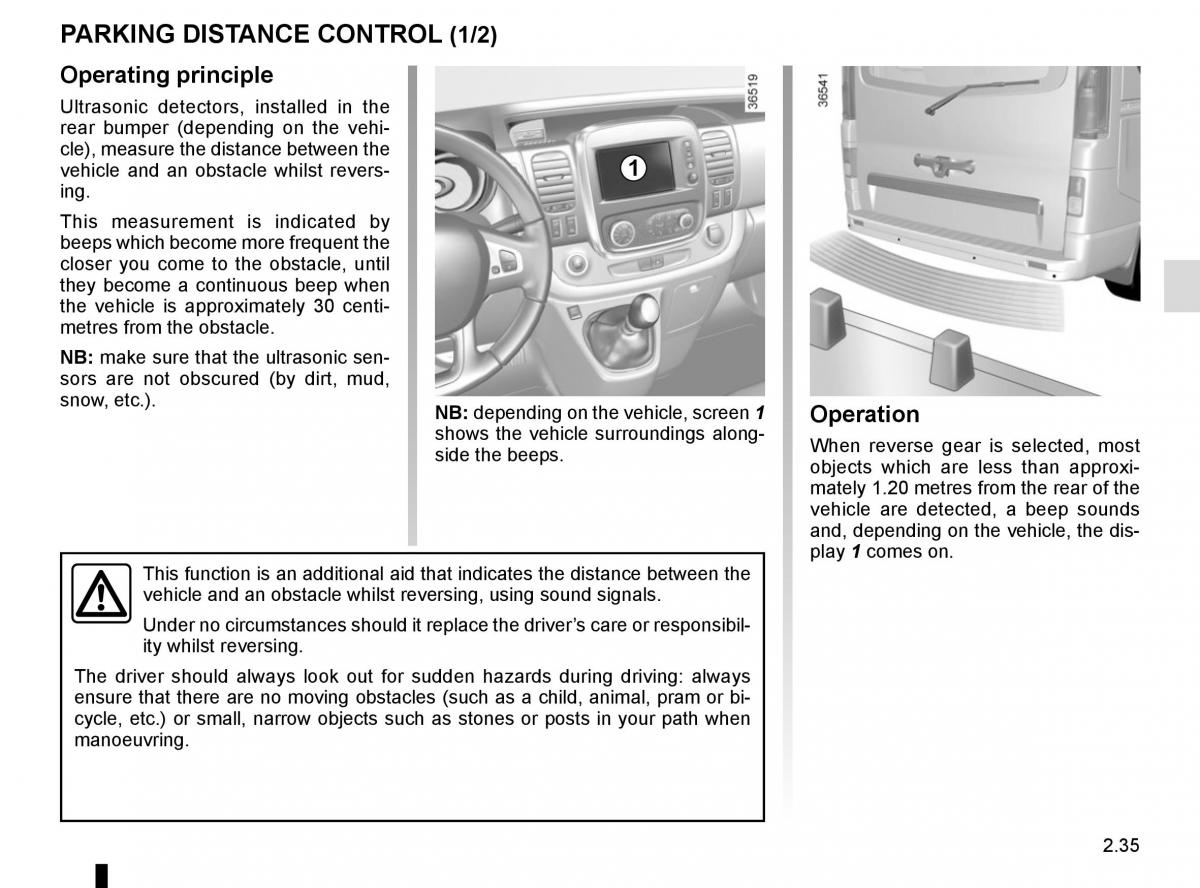

PARKING DISTANCE CONTROL (1/2) Operating principle Ultrasonic detectors, installed in the rear bumper (depending on the vehi- cle), measure the distance between the 1 vehicle and an obstacle whilst revers- ing. This measurement is indicated by beeps which become more frequent the closer you come to the obstacle, until they become a continuous beep when the vehicle is approximately 30 centi- metres from the obstacle. NB: make sure that the ultrasonic sen- sors are not obscured (by dirt, mud, snow, etc.). NB: depending on the vehicle, screen 1 Operation shows the vehicle surroundings along- side the beeps. When reverse gear is selected, most objects which are less than approxi- mately 1.20 metres from the rear of the vehicle are detected, a beep sounds and, depending on the vehicle, the dis- play 1 comes on. This function is an additional aid that indicates the distance between the vehicle and an obstacle whilst reversing, using sound signals. Under no circumstances should it replace the driver’s care or responsibil- ity whilst reversing. The driver should always look out for sudden hazards during driving: always ensure that there are no moving obstacles (such as a child, animal, pram or bi- cycle, etc.) or small, narrow objects such as stones or posts in your path when manoeuvring. 2.35
