135-164 Ypsilon GB 13-10-2008 11:42 Pagina 160

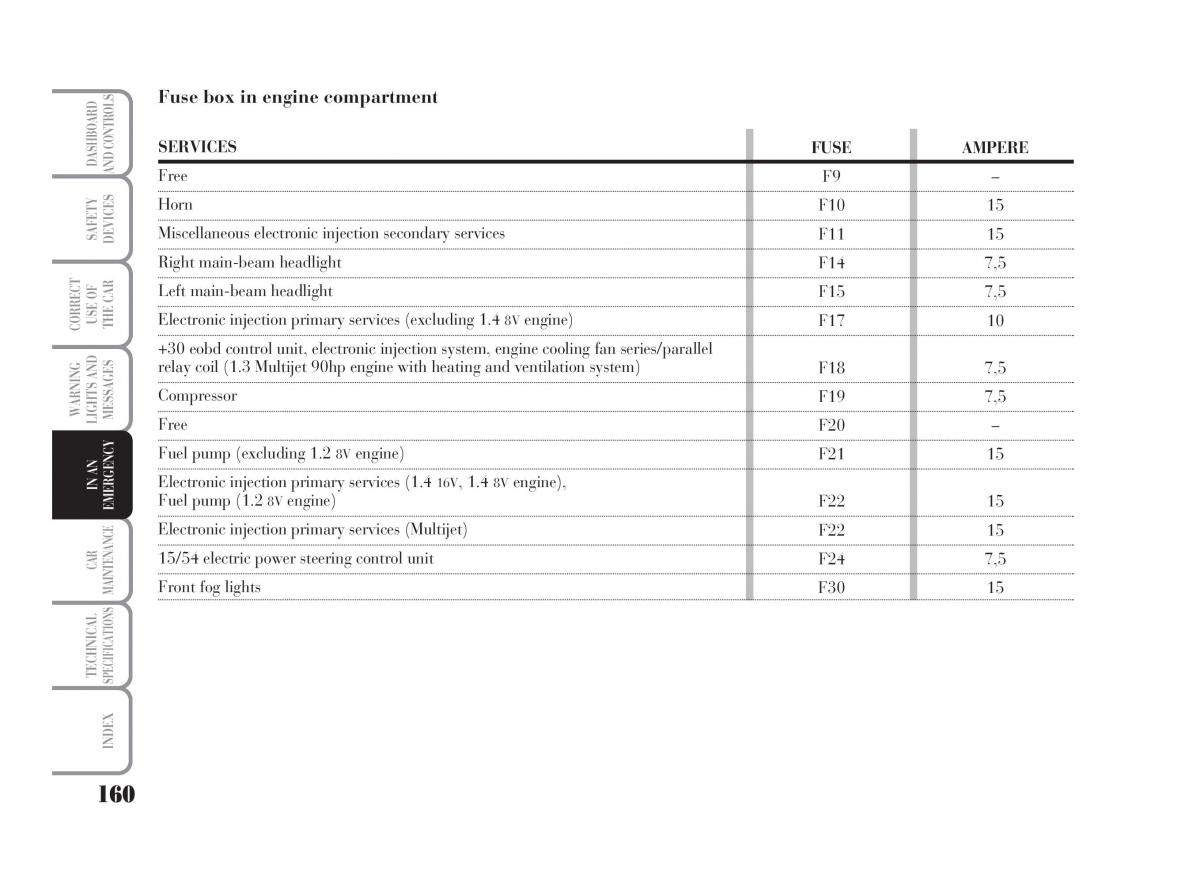

Fuse box in engine compartment
SERVICES FUSE AMPERE
DASHBOARDAND CONTROLSFree
F9 –
Horn F10 15
SAFETYDEVICESMiscellaneous electronic injection secondary services F11 15
Right main-beam headlight F14 7,5
Left main-beam headlight F15 7,5
CORRECTUSE OF THE CARElectronic injection primary services (excluding 1.4 8V engine)F17 10
+30 eobd control unit, electronic injection system, engine cooling fan series/parallel
relay coil (1.3 Multijet 90hp engine with heating and ventilation system)F18 7,5
Compressor F19 7,5
WARNINGLIGHTS ANDMESSAGESFree F20 –
Fuel pump (excluding 1.2 8V engine) F21 15
IN AN Electronic injection primary services (1.4 16V, 1.4 8V engine),
EMERGENCYFuel pump (1.2 8V engine) F22 15
Electronic injection primary services (Multijet) F22 15
CAR 15/54 electric power steering control unit F24 7,5
MAINTENANCEFront fog lights F30 15
TECHNICALSPECIFICATIONS
INDEX
160
