135-164 Ypsilon GB 13-10-2008 11:42 Pagina 159

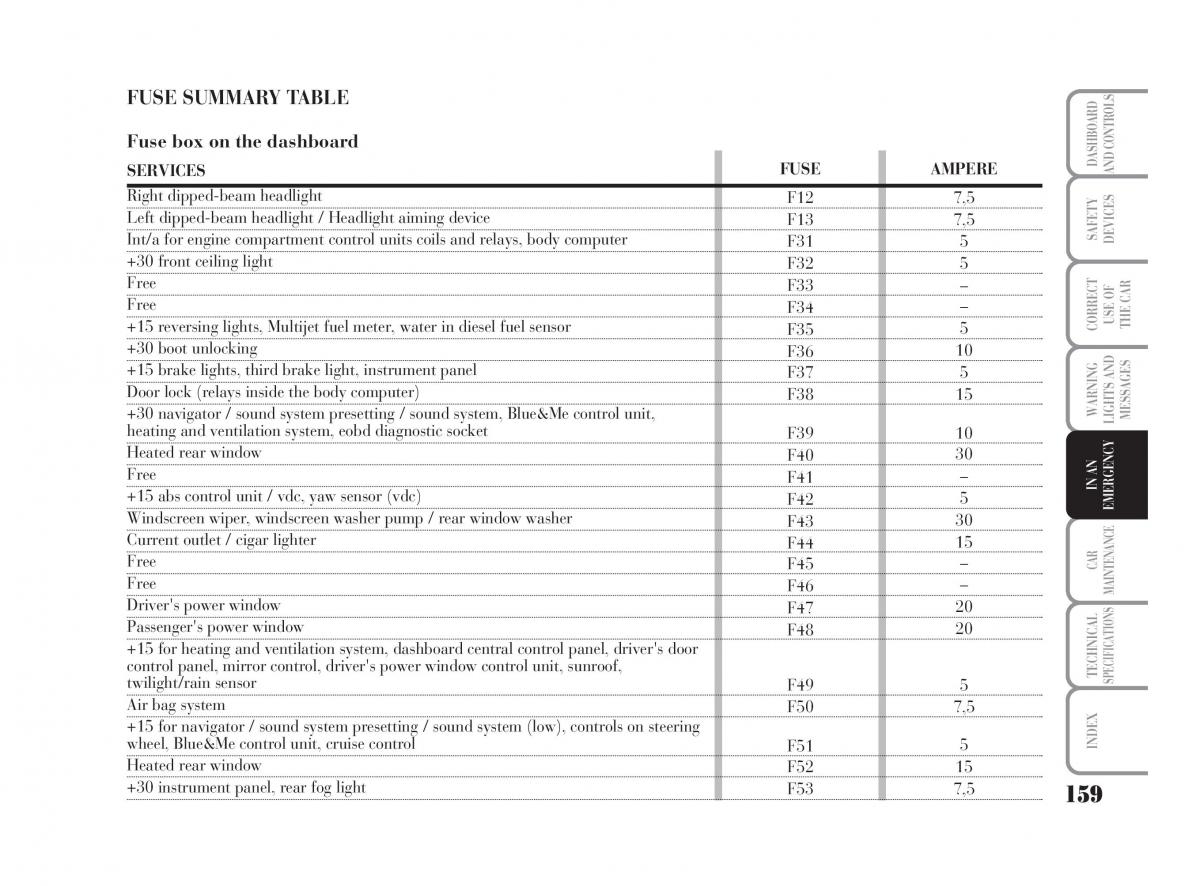

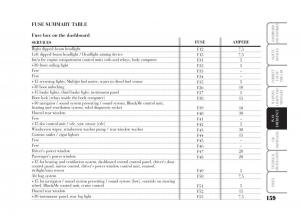

FUSE SUMMARY TABLE
Fuse box on the dashboard
SERVICES FUSE AMPERE DASHBOARDAND CONTROLS
Right dipped-beam headlight F12 7,5
Left dipped-beam headlight / Headlight aiming device F13 7,5
Int/a for engine compartment control units coils and relays, body computerF315 SAFETYDEVICES
+30 front ceiling light F32 5
Free F33 –
Free F34 –
+15 reversing lights, Multijet fuel meter, water in diesel fuel sensor F355 CORRECTUSE OF THE CAR
+30 boot unlocking F36 10
+15 brake lights, third brake light, instrument panel F37 5
Door lock (relays inside the body computer) F38 15
+30 navigator / sound system presetting / sound system, Blue&Me control unit, WARNINGLIGHTS ANDMESSAGES
heating and ventilation system, eobd diagnostic socketF39 10
Heated rear window F40 30
Free F41 –
+15 abs control unit / vdc, yaw sensor (vdc) 5 IN AN
F42 EMERGENCY
Windscreen wiper, windscreen washer pump / rear window washerF43 30
Current outlet / cigar lighter F44 15
Free F45 – CAR
Free F46 – MAINTENANCE
Driver's power window F47 20
Passenger's power window F48 20
+15 for heating and ventilation system, dashboard central control panel, driver's door
control panel, mirror control, driver's power window control unit, sunroof, TECHNICAL
twilight/rain sensor F49 5 SPECIFICATIONS
Air bag system F50 7,5
+15 for navigator / sound system presetting / sound system (low), controls on steering
wheel, Blue&Me control unit, cruise control F51 5 INDEX
Heated rear window F52 15
+30 instrument panel, rear fog light F53 7,5
159
