Retrofitting a trailer hitch

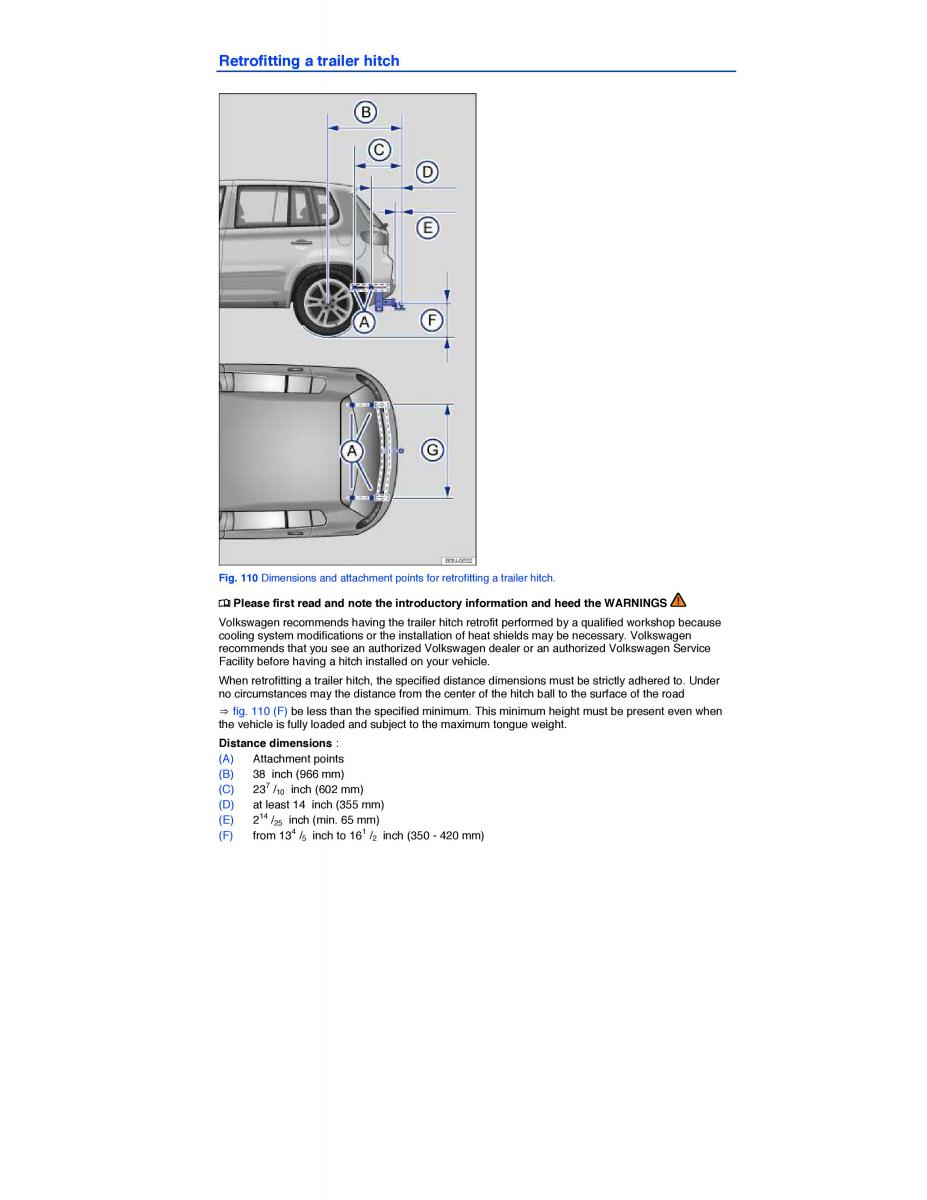

Fig. 110 Dimensions and attachment points for retrofitting a trailer hitch.
¤ Please first read and note the introductory information and heed the WARNINGS
Volkswagen recommends having the trailer hitch retrofit performed by a qualified workshop because
cooling system modifications or the installation of heat shields may be necessary. Volkswagen
recommends that you see an authorized Volkswagen dealer or an authorized Volkswagen Service
Facility before having a hitch installed on your vehicle.
When retrofitting a trailer hitch, the specified distance dimensions must be strictly adhered to. Under
no circumstances may the distance from the center of the hitch ball to the surface of the road
⇒ fig. 110 (F) be less than the specified minimum. This minimum height must be present even when
the vehicle is fully loaded and subject to the maximum tongue weight.
Distance dimensions :
(A) Attachment points
(B) 38 inch (966 mm)
7
(C) 2 /3 inch (602 mm)
10
(D) at least 14 inch (355 mm)
14
(E) 2 / inch (min. 65 mm)
25 4 1
(F) from 1 /3 inch to 16 / inch (350 - 420 mm)
5 2
