owners manual Seat Leon

all ratings: 0 average rating: 5

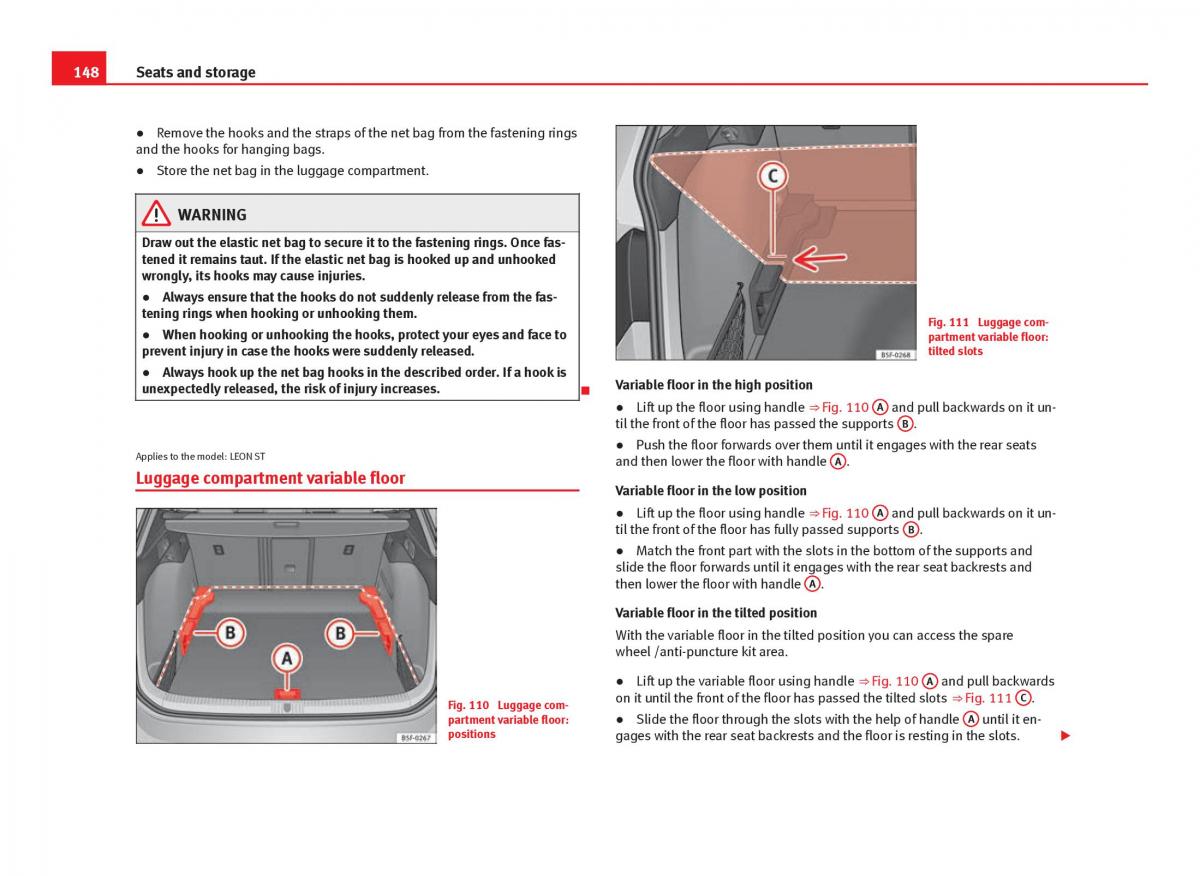

148 Seats and storage ● Remove the hooks and the straps of the net bag from the fastening rings and the hooks for hanging bags. ● Store the net bag in the luggage compartment. WARNING Draw out the elastic net bag to secure it to the fastening rings. Once fas- tened it remains taut. If the elastic net bag is hooked up and unhooked wrongly, its hooks may cause injuries. ● Always ensure that the hooks do not suddenly release from the fas- tening rings when hooking or unhooking them. Fig. 111 Luggage com- ● When hooking or unhooking the hooks, protect your eyes and face to partment variable floor: prevent injury in case the hooks were suddenly released. tilted slots ● Always hook up the net bag hooks in the described order. If a hook is Variable floor in the high position unexpectedly released, the risk of injury increases.  ● Lift up the floor using handle ⇒ Fig. 110 A and pull backwards on it un- til the front of the floor has passed the supports B . ● Push the floor forwards over them until it engages with the rear seats Applies to the model: LEON ST and then lower the floor with handle A . Luggage compartment variable floor Variable floor in the low position ● Lift up the floor using handle ⇒ Fig. 110 A and pull backwards on it un- til the front of the floor has fully passed supports B . ● Match the front part with the slots in the bottom of the supports and slide the floor forwards until it engages with the rear seat backrests and then lower the floor with handle A . Variable floor in the tilted position With the variable floor in the tilted position you can access the spare wheel /anti-puncture kit area. ● Lift up the variable floor using handle Fig. 110 A ⇒  and pull backwards on it until the front of the floor has passed the tilted slots ⇒ Fig. 111 C . Fig. 110 Luggage com- partment variable floor:● Slide the floor through the slots with the help of handle A until it en- positions gages with the rear seat backrests and the floor is resting in the slots.
