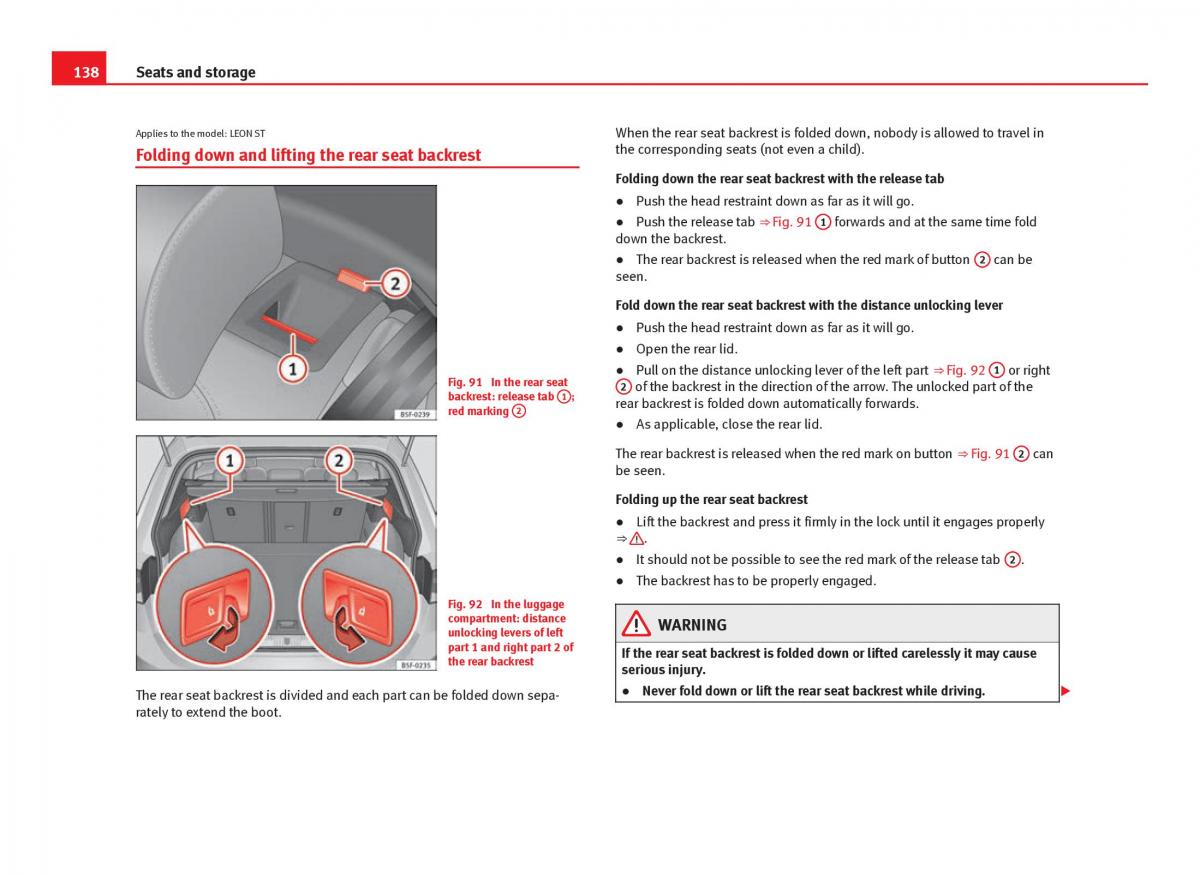

138 Seats and storage Applies to the model: LEON ST When the rear seat backrest is folded down, nobody is allowed to travel in the corresponding seats (not even a child). Folding down and lifting the rear seat backrest Folding down the rear seat backrest with the release tab ● Push the head restraint down as far as it will go. ● Push the release tab ⇒ Fig. 91 1 forwards and at the same time fold down the backrest. ● The rear backrest is released when the red mark of button 2 can be seen. Fold down the rear seat backrest with the distance unlocking lever ● Push the head restraint down as far as it will go. ● Open the rear lid. ● Pull on the distance unlocking lever of the left part ⇒ Fig. 92 1 or right Fig. 91 In the rear seat 2 of the backrest in the direction of the arrow. The unlocked part of the backrest: release tab 1 ; rear backrest is folded down automatically forwards. red marking 2 ● As applicable, close the rear lid. The rear backrest is released when the red mark on button ⇒ Fig. 91 2 can be seen. Folding up the rear seat backrest ● Lift the backrest and press it firmly in the lock until it engages properly ⇒  . ● It should not be possible to see the red mark of the release tab 2 . ● The backrest has to be properly engaged. Fig. 92 In the luggage compartment: distance WARNING unlocking levers of left part 1 and right part 2 of If the rear seat backrest is folded down or lifted carelessly it may cause the rear backrest serious injury. ● Never fold down or lift the rear seat backrest while driving. The rear seat backrest is divided and each part can be folded down sepa- rately to extend the boot.
