text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

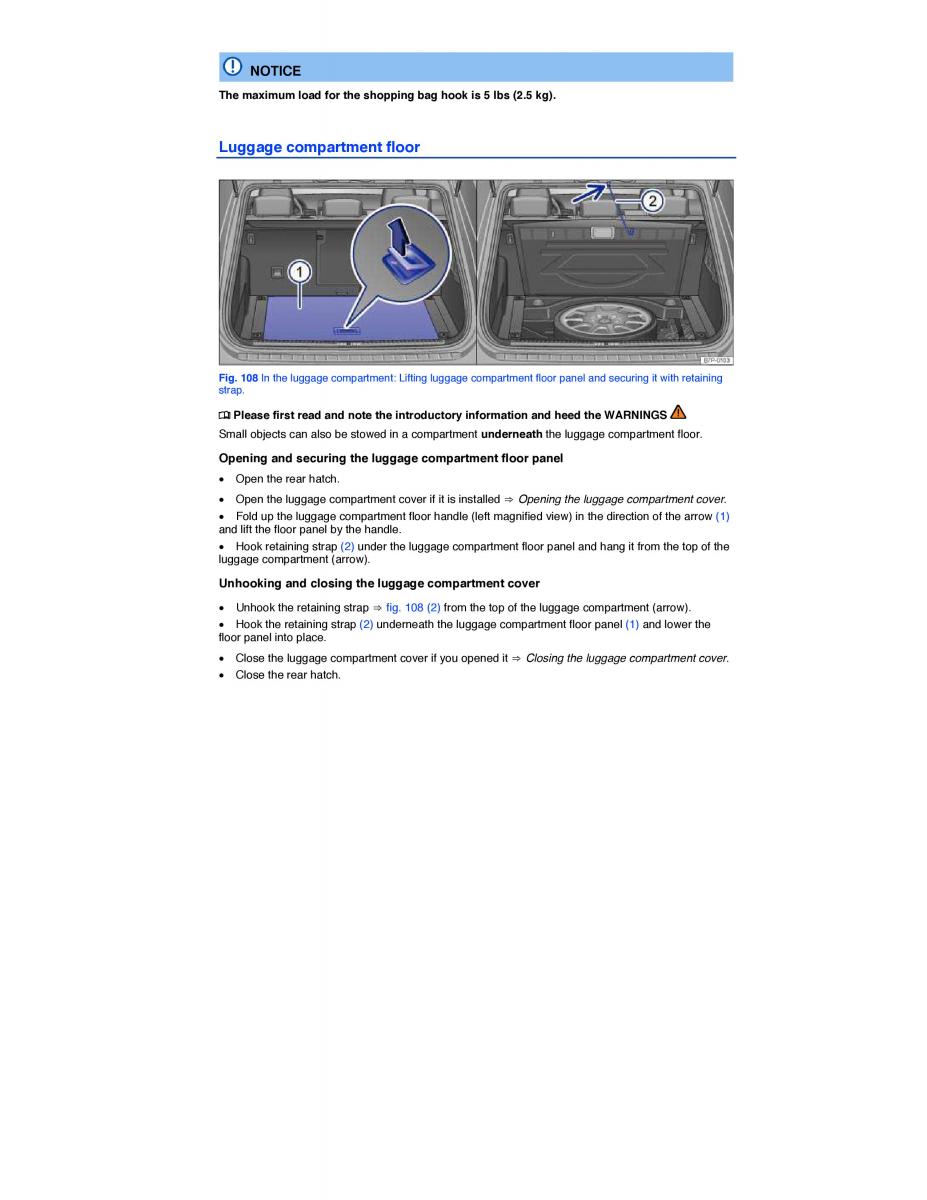

NOTICE The maximum load for the shopping bag hook is 5 lbs (2.5 kg). Luggage compartment floor Fig. 108 In the luggage compartment: Lifting luggage compartment floor panel and securing it with retaining strap. ¤ Please first read and note the introductory information and heed the WARNINGS Small objects can also be stowed in a compartment underneath the luggage compartment floor. Opening and securing the luggage compartment floor panel x Open the rear hatch. x Open the luggage compartment cover if it is installed⇒ Opening the luggage compartment cover. x Fold up the luggage compartment floor handle (left magnified view) in the direction of the arrow(1) and lift the floor panel by the handle. x Hook retaining strap(2) under the luggage compartment floor panel and hang it from the top of the luggage compartment (arrow). Unhooking and closing the luggage compartment cover x Unhook the retaining strap⇒ fig. 108 (2) from the top of the luggage compartment (arrow). x Hook the retaining strap(2 ) underneath the luggage compartment floor panel (1) and lower the floor panel into place. x Close the luggage compartment cover if you opened ⇒it Closing the luggage compartment cover. x Close the rear hatch.
