text version of content this owner's manual page from owners manual to the vehicle Skoda Superb, year of production 2001 - 2008:

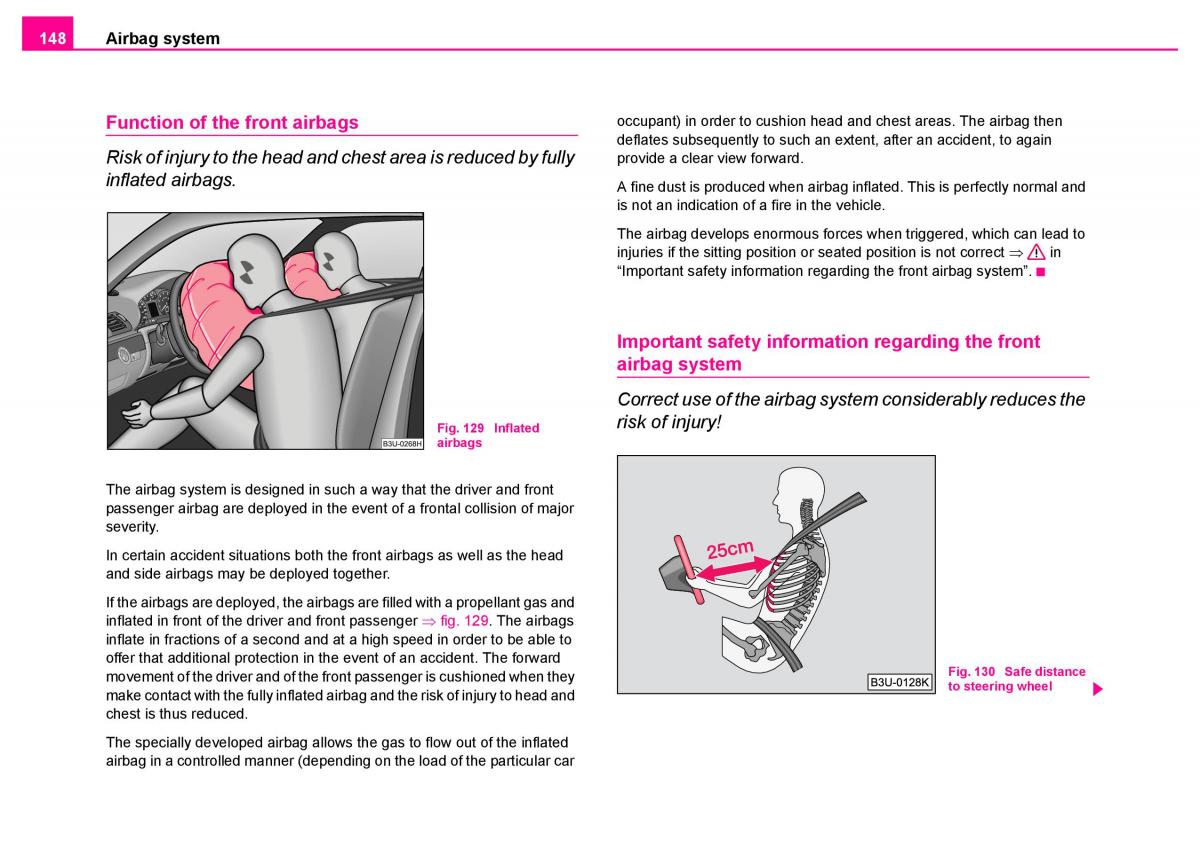

148 Airbag system Function of the front airbags occupant) in order to cushion head and chest areas. The airbag then deflates subsequently to such an extent, after an accident, to again Risk of injury to the head and chest area is reduced by fully provide a clear view forward. inflated airbags. A fine dust is produced when airbag inflated. This is perfectly normal and is not an indication of a fire in the vehicle. The airbag develops enormous forces when triggered, which can lead to injuries if the sitting position or seated position is not correct ⇒ in “Important safety information regarding the front airbag system”. Important safety information regarding the front airbag system Correct use of the airbag system considerably reduces the Fig. 129 Inflated risk of injury! airbags The airbag system is designed in such a way that the driver and front passenger airbag are deployed in the event of a frontal collision of major severity. In certain accident situations both the front airbags as well as the head and side airbags may be deployed together. If the airbags are deployed, the airbags are filled with a propellant gas and inflated in front of the driver and front passenger ⇒ fig. 129. The airbags inflate in fractions of a second and at a high speed in order to be able to offer that additional protection in the event of an accident. The forward Fig. 130 Safe distance movement of the driver and of the front passenger is cushioned when they to steering wheel make contact with the fully inflated airbag and the risk of injury to head and chest is thus reduced. The specially developed airbag allows the gas to flow out of the inflated airbag in a controlled manner (depending on the load of the particular car
