text version of content this owner's manual page from owners manual to the vehicle Skoda Superb, year of production 2001 - 2008:

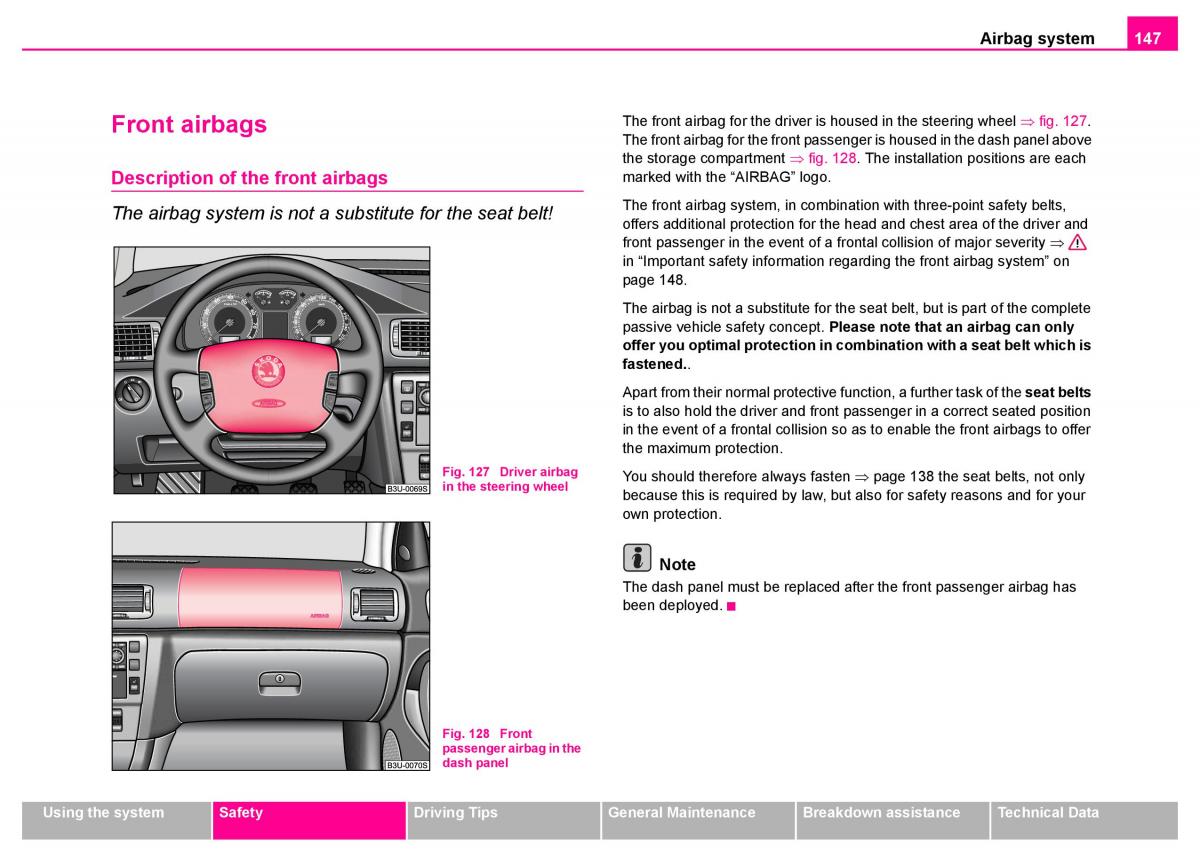

Airbag system147 Front airbags The front airbag for the driver is housed in the steering wheel ⇒ fig. 127. The front airbag for the front passenger is housed in the dash panel above the storage compartment ⇒ fig. 128. The installation positions are each Description of the front airbags marked with the “AIRBAG” logo. The airbag system is not a substitute for the seat belt!The front airbag system, in combination with three-point safety belts, offers additional protection for the head and chest area of the driver and front passenger in the event of a frontal collision of major severity ⇒ in “Important safety information regarding the front airbag system” on page148. The airbag is not a substitute for the seat belt, but is part of the complete passive vehicle safety concept. Please note that an airbag can only offer you optimal protection in combination with a seat belt which is fastened Apart from their normal protective function, a further task of the seat belts is to also hold the driver and front passenger in a correct seated position in the event of a frontal collision so as to enable the front airbags to offer the maximum protection. Fig. 127 Driver airbag You should therefore always fasten ⇒ page 138 the seat belts, not only in the steering wheelbecause this is required by law, but also for safety reasons and for your own protection. Note The dash panel must be replaced after the front passenger airbag has been deployed. Fig. 128 Front passenger airbag in the dash panel Using the systemSafety Driving Tips General MaintenanceBreakdown assistanceTechnical Data
